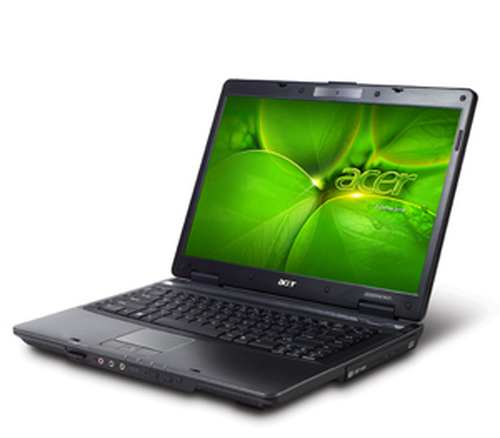

Acer Extensa 5620-5B3G32Mi

Model Extensa 5620-5B3G32MiPart no. LX.E540C.088

110 specifications Checked 2 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory3 GB
Storage320 GB
GraphicsIntel® GMA X3100

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 3 GB
Storage: 320 GB
Graphics: Intel® GMA X3100

Brand: Acer
Category: Laptop
Model: Extensa 5620-5B3G32Mi
Part numbers: LX.E540C.088, LX.E540X.102, LX.E540Z.044
Also known as: Acer Extensa 5620-5B3G32Mi Intel® Core™2 Duo T5670 39.1 cm (15.4") 3 GB DDR2-SDRAM 320 GB Intel® GMA X3100 Linux

Specifications

110 specifications in 18 groups

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Display surface	Gloss
Display response rise/fall	16 ms

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T5670
Processor cores	2
Processor threads	2
Processor frequency	1.8 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	LGA 3647 (Socket P)
Processor lithography	65 nm
Processor operating modes	64-bit
Processor codename	Merom
Bus type	FSB
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	9

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA X3100

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2
Audio system direct 3D sound	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	IEEE 802.11a/b/g
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Line-in	Yes
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® PM965 Express

Keyboard

Specification	Value
Pointing device	Touchpad + Scroll zone
Numeric keypad	Yes
Hot keys	Yes
Number of keyboard cursor keys	4
Keyboard function keys	12
Keyboard special features	Yes

Software

Specification	Value
Operating system installed	Linux
Downloadable software	-DMI 2.0, -ACPI 3.0, -Mobile PC 2002, -Wi-Fi, Cisco Compatible Extensions (CCX).
Bundled software	-Acer Empowering Technology (Acer eNet, ePower, ePresentation, eDataSecurity, eLock, eRecovery, eSettings, ePerformance Management), -Acer GridVista, -Acer Launch Manager, -Acer Video Conference Manager -Adobe Reader, -Cyberlink PowerDVD, -Microsoft Office Ready 2007, -NTI CD Maker / NTI Shadow.

Processor special features

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	No
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	35163
Processor code	SLAJ5
Processor package size	35 x 35 mm

Battery

Specification	Value
Number of battery cells	6
Battery life (max)	2.5 h
Battery recharge time (off)	2.5 h
Battery recharge time (on)	3 h

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS

Weight & dimensions

Specification	Value
Weight	2.88 kg
Width	360 mm
Depth	267 mm
Height (front)	3.03 cm
Height (rear)	4.3 cm
Dimensions (WxDxH)	360 x 267 x 30.3 mm

Other features

Specification	Value
Infrared data port	Yes
Wake-on-LAN ready	Yes
Wake-on-Ring ready	Yes
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	ITU V.92
Supplied AC adapter type	AC
