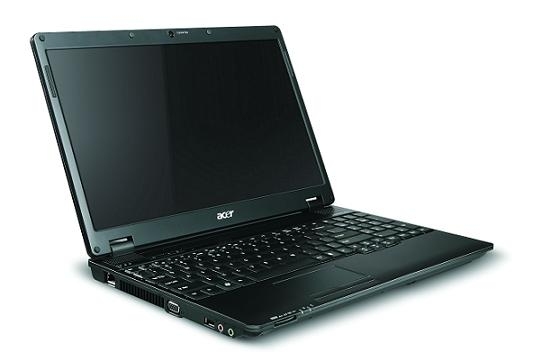

Acer Extensa 5235-571G16MN

Model Extensa 5235-571G16MNPart no. LX.EDP0C.069

124 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Celeron® M
Memory1 GB
Storage160 GB
GraphicsIntel® GMA 4500M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Celeron® M
Memory: 1 GB
Storage: 160 GB
Graphics: Intel® GMA 4500M

Brand: Acer
Category: Laptop
Model: Extensa 5235-571G16MN
Part numbers: LX.EDP0C.069, LX.EDP0Y.080
Also known as: Acer Extensa 5235-571G16MN Intel® Celeron® M 575 39.6 cm (15.6") 1 GB DDR2-SDRAM 160 GB Intel® GMA 4500M Linux

Specifications

124 specifications in 19 groups

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Display brightness	220 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron® M
Processor model	575
Processor cores	1
Processor threads	1
Processor frequency	2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor 500 Series for Mobile
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	31 W
Tcase	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	12
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 1 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	160 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500M
Discrete graphics card memory	0.0625 GB
Maximum graphics card memory	1.759 GB

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	802.11 b/g
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GL40 Express

Software

Specification	Value
Operating system installed	Linux

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	36680
Processor code	SLB6M
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4400 mAh
Battery capacity	48.8 Wh
Battery life (max)	2 h

Power

Specification	Value
AC adapter power	65 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Certificates

Specification	Value
Certification	-ACPI 3.0, -Mobile PC 2002, -DMI 2.0, -Wi-Fi.

Weight & dimensions

Specification	Value
Weight	2.5 kg
Width	370 mm
Depth	243.5 mm
Height (front)	2.4 cm
Height (rear)	3.5 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Wake-on-LAN ready	Yes
Internal modem	No
Supplied AC adapter type	AC
