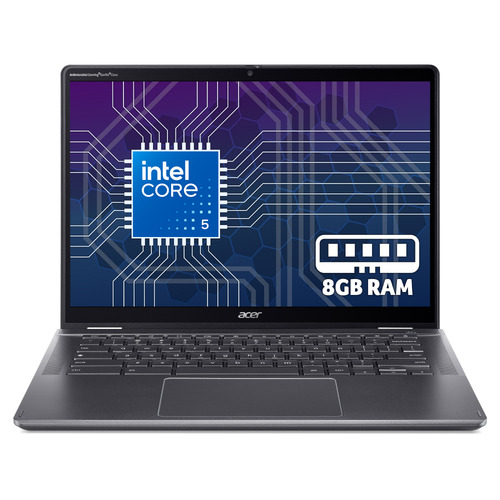

CB514SPN I5-120U 8/256 TCH CHR
Model CB514SPN I5-120U 8/256 TCH CHRPart no. NX.KWFEK.003EAN 4711721146798
69 specifications Checked today
- Display35.6 cm (14")
- Resolution1920 x 1200 pixels
- ProcessorIntel Core 5
- Memory8 GB
- Storage256 GB
- GraphicsNot available
Overview
- Display
- 35.6 cm (14")
- Resolution
- 1920 x 1200 pixels
- Processor
- Intel Core 5
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Brand
- Acer
- Category
- Laptop
- Model
- CB514SPN I5-120U 8/256 TCH CHR
- Part number
- NX.KWFEK.003
- EAN / UPC
- 4711721146798
- Also known as
- Acer Chromebook Enterprise 514 Plus Spin 514 convertible (CPE594-1N) - Intel Core 5, 8GB RAM, 256GB SSD, 14" WUXGA touchscreen, Chrome OS
Specifications
69 specifications in 19 groups
Design
| Specification | Value |
|---|---|
| Product type | Chromebook |
| Form factor | Convertible (Fold-back screen) |
Display
| Specification | Value |
|---|---|
| Display diagonal | 35.6 cm (14") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| HD type | WUXGA |
| Display technology marketing name | CineCrystal |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Display glass type | Gorilla Glass |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core 5 |
| Processor model | 120U |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Copilot+ PC | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
| Number of microphones | 2 |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | Quad HD |
| Front camera resolution | 2560 x 1440 pixels |
| Video capturing speed | 30 fps |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Specification | Value |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Charging port type | USB Type-C |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | ChromeOS |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 53 Wh |
Power
| Specification | Value |
|---|---|
| USB Type-C charging port | Yes |
| USB Type-C required charging power (max) | 65 W |
| USB Type-C required charging power (min) | 65 W |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.45 kg |
| Width | 319.9 mm |
| Depth | 229.9 mm |
| Height | 20.9 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | No |
