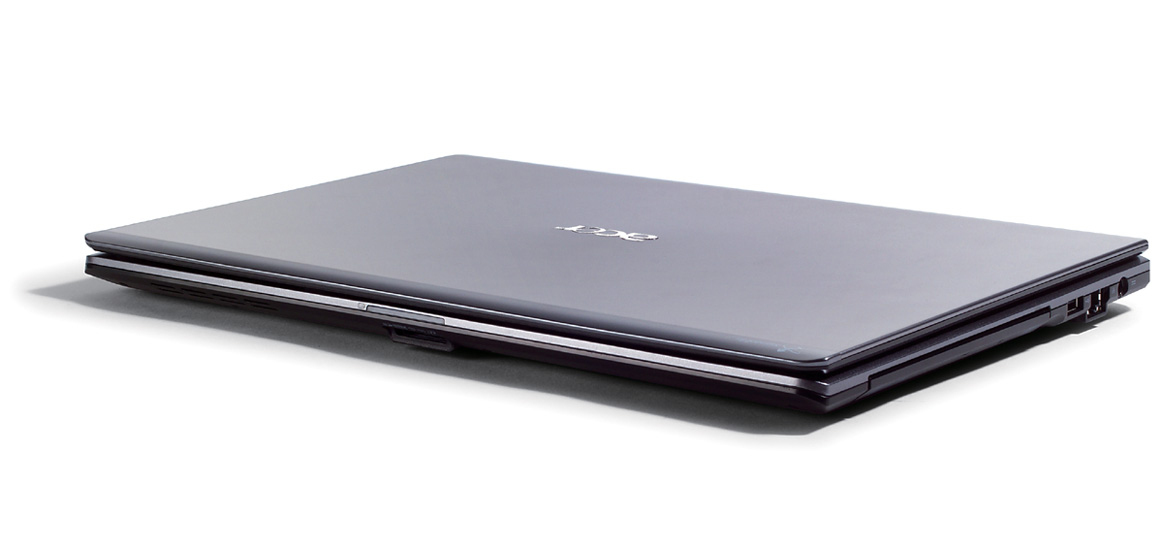

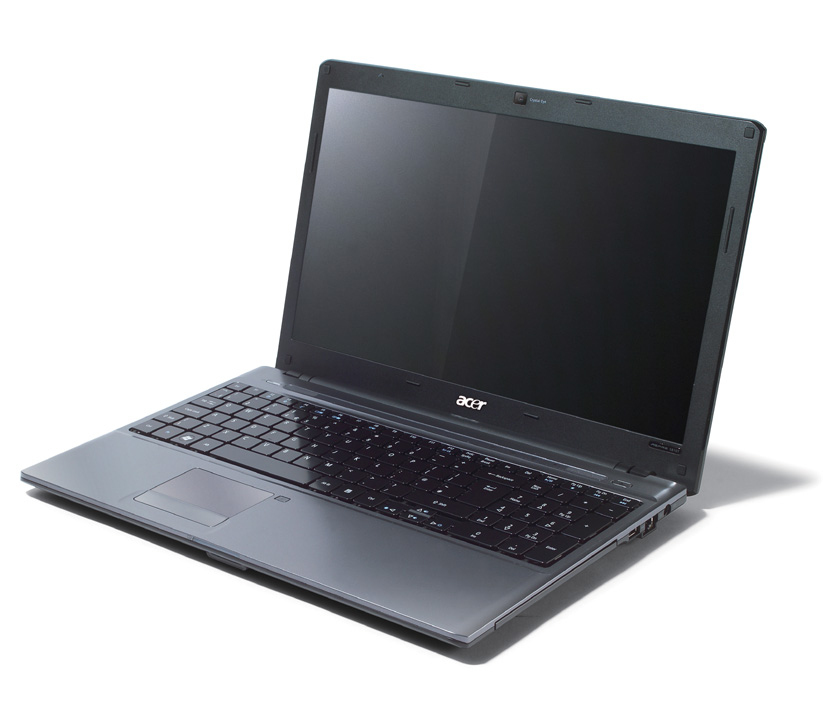

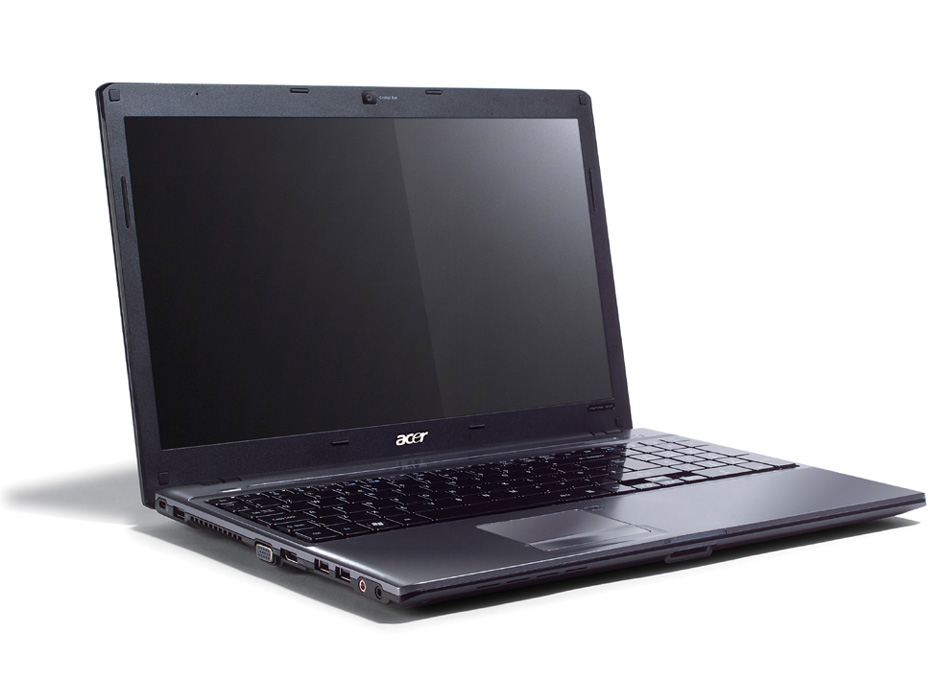

Aspire TimeLine 5810TG-734G32Mn
Model Aspire TimeLine 5810TG-734G32MnPart no. LX.PL102.002EAN 099802386528
113 specifications Checked today
- Display39.6 cm (15.6")
- Resolution1366 x 768 pixels
- ProcessorIntel® Core™2 Duo
- Memory4 GB
- Storage320 GB
- GraphicsAMD Mobilty Radeon HD 4330
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Core™2 Duo
- Memory
- 4 GB
- Storage
- 320 GB
- Graphics
- AMD Mobilty Radeon HD 4330
- Brand
- Acer
- Category
- Laptop
- Model
- Aspire TimeLine 5810TG-734G32Mn
- Part numbers
- LX.PL102.002, LX.PK602.098
- EAN / UPC
- 099802386528
- Also known as
- Acer Aspire TimeLine 5810TG-734G32Mn Intel® Core™2 Duo SU7300 39.6 cm (15.6") 4 GB DDR3-SDRAM 320 GB AMD Mobilty Radeon HD 4330 Windows 7 Home Premium
Specifications
113 specifications in 16 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 220 cd/m² |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | SU7300 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.3 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor front side bus | 800 MHz |
| Processor socket | BGA 956 |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor codename | Penryn |
| Bus type | FSB |
| FSB Parity | No |
| Stepping | R0 |
| Thermal Design Power (TDP) | 10 W |
| Tjunction | 105 °C |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1066 MHz |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| HDD interface | SATA |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MS PRO, SD, xD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Mobilty Radeon HD 4330 |
| Discrete graphics card memory | 0.512 GB |
| Maximum graphics card memory | 1.792 GB |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
| Number of built-in speakers | 2 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
| Wireless technology | IEEE 802.11a/b/g/n |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | Yes |
| Modem (RJ-11) ports | 0 |
| TV-in port | No |
| TV-out | No |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® GS45 Express |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 42791 |
| Processor code | SLGYV |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE4 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Power
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Password protection type | BIOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.4 kg |
| Width | 378 mm |
| Depth | 259 mm |
| Height (front) | 2.48 cm |
| Height (rear) | 2.97 cm |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Internal modem | No |
| Supplied AC adapter type | AC |
