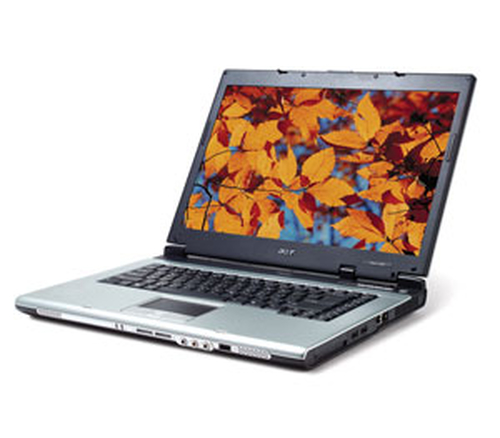

Acer Aspire 9504WSMib_DL

Model Aspire 9504WSMib_DLPart no. LX.A6105.032

75 specifications Checked 4 days ago

Display43.2 cm (17")
Resolution1440 x 900 pixels
Memory1 GB
Storage100 GB
GraphicsAMD Radeon X700
OSWindows XP Home Edition

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1440 x 900 pixels
Memory: 1 GB
Storage: 100 GB
Graphics: AMD Radeon X700
OS: Windows XP Home Edition

Brand: Acer
Category: Laptop
Model: Aspire 9504WSMib_DL
Part numbers: LX.A6105.032, LX.A6105.024
Also known as: Acer Aspire 9504WSMib_DL 43.2 cm (17") 1 GB DDR2-SDRAM 100 GB AMD Radeon X700 Windows XP Home Edition

Specifications

75 specifications in 17 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1440 x 900 pixels
Native aspect ratio	16:10
Display response rise/fall	16 ms

Processor

Specification	Value
Processor manufacturer	Intel
Processor frequency	2 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	533 MHz
Processor technology	Intel SpeedStep

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 0.5 GB
Memory slots	2x SO-DIMM
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	100 GB
HDD interface	Ultra-ATA/100

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon X700
Maximum graphics card memory	0.256 GB
Graphics card interface	PCI Express

Audio

Specification	Value
Audio system	Dolby Digital Live & MS Sound
Number of built-in speakers	2

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking features	Gigabit Ethernet, Wireless LAN, Bluetooth
Wireless technology	Intel PRO/Wireless 2200BG
Ethernet LAN data rates	10,100,1000 Mbit/s
Wireless compliance	IEEE 802.11b/g

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	1
DVI port	Yes
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	Yes
Microphone in	Yes
Docking connector	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
I/O ports	1x ExpressCard slot
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 915PM Express

Keyboard

Specification	Value
Pointing device	Touchpad
Hot keys	4
Number of keyboard cursor keys	4
Keyboard function keys	12

Software

Specification	Value
Operating system installed	Windows XP Home Edition
Bundled software	Acer GridVista 2.0 Acer Launch Manager Acer Arcade 2.0 Norton AntiVirus Adobe Reader CyberLink PowerDVD/CyberLink Power Producer NTI CD Maker Bluetooth profile Acer Empowering Technology: - Acer eDataSecurity Management - Acer eLock Management - Acer ePerformance Management - Acer eRecovery Manageme

Battery

Specification	Value
Number of battery cells	8
Battery life (max)	3 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Weight & dimensions

Specification	Value
Weight	3.8 kg
Width	402 mm
Depth	286 mm
Height	38.2 mm

Other features

Specification	Value
Security features	BIOS user & supervisor passwords
Infrared data port	Yes
Power management	ACPI 2.2
Special features	Digital & analog hybrid TV-tuner Acer DVB-T antenna (UHF/VHF)
Wake-on-LAN ready	Yes
Wake-on-Ring ready	Yes
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	ITU V.92
Supplied AC adapter type	AC
