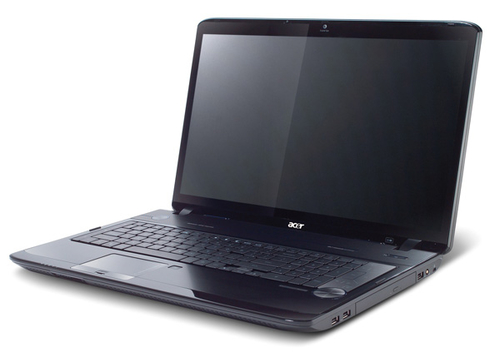

Acer Aspire 8942G-336G50Bn

Model Aspire 8942G-336G50BnPart no. LX.PQB02.002EAN 4718235317034

142 specifications Checked 2 days ago

Display46.7 cm (18.4")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i3
Memory6 GB
Storage500 GB
GraphicsAMD Mobility Radeon HD 5650

See all specifications

Overview

Display: 46.7 cm (18.4")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i3
Memory: 6 GB
Storage: 500 GB
Graphics: AMD Mobility Radeon HD 5650

Brand: Acer
Category: Laptop
Model: Aspire 8942G-336G50Bn
Part number: LX.PQB02.002
EAN / UPC: 4718235317034
Also known as: Acer Aspire 8942G-336G50Bn Intel® Core™ i3 i3-330M 46.7 cm (18.4") 6 GB DDR3-SDRAM 500 GB AMD Mobility Radeon HD 5650 Windows 7 Home Premium

Specifications

142 specifications in 18 groups

Display

Specification	Value
Display diagonal	46.7 cm (18.4")
Display resolution	1920 x 1080 pixels
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	220 cd/m²
Display response rise/fall	8 ms

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	3rd gen Intel® Core™ i3
Processor model	i3-330M
Processor cores	2
Processor threads	4
Processor frequency	2.13 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1288
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-300 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	C2
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	16
ECC supported by processor	No

Memory

Specification	Value
Internal memory	6 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory layout (slots x size)	1 x 2 + 1 x 4 GB
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	500 GB
HDD interface	SATA
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, SD, xD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon HD 5650
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	667 MHz
Maximum graphics card memory	4.091 GB

Audio

Specification	Value
Audio system	High Definition Audio
Built-in subwoofer	Yes

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	802.11 b/g/n
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	5
eSATA/USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	Yes
Line-in	Yes
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® HM55 Express

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Trial software	- McAfee Internet Security Suite - Microsoft Works + Office Home & Student 2007
Bundled software	- Acer Arcade Deluxe - Acer InstantOn Arcade - Acer Bio-Protection - Acer Crystal Eye - Acer GridVista - Acer Launch Manager - Acer Backup Manager - Acer PowerSmart Manager - Acer eRecovery Management - Acer GameZone - Acer Video Conference Manager - Adobe Reader - NTI Media Maker - Microsoft Window

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	47663
Processor code	SLBNF
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	8
Battery capacity	71 Wh
Battery life (max)	3 h

Power

Specification	Value
AC adapter power	120 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	4.6 kg
Width	440 mm
Depth	295 mm
Height (front)	3.1 cm
Height (rear)	4.38 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	Yes
Wake-on-LAN ready	Yes
Internal modem	No
Supplied AC adapter type	AC
