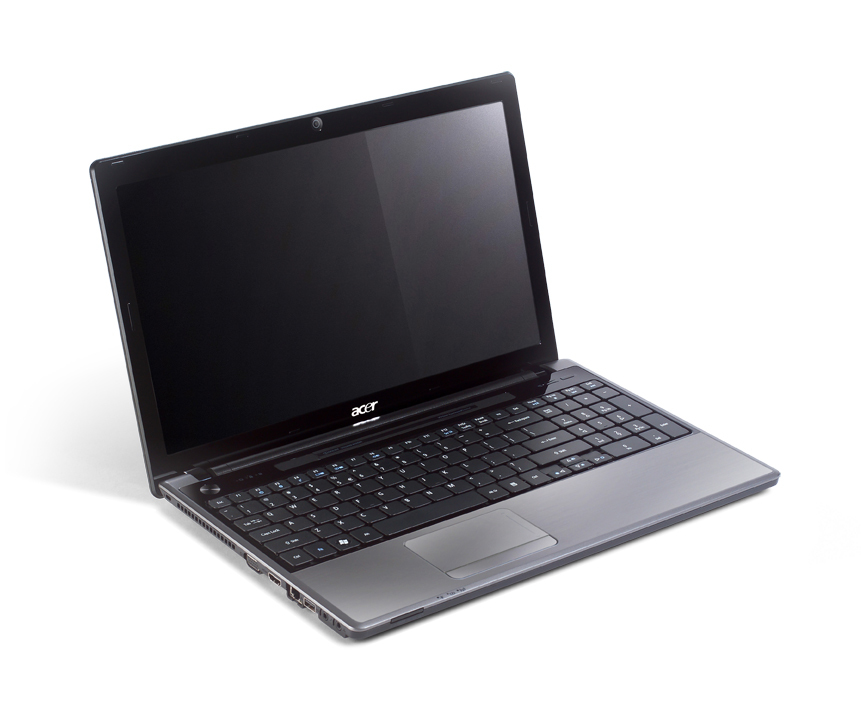

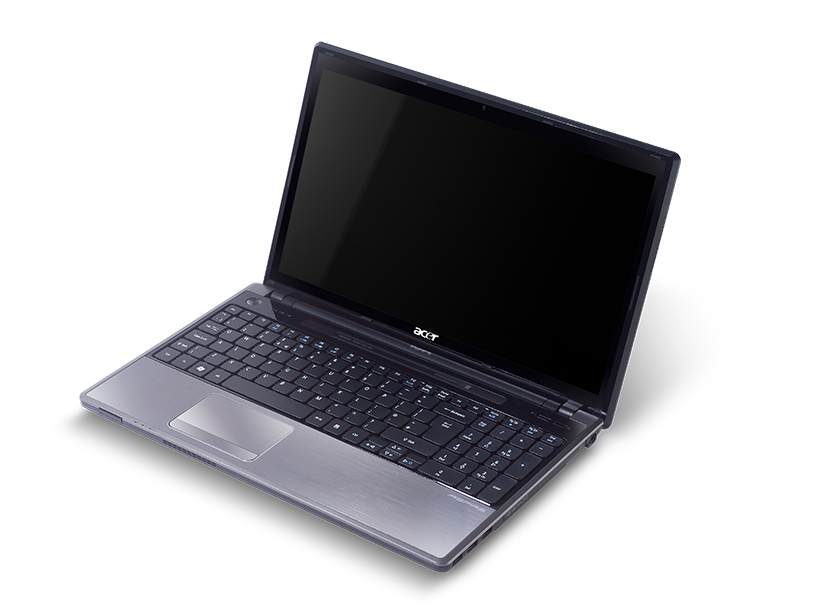

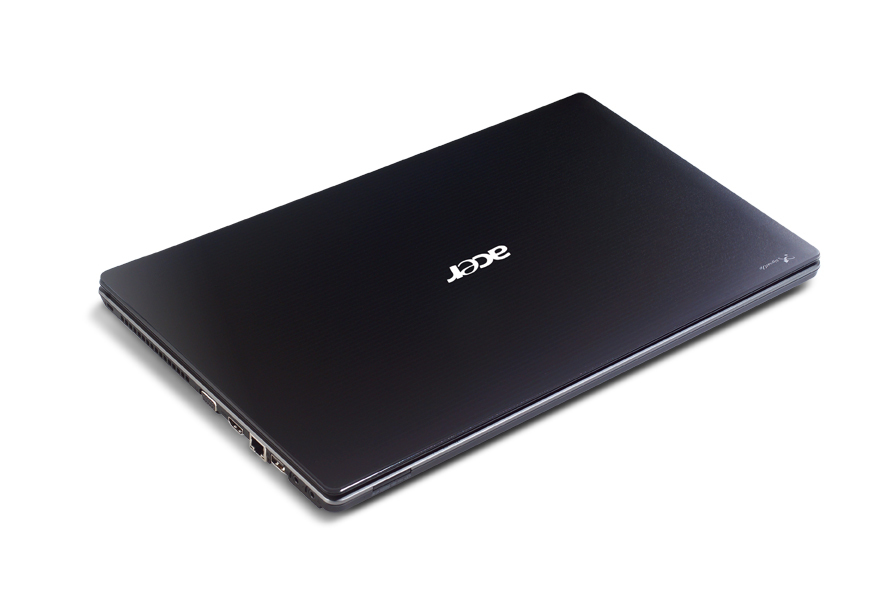

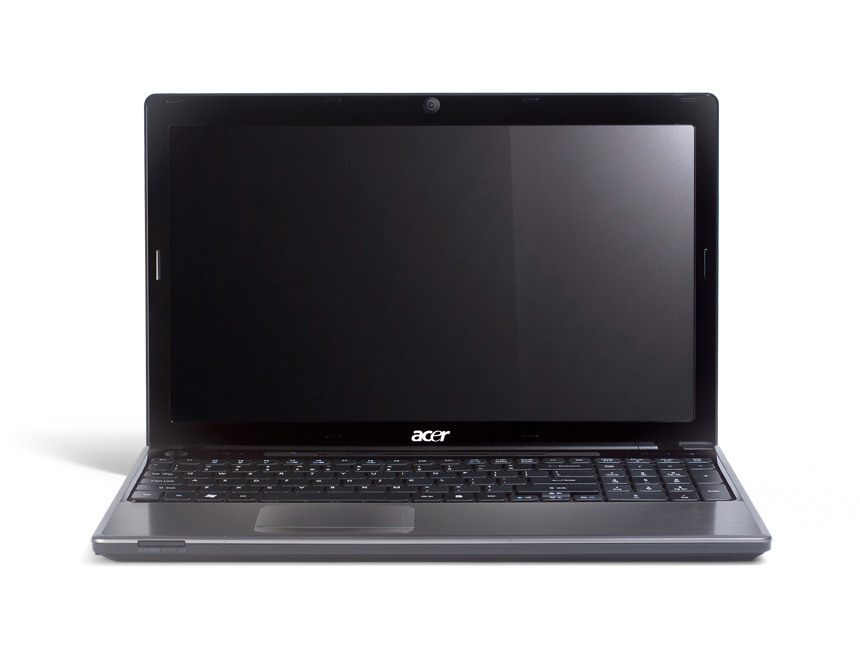

Acer Aspire 5745G-7746G64Mnks

Model Aspire 5745G-7746G64MnksPart no. LX.R6M02.026

124 specifications Checked 2 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i7
Memory6 GB
Storage640 GB
GraphicsNVIDIA® GeForce® GT 420M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i7
Memory: 6 GB
Storage: 640 GB
Graphics: NVIDIA® GeForce® GT 420M

Brand: Acer
Category: Laptop
Model: Aspire 5745G-7746G64Mnks
Part number: LX.R6M02.026
Also known as: Acer Aspire 5745G-7746G64Mnks Intel® Core™ i7 i7-740QM 39.6 cm (15.6") 6 GB DDR3-SDRAM 640 GB NVIDIA® GeForce® GT 420M Windows 7 Home Premium Black

Specifications

124 specifications in 18 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	200 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-740QM
Processor cores	4
Processor threads	8
Processor boost frequency	2.93 GHz
Processor frequency	1.73 GHz
System bus rate	2.5 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	Socket 988
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-700 Mobile Series
Processor codename	Clarksfield
Bus type	DMI
FSB Parity	No
Stepping	B1
Thermal Design Power (TDP)	45 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2
Number of Processing Die Transistors	774 M
Processing Die size	296 mm²
CPU multiplier (bus/core ratio)	13
ECC supported by processor	No

Memory

Specification	Value
Internal memory	6 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	3 x 2 GB
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	640 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 420M
Graphics card family	NVIDIA

Audio

Specification	Value
Audio system	High Definition Audio

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
TV-in port	No
TV-out	No

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Bundled software	Acer Backup Manager, Acer eRecovery Manager, Acer Launch Manager, Adobe Reader, Adobe Flash Player, eSobi, Google Toolbar, NTI Media Maker, MyWinLocker, Oberon GameZone, WildTangent

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	49024
Processor code	SLBQG
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery life (max)	3.5 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Weight & dimensions

Specification	Value
Weight	2.6 kg
Width	379 mm
Depth	250 mm
Height (front)	2.59 cm
Height (rear)	3.29 cm

Other features

Specification	Value
Infrared data port	No
Wake-on-LAN ready	Yes
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
