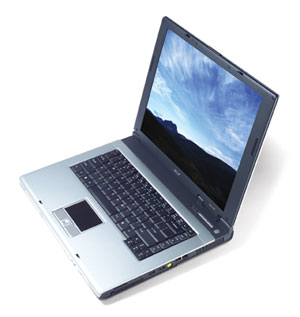

Acer ASPIRE 1684WLMI PMC745-1.8

Model ASPIRE 1684WLMI PMC745-1.8Part no. LX.A2705.380

87 specifications Checked 4 days ago

Overview

Brand: Acer
Category: Laptop
Model: ASPIRE 1684WLMI PMC745-1.8
Part number: LX.A2705.380
Also known as: Acer Aspire 1684WLMI PMC745-1.8 Intel Pentium Mobile 745 39.1 cm (15.4") 0.5 GB 80 GB AMD Radeon 9700

87 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	745
Processor cores	1
Processor threads	1
Processor frequency	1.8 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	400 MHz
Processor socket	Socket 479
Processor lithography	90 nm
Processor operating modes	32-bit
Processor series	Intel Pentium M 700 Series
Processor codename	Dothan
Bus type	FSB
FSB Parity	No
Thermal Design Power (TDP)	21 W
Tjunction	100 °C
Number of Processing Die Transistors	144 M
Processing Die size	87 mm²
CPU multiplier (bus/core ratio)	18
ECC supported by processor	No
Cache internal	2048 MB

Specification	Value
Internal memory	0.5 GB

Specification	Value
Total storage capacity	80 GB
HDD speed	4200 RPM

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon 9700
Maximum graphics card memory	0.064 GB

Specification	Value
Audio system	SoundBlaster-Pro and MS DirectSound-compatible
Number of built-in speakers	2

Specification	Value
Networking features	Ethernet/Fast Ethernet/IEEE 802.11b/IEEE 802.11g

Specification	Value
I/O ports	Firewire (IEEE-1394), 3x USB 2.0, 1x FIR, 1x RJ-45 ethernet, 1x RJ-11 modem, external (VGA) display port, S-video/TV-out, 1x PC Card slot (1x Type II)

Specification	Value
Motherboard chipset	Intel® 855GME

Specification	Value
Bundled software	Norton AntiVirus, CyberLink PowerDVD, Adobe Reader, Acer Launch Manager, Acer eManager, NTI CD Maker, Disc-to-disc recovery (uses 2GB of HD-space)
Compatible operating systems	Microsoft Windows XP Home Edition

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	27591
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
Battery life (max)	5 h

Specification	Value
Special features	3-in-1 card reader: supporting Secure Digital, MultiMediaCard en Memory Stick
Internal modem	Yes
Modem speed	56 Kbit/s
Supplied AC adapter type	AC
