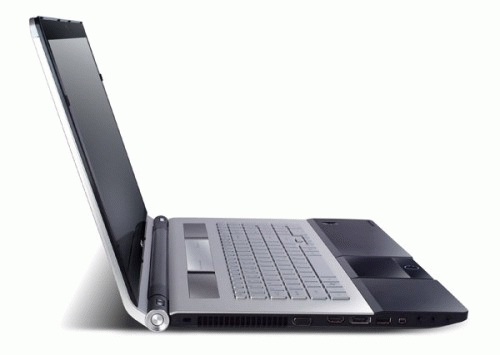

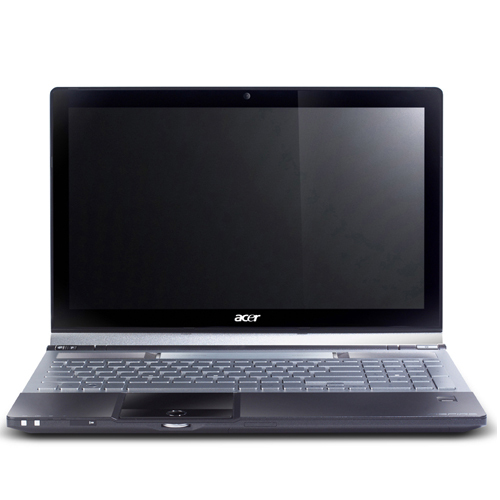

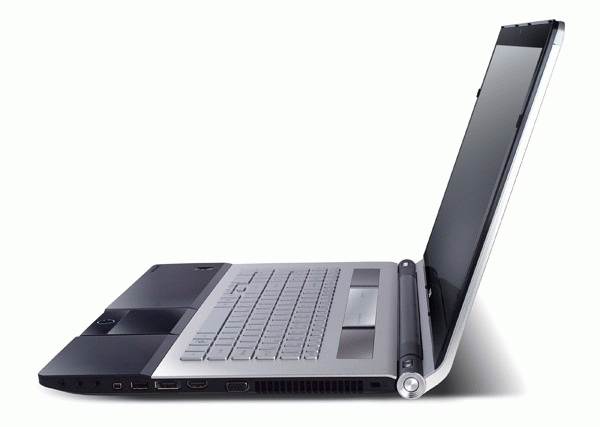

Acer Aspire AS8943G-5454G1TBn Intel® Core™ i5 i5-450M

46.7 cm (18.4") 4 GB DDR3-SDRAM 1 TB AMD Radeon HD 5650 Windows 7 Home Premium Black, Silver

Model AS8943G-5454G1TBnPart no. LX.PUJ02.062

140 specifications Checked 4 days ago

Display46.7 cm (18.4")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage1 TB
GraphicsAMD Radeon HD 5650

See all specifications

Overview

Display: 46.7 cm (18.4")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 1 TB
Graphics: AMD Radeon HD 5650

Brand: Acer
Category: Laptop
Model: AS8943G-5454G1TBn
Part number: LX.PUJ02.062
Also known as: Acer Aspire AS8943G-5454G1TBn Intel® Core™ i5 i5-450M 46.7 cm (18.4") 4 GB DDR3-SDRAM 1 TB AMD Radeon HD 5650 Windows 7 Home Premium Black, Silver

Specifications

140 specifications in 19 groups

Design

Specification	Value
Product colour	Black, Silver

Display

Specification	Value
Display diagonal	46.7 cm (18.4")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display response rise/fall	8 ms

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-450M
Processor cores	2
Processor threads	4
Processor boost frequency	2.66 GHz
Processor frequency	2.4 GHz
System bus rate	4.8 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	Socket 988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-400 Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	K0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	18
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	1 TB
Number of HDDs installed	2
HDD speed	5400 RPM
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, SD, xD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon HD 5650
Graphics card family	AMD
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	766 MHz

Audio

Specification	Value
Audio system	HD

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	3G
Networking features	Gigabit Ethernet
Wireless technology	802.11b/g/Draft-N
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	5
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	Yes
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® HM55 Express

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	49022
Processor code	SLBTZ
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	8
Battery capacity	4800 mAh
Battery life (max)	3 h
Battery recharge time (off)	2 h
Battery recharge time (on)	3 h

Power

Specification	Value
AC adapter power	71 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Password protection type	BIOS
HDD user password	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	4.6 kg
Width	440 mm
Depth	295 mm
Height (front)	3.1 cm
Height (rear)	4.38 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	Yes
Internal modem	No
Supplied AC adapter type	AC
