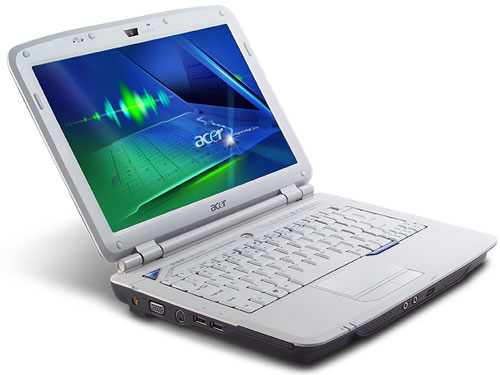

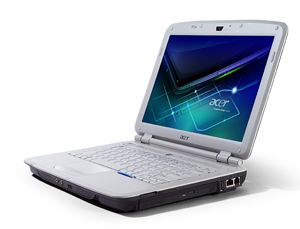

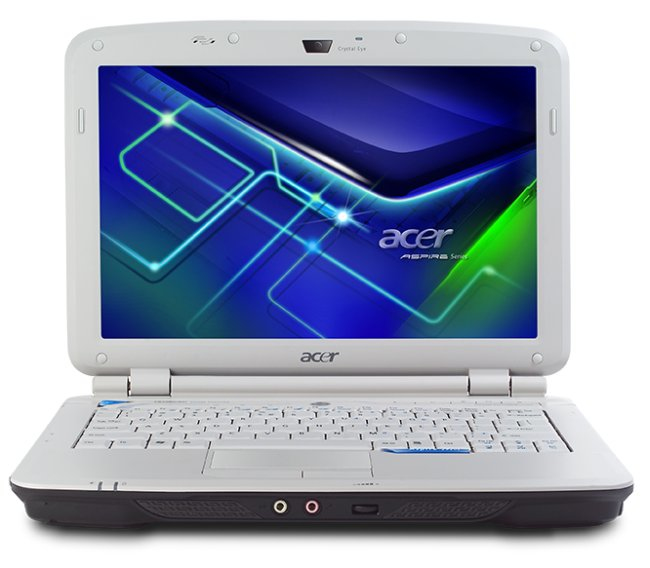

Acer Aspire AS2920-6692 Intel® Core™2 Duo T5750

30.7 cm (12.1") 2 GB DDR2-SDRAM 160 GB Intel X3100 Windows Vista Home Premium White

Model AS2920-6692Part no. LX.ANK0X.808

112 specifications Checked 4 days ago

Display30.7 cm (12.1")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage160 GB
GraphicsIntel X3100

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 160 GB
Graphics: Intel X3100

Brand: Acer
Category: Laptop
Model: AS2920-6692
Part number: LX.ANK0X.808
Also known as: Acer Aspire AS2920-6692 Intel® Core™2 Duo T5750 30.7 cm (12.1") 2 GB DDR2-SDRAM 160 GB Intel X3100 Windows Vista Home Premium White

Specifications

112 specifications in 19 groups

Design

Specification	Value
Product colour	White

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1280 x 800 pixels
LED backlight	Yes
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T5750
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	mPGA4
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T5000 Series
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	85 °C
Processor core voltage (AC)	1.075 - 1.175 V
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	160 GB
Number of HDDs installed	1
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel X3100
Graphics card family	Intel

Audio

Specification	Value
Audio system	Dolby Home Theater
Audio formats supported	AAC, MP3

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Wireless technology	Wi-Fi
Bluetooth	No
Cabling technology	10/100/1000BASE-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	Yes
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Hot keys	Yes
Number of keyboard cursor keys	4
Keyboard keystroke	2.5 mm
Keyboard function keys	12
Keyboard easy keys	Yes

Software

Specification	Value
Operating system installed	Windows Vista Home Premium
Compatible operating systems	Windows Vista

Processor special features

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	33915
Processor code	SLA4D
Processor package size	35 x 35 mm

Battery

Specification	Value
Number of battery cells	6
Battery life (max)	4.5 h
Battery recharge time	2.5 h

Power

Specification	Value
AC adapter power	53 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.95 kg
Width	304 mm
Depth	223 mm
Height (front)	3.2 cm
Height (rear)	4.2 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Wake-on-LAN ready	Yes
Wake-on-Ring ready	Yes
Internal modem	Yes
TV tuner integrated	No
Modem speed	56 Kbit/s
Supplied AC adapter type	AC
