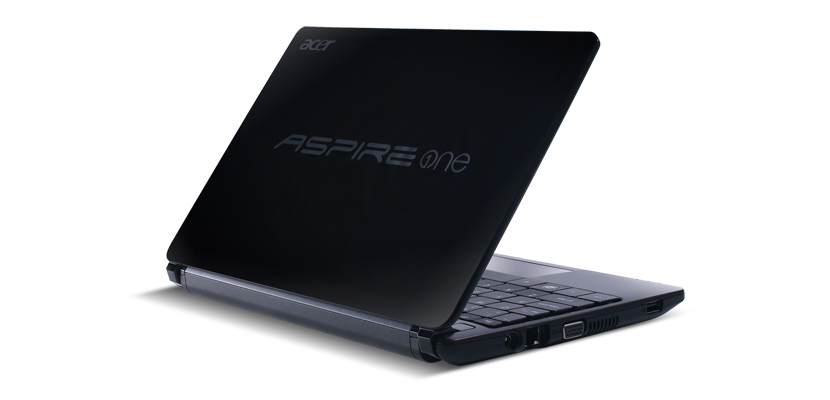

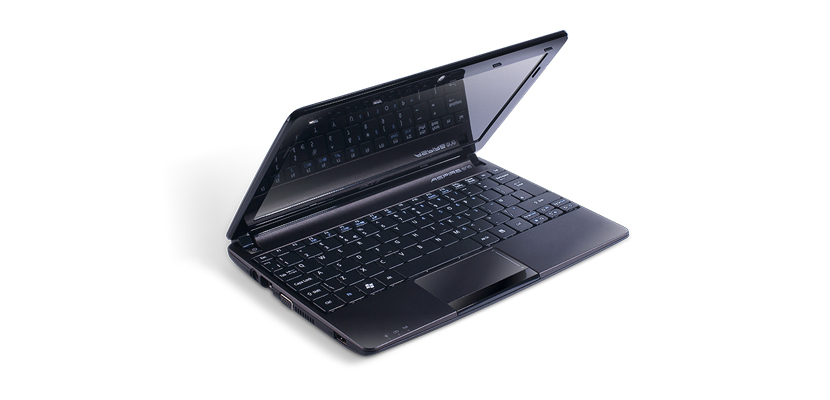

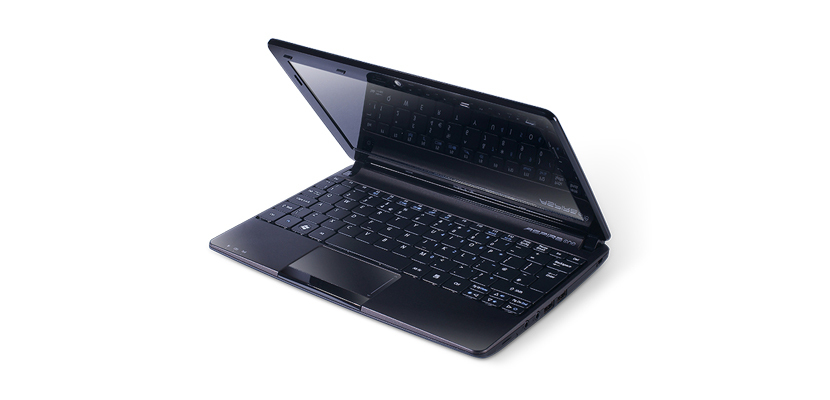

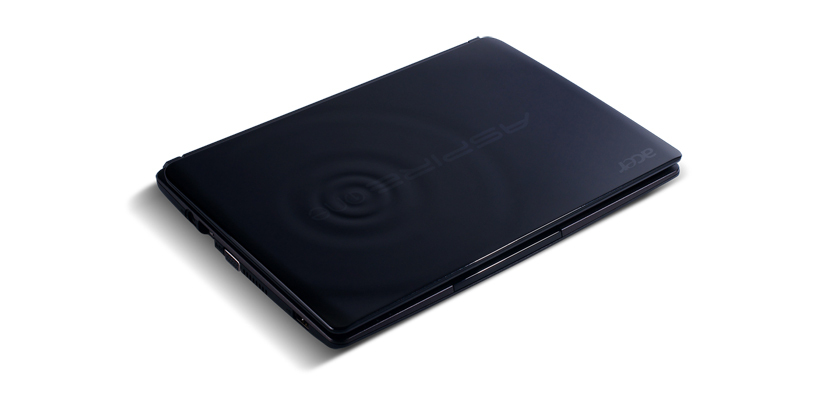

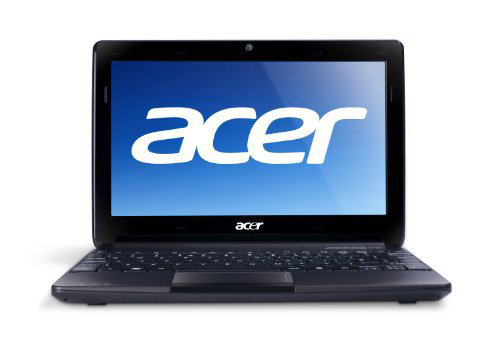

Acer Aspire One AOD257-1486 Intel Atom® N570 Netbook

25.6 cm (10.1") 1 GB DDR3-SDRAM 250 GB Windows 7 Starter Black

Model AOD257-1486Part no. LU.SFS0D.010EAN 884483971527

94 specifications Checked 3 days ago

Display25.6 cm (10.1")
Resolution1024 x 600 pixels
ProcessorIntel Atom®
Memory1 GB
Storage250 GB
Battery4400 mAh

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1024 x 600 pixels
Processor: Intel Atom®
Memory: 1 GB
Storage: 250 GB
Battery: 4400 mAh

Brand: Acer
Category: Laptop
Model: AOD257-1486
Part number: LU.SFS0D.010
EAN / UPC: 884483971527
Also known as: Acer Aspire One AOD257-1486 Intel Atom® N570 Netbook 25.6 cm (10.1") 1 GB DDR3-SDRAM 250 GB Windows 7 Starter Black

Specifications

94 specifications in 22 groups

Design

Specification	Value
Product type	Netbook
Product colour	Black

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1024 x 600 pixels
LED backlight	Yes
Native aspect ratio	5:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	N570
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
System bus rate	2.5 GT/s
Processor cache	1 MB
Processor cache type	L2
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Pineview
Thermal Design Power (TDP)	8.5 W
Number of Processing Die Transistors	17 M
Processing Die size	87 mm²

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory layout (slots x size)	1 x 1 GB
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD

Graphics

Specification	Value
Graphics card family	Intel
On-board graphics card model	Intel® GMA 3150
On-board graphics card base frequency	200 MHz
Graphics card	GMA 3150

Audio

Specification	Value
Audio system	HD
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Fast Ethernet, WLAN
Wireless technology	Wi-Fi
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	No
Cabling technology	10/100Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel NM10
GPS (satellite)	No

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows 7 Starter
Bundled software	Microsoft Office Starter 2010 Bing Bar Windows Live Essentials

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	55637
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	4400 mAh
Battery life (max)	8 h

Power

Specification	Value
AC adapter power	65 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	HDD, Supervisor, User
BIOS password	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	WEEE

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.2 kg
Width	256.5 mm
Depth	183.9 mm
Height	23.9 mm

Packaging content

Specification	Value
Remote control included	No

Other features

Specification	Value
Supplied AC adapter type	AC
