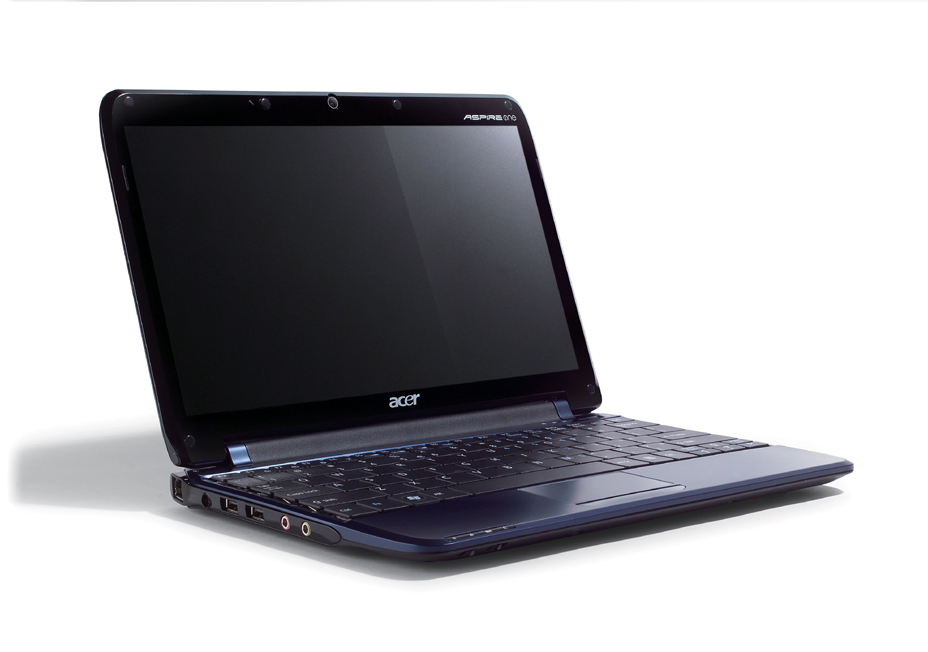

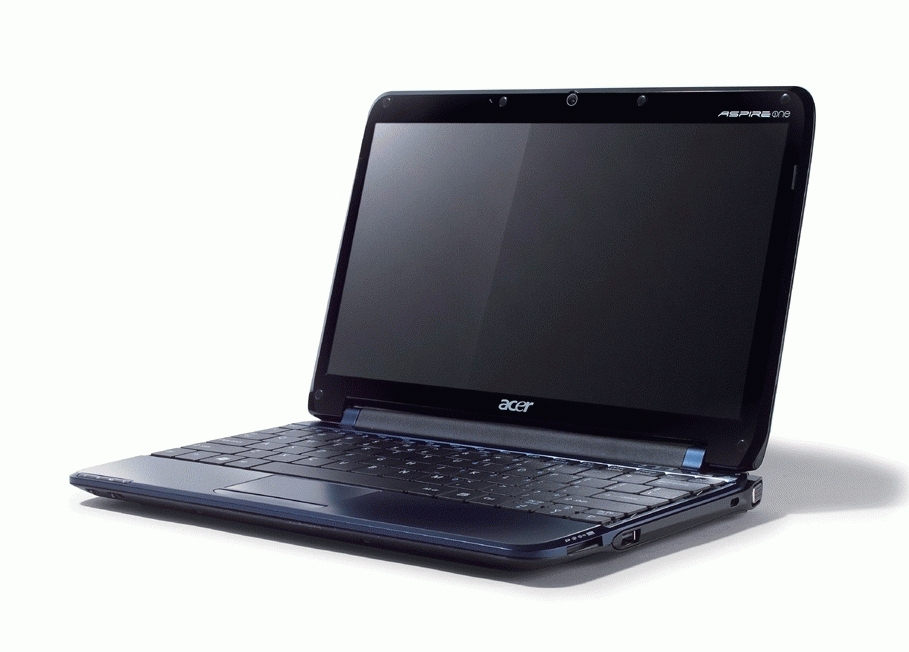

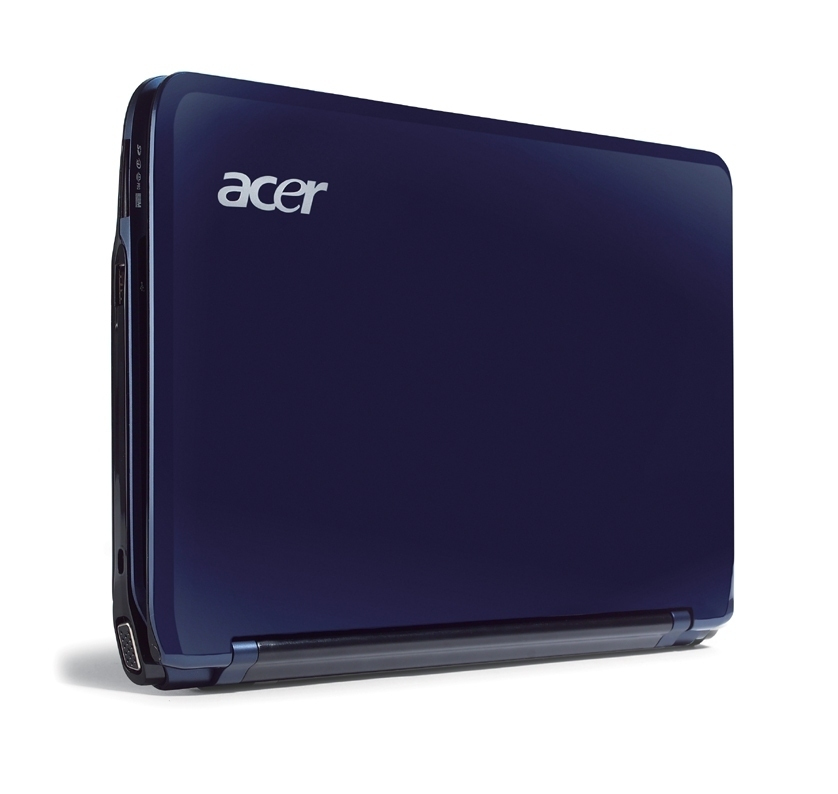

AO751h-52Bb Intel Atom® Z520 Netbook

29.5 cm (11.6") 1 GB DDR2-SDRAM Windows XP Home Edition Blue

Model AO751h-52BbPart no. LU.S840B.128EAN 4712842670971

101 specifications Checked today

Display29.5 cm (11.6")
Resolution1366 x 768 pixels
ProcessorIntel Atom®
Memory1 GB
Storage160 GB
Battery5200 mAh

See all specifications

Overview

Display: 29.5 cm (11.6")
Resolution: 1366 x 768 pixels
Processor: Intel Atom®
Memory: 1 GB
Storage: 160 GB
Battery: 5200 mAh

Brand: Acer
Category: Laptop
Model: AO751h-52Bb
Part numbers: LU.S840B.128, LU.S850B.018
EAN / UPC: 4712842670971
Also known as: Acer AO751h-52Bb Intel Atom® Z520 Netbook 29.5 cm (11.6") 1 GB DDR2-SDRAM Windows XP Home Edition Blue

Specifications

101 specifications in 17 groups

Design

Specification	Value
Product type	Netbook
Product colour	Blue

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z520
Processor cores	1
Processor threads	2
Processor frequency	1.33 GHz
Processor cache	0.512 MB
Processor cache type	L2
Processor front side bus	533 MHz
Processor socket	PBGA441
Processor lithography	45 nm
Processor operating modes	32-bit
Processor series	Intel Atom Z500 Series
Processor codename	Silverthorne
Bus type	FSB
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	2 W
Scenario Design Power (SDP)	0.96 W
Tjunction	90 °C
Number of Processing Die Transistors	47 M
Processing Die size	26 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 1 GB
Memory slots	1x SO-DIMM
Maximum internal memory	2 GB

Storage

Specification	Value
HDD capacity	160 GB
HDD size	2.5"
Card reader integrated	Yes

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Wi-Fi	Yes
Wireless technology	802.11b/g
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes

Performance

Specification	Value
Motherboard chipset	Intel® SCH US15W

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows XP Home Edition
Trial software	-Microsoft Works SE 9 + Office Home & Student 2007. -McAfee Internet Security Suite.
Bundled software	-Acer eRecovery Management. -Google Toolbar. -Google Desktop. -Google Setup. -Adobe Reader 9. -Adobe Flash Player 10. -Microsoft.NET Framework 2.0. -Customized Internet Explorer 7.0. -eSobi. -Carbonite online backup. -Windows Media Player 10. -Acer Game Zone. -Acer Video Conference Manager 4.0. -Win

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	35466
Processor code	SLB2H
Processor package size	13 x 14 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	5200 mAh
Battery life (max)	8 h

Power

Specification	Value
AC adapter power	30 W
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	1.35 kg
Width	284 mm
Depth	198 mm
Height	25.4 mm

Other features

Specification	Value
Supplied AC adapter type	AC
