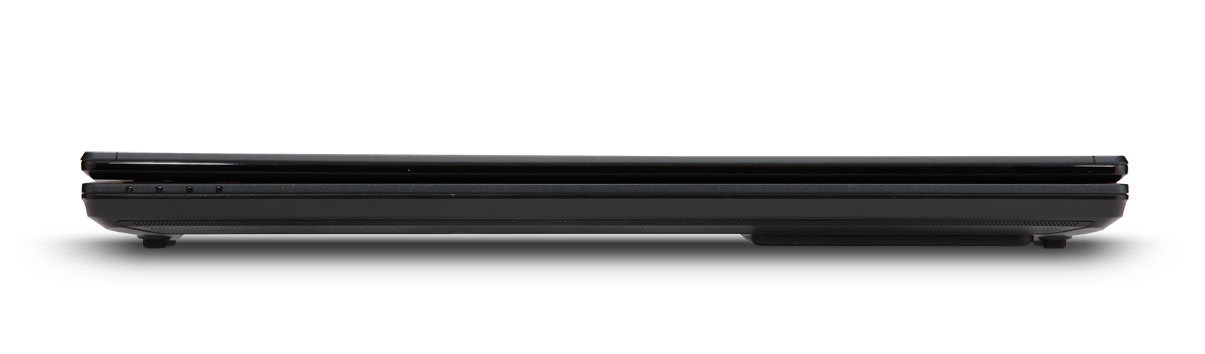

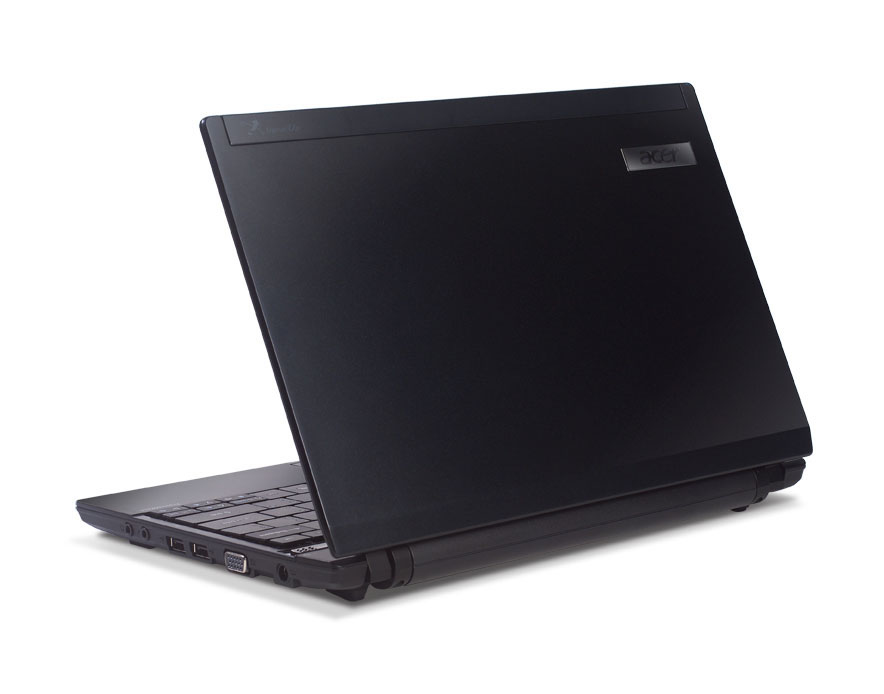

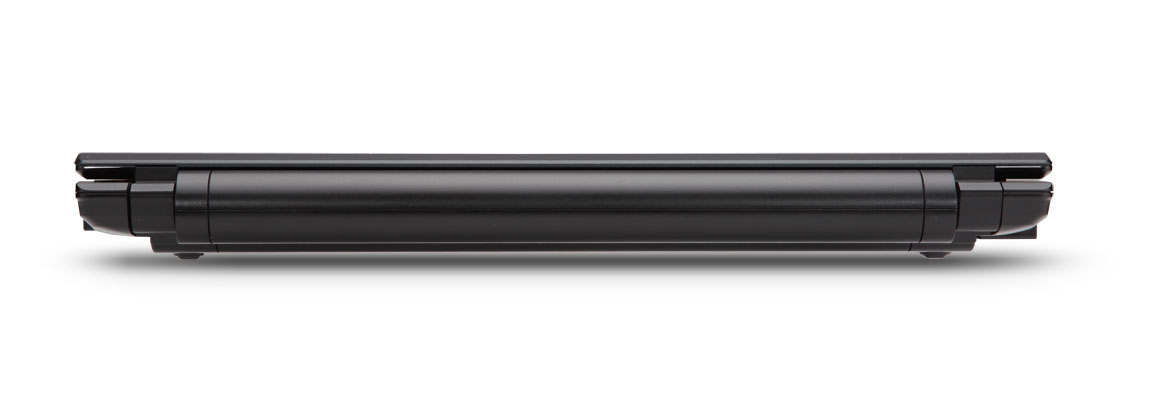

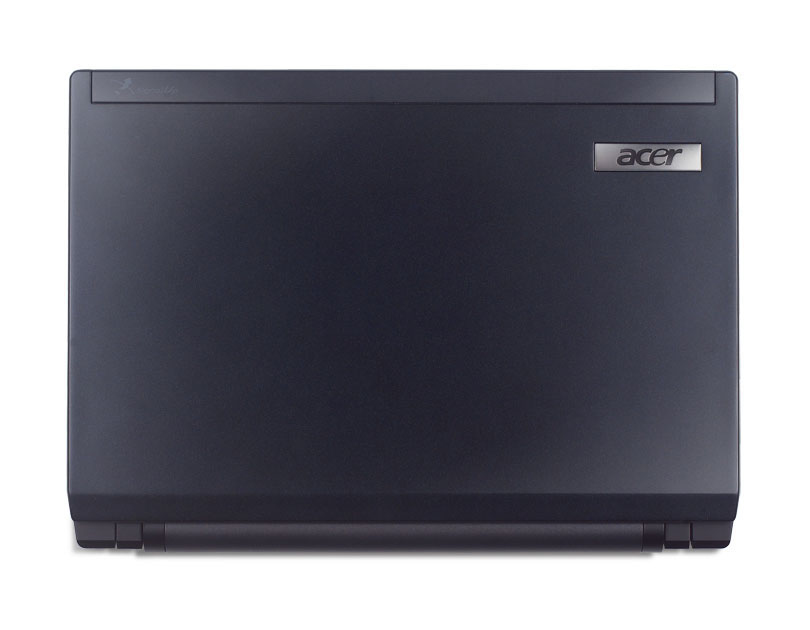

Acer TravelMate TimelineX 8172Z-U543G32N Intel® Pentium® U5600

29.5 cm (11.6") 3 GB DDR3-SDRAM 320 GB Intel® HD Graphics Windows 7 Home Premium

Model 8172Z-U543G32NPart no. LX.V1502.001EAN 4712842788393

95 specifications Checked 2 days ago

Display29.5 cm (11.6")
Resolution1366 x 768 pixels
ProcessorIntel® Pentium®
Memory3 GB
Storage320 GB
GraphicsIntel® HD Graphics

See all specifications

Overview

Display: 29.5 cm (11.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Pentium®
Memory: 3 GB
Storage: 320 GB
Graphics: Intel® HD Graphics

Brand: Acer
Category: Laptop
Model: 8172Z-U543G32N
Part numbers: LX.V1502.001, LX.V1502.002
EAN / UPC: 4712842788393, 4712842788447
Also known as: Acer TravelMate TimelineX 8172Z-U543G32N Intel® Pentium® U5600 29.5 cm (11.6") 3 GB DDR3-SDRAM 320 GB Intel® HD Graphics Windows 7 Home Premium

Specifications

95 specifications in 16 groups

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	U5600
Processor cores	2
Processor threads	2
Processor frequency	1.33 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor operating modes	64-bit
Processor codename	Arrandale
Bus type	DMI
Thermal Design Power (TDP)	18 W
Tjunction	105 °C
Maximum number of PCI Express lanes	1
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
ECC supported by processor	No

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 1 + 1 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® HD Graphics
Graphics card family	Intel
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	166 MHz
On-board graphics card dynamic frequency (max)	500 MHz

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	2.1+EDR

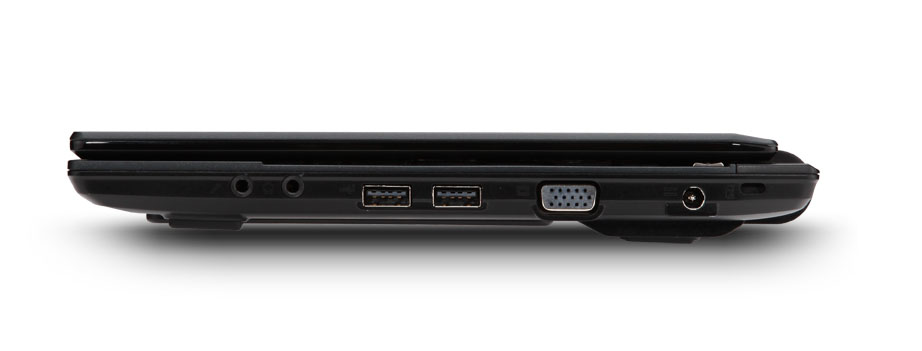

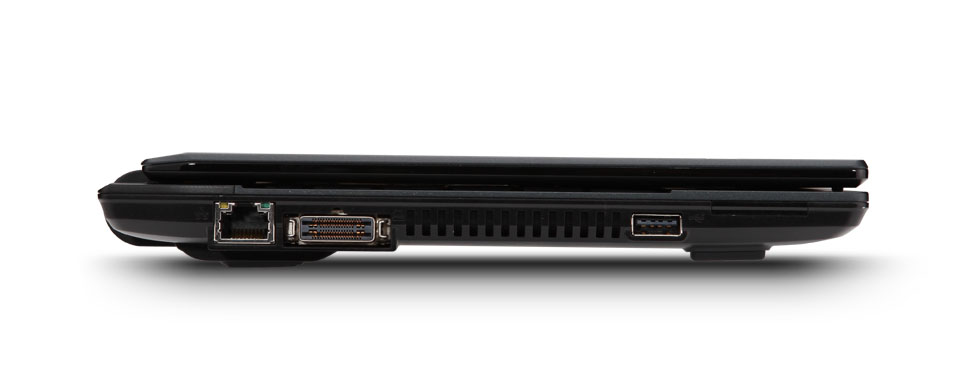

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
TV-out	No

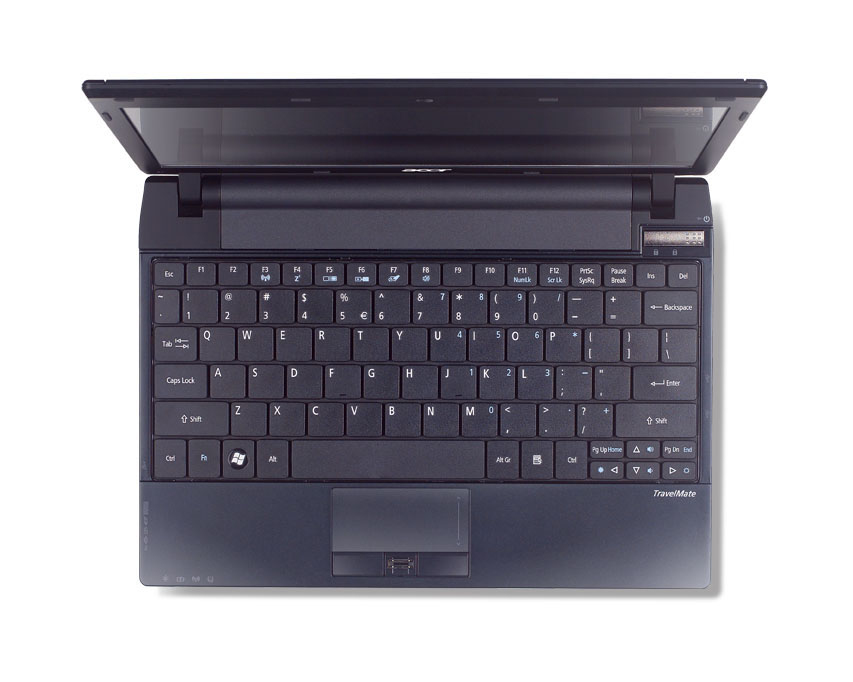

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor package size	34 x 28 mm
Thermal Monitoring Technologies	Yes

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes

Weight & dimensions

Specification	Value
Weight	1.35 kg
Width	285 mm
Depth	206 mm
Height (front)	2.9 cm

Other features

Specification	Value
Infrared data port	No
Supplied AC adapter type	AC
