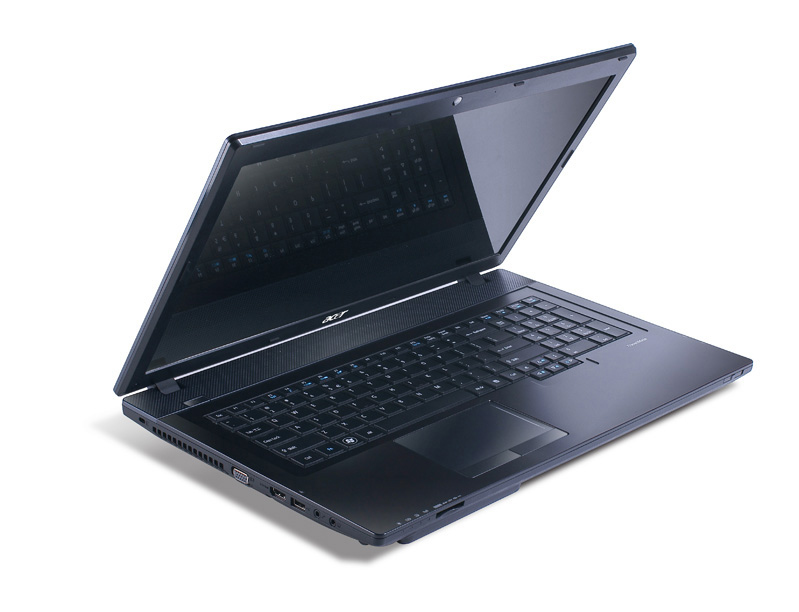

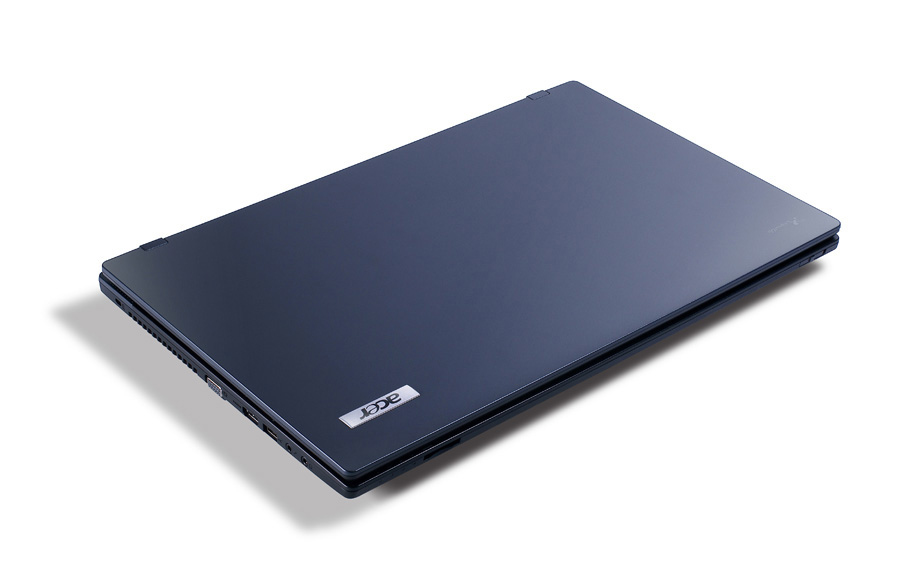

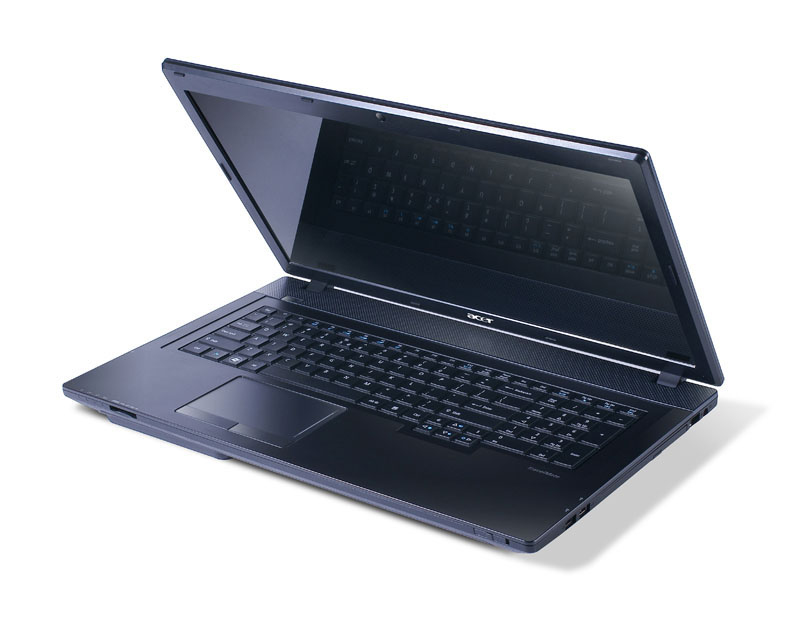

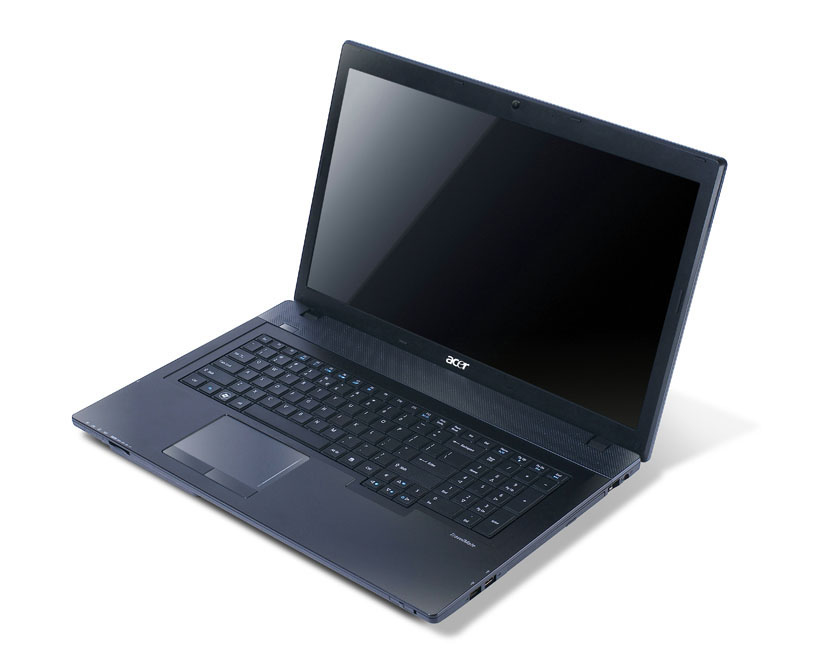

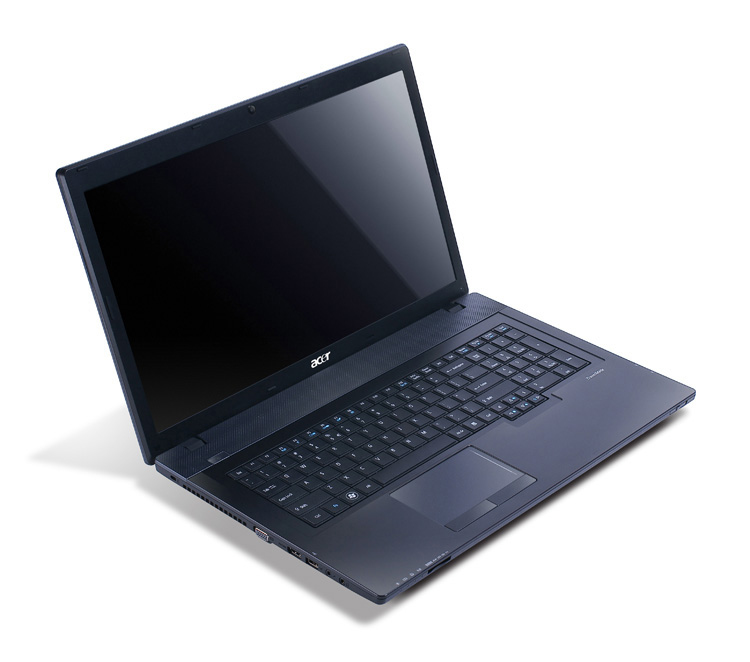

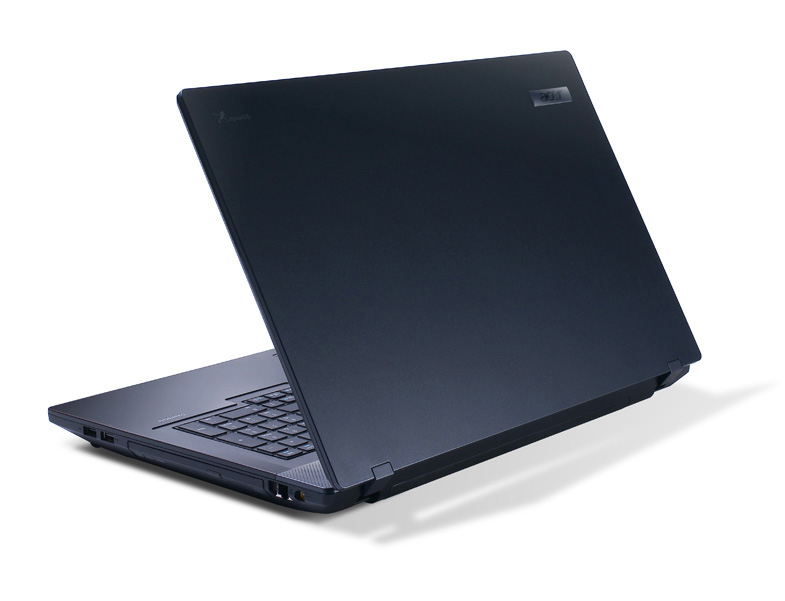

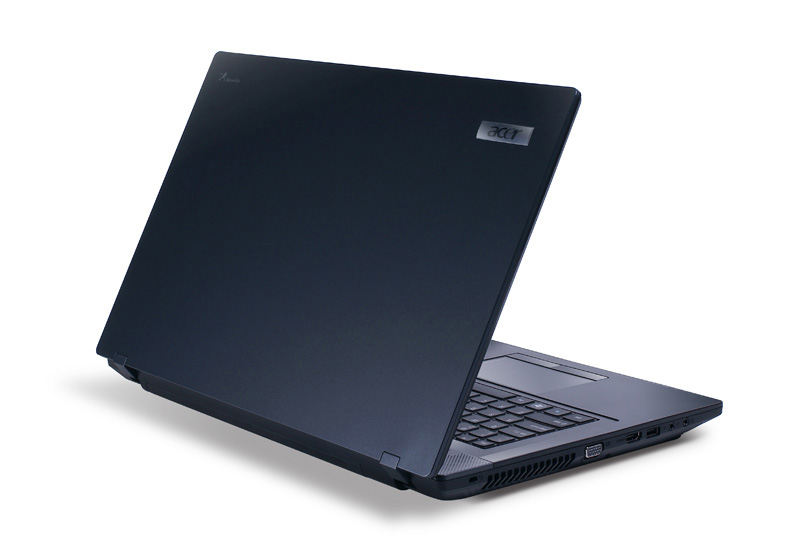

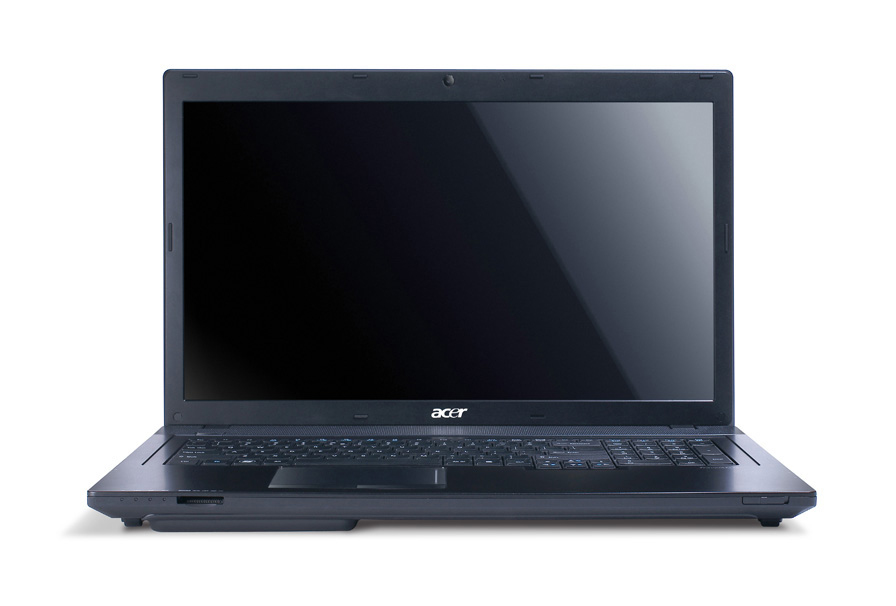

Acer TravelMate 7750Z-B942G25MISS Intel® Pentium® B950

43.9 cm (17.3") HD+ 4 GB DDR3-SDRAM 250 GB Windows 7 Home Premium

Model 7750Z-B942G25MISSPart no. LX.V5D02.005EAN 4717276746773

121 specifications Checked 2 days ago

Display43.9 cm (17.3")
Resolution1600 x 900 pixels
ProcessorIntel® Pentium®
Memory4 GB
Storage250 GB
GraphicsNot available

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1600 x 900 pixels
Processor: Intel® Pentium®
Memory: 4 GB
Storage: 250 GB
Graphics: Not available

Brand: Acer
Category: Laptop
Model: 7750Z-B942G25MISS
Part number: LX.V5D02.005
EAN / UPC: 4717276746773
Also known as: Acer TravelMate 7750Z-B942G25MISS Intel® Pentium® B950 43.9 cm (17.3") HD+ 4 GB DDR3-SDRAM 250 GB Windows 7 Home Premium

Specifications

121 specifications in 17 groups

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1600 x 900 pixels
HD type	HD+
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	B950
Processor cores	2
Processor threads	2
Processor frequency	2.1 GHz
System bus rate	5 GT/s
Processor cache	2 MB
Processor cache type	L3
Processor socket	PGA988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium B900 Series for Mobile
Processor codename	Sandy Bridge
Bus type	DMI
FSB Parity	No
Thermal Design Power (TDP)	35 W
Tjunction	85 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x8, 2x16, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	21
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory slots	4x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	250 GB
Number of HDDs installed	1
HDD interface	SATA II
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card memory	0.125 GB
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	Yes
Bluetooth	No
Integrated 4G WiMAX	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel® HM65 Express

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	55627
Processor package size	37.5x37.5 (rPGA988B)
Supported instruction sets	SSE4.x
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4400 mAh
Battery life (max)	4 h

Power

Specification	Value
AC adapter power	65 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Weight & dimensions

Specification	Value
Weight	3.3 kg
Width	415 mm
Depth	275 mm
Height	35.4 mm

Other features

Specification	Value
Infrared data port	No
