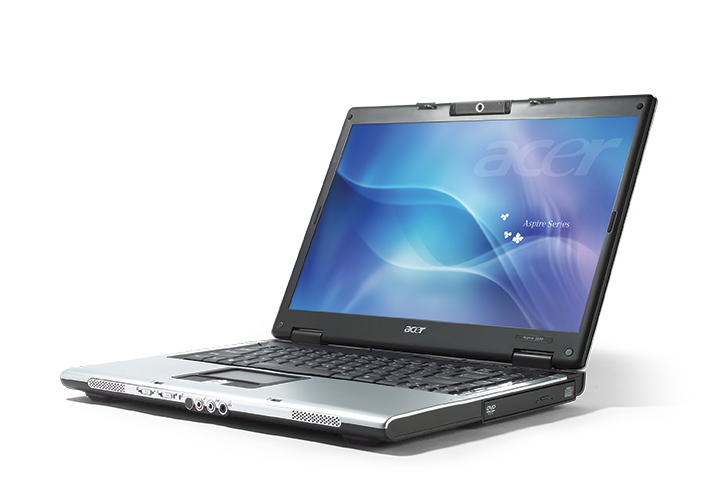

Acer 3694 WLMi

Model 3694 WLMiPart no. LX.AY90X.034EAN 4718235301729

84 specifications Checked 3 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Celeron® M
Memory1 GB
Storage80 GB
GraphicsIntel® GMA 950

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Celeron® M
Memory: 1 GB
Storage: 80 GB
Graphics: Intel® GMA 950

Brand: Acer
Category: Laptop
Model: 3694 WLMi
Part number: LX.AY90X.034
EAN / UPC: 4718235301729
Also known as: Acer Aspire 3694 WLMi Intel® Celeron® M Laptop 39.1 cm (15.4") WXGA 1 GB DDR2-SDRAM 80 GB HDD Intel® GMA 950 802.11g Windows Vista Home Premium Silver

Specifications

84 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Touchscreen	No
HD type	WXGA
Native aspect ratio	16:10
Display response rise/fall	16 ms

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron® M
Processor cores	1
Processor frequency	1.86 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	533 MHz

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory slots	2x SO-DIMM
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	80 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	80 GB
HDD speed	5400 RPM
Optical drive type	DVD-RW
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, SD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 950
Maximum graphics card memory	0.128 GB

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Mobile network connection	No
Networking features	Ethernet/Fast Ethernet
Wireless technology	IEEE 802.11b/g
Top Wi-Fi standard	802.11g
Wi-Fi standards	802.11b, 802.11g
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard function keys	12

Software

Specification	Value
Operating system installed	Windows Vista Home Premium
Bundled software	Acer Empowering Technology (Acer ePower, ePresentation, eDataSecurity, eLock, eRecovery, eSettings, ePerformance Management), Acer GridVista, Acer Launch Manager, Aspire Arcade, Adobe Reader, CyberLink PowerProducer, NTI CD-Maker

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery life (max)	2.5 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection	Yes
Password protection type	BIOS, Supervisor, User

Weight & dimensions

Specification	Value
Weight	2.77 kg
Width	358 mm
Depth	265 mm
Height	36 mm
Dimensions (WxDxH)	358 x 265 x 36 mm

Other features

Specification	Value
Infrared data port	No
Wake-on-Ring ready	Yes
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	ITU V.92
Supplied AC adapter type	AC
