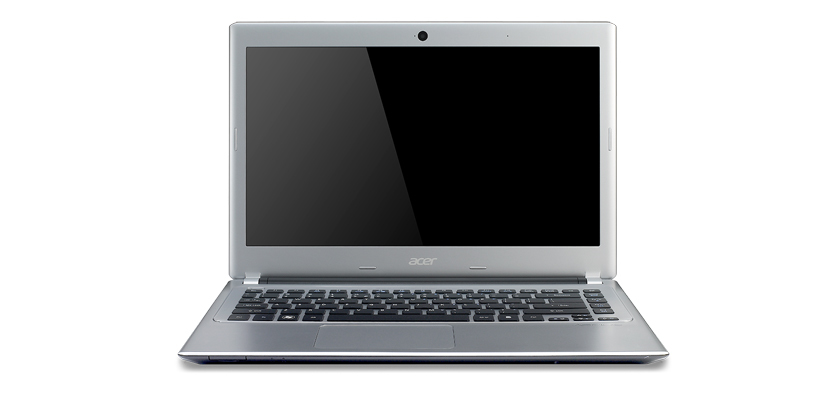

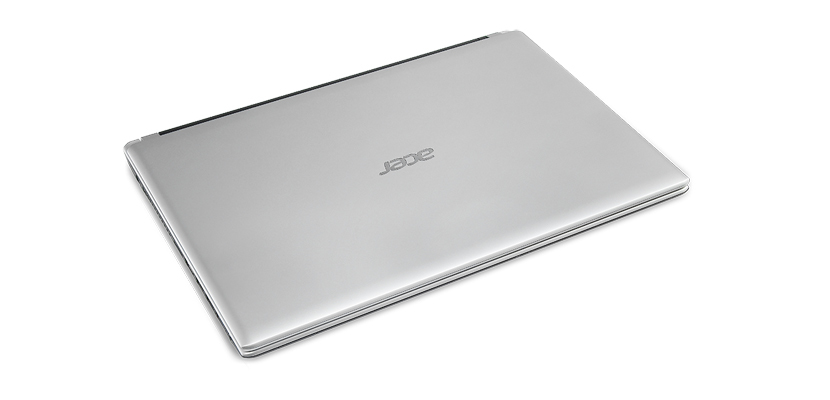

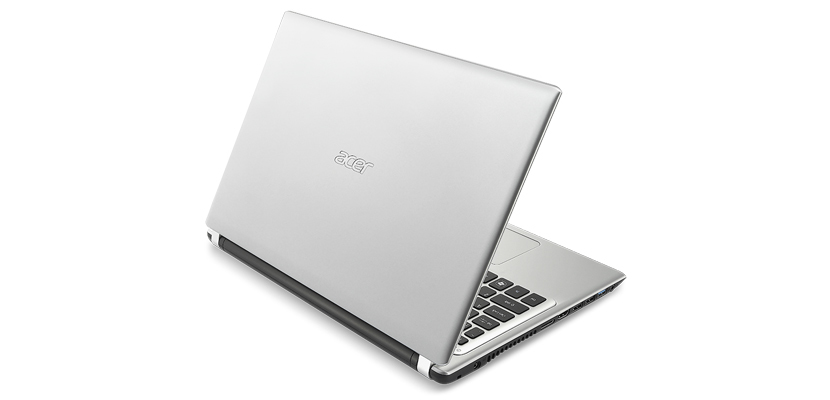

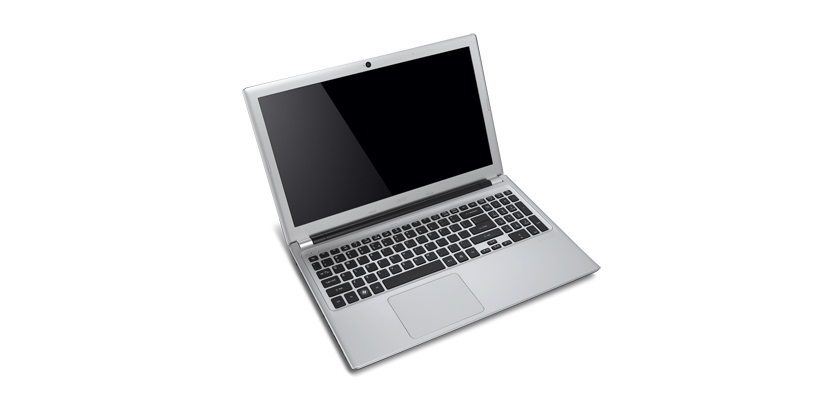

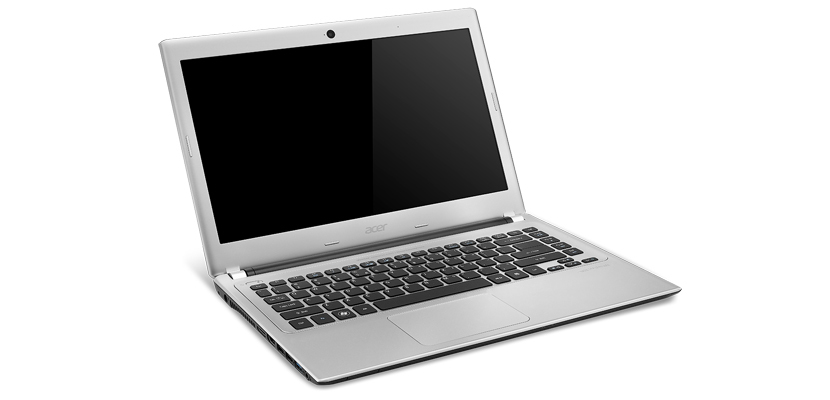

Acer Aspire 171-53314G50ass Intel® Core™ i5 i5-3317U

29.5 cm (11.6") 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Premium Black, Silver

Model 171-53314G50assPart no. NX.M3AEG.002EAN 4712196336264

184 specifications Checked 3 days ago

Display29.5 cm (11.6")
ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
GraphicsNot available
Battery2600 mAh

See all specifications

Overview

Display: 29.5 cm (11.6")
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Graphics: Not available
Battery: 2600 mAh

Brand: Acer
Category: Laptop
Model: 171-53314G50ass
Part numbers: NX.M3AEG.002, NX.M3ATA.004, NX.M3AEG.015, NX.M3AER.008
EAN / UPC: 4712196336264, 4712196220433
Also known as: Acer Aspire 171-53314G50ass Intel® Core™ i5 i5-3317U 29.5 cm (11.6") 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Premium Black, Silver

Specifications

184 specifications in 22 groups

Design

Specification	Value
Product colour	Black, Silver
Form factor	Clamshell
Housing material	Aluminium, Plastic

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Touchscreen	No
LED backlight	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	3rd gen Intel® Core™ i5
Processor model	i5-3317U
Processor cores	2
Processor threads	4
Processor boost frequency	2.6 GHz
Processor frequency	1.7 GHz
System bus rate	5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-3300 Mobile series
Processor codename	Ivy Bridge
Bus type	DMI
FSB Parity	No
Stepping	L1
Thermal Design Power (TDP)	17 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	17
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	5400 RPM
Number of SSDs installed	0
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card ID	0x166

Audio

Specification	Value
Audio system	HD
Built-in subwoofer	No
Built-in microphone	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Mobile network connection	No
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
WWAN	Not installed
Data network	Not supported
Cabling technology	10/100/1000Base-T(X)
SIM card support	No
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Micro-USB 2.0 ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Mini HDMI ports quantity	0
Micro HDMI ports quantity	0
Mini VGA ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Mini-USB 2.0 ports quantity	0
Modem (RJ-11) ports	0
S-Video port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel HM77 Express
Ambient light sensor	No
Electronic compass	No
GPS (satellite)	No
Orientation sensor	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Drivers included	Yes
Bundled software	Microsoft Office Starter, Bing Bar, Windows Live Essentials

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	65707
Processor code	SR0N8
Processor package size	31.0 x 24.0 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	2600 mAh
Battery life (max)	5 h

Power

Specification	Value
AC adapter power	40 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Fingerprint reader	No
Trusted Platform Module (TPM)	No

Certificates

Specification	Value
Wi-Fi certified	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.38 kg
Width	285 mm
Depth	202 mm
Height	27.4 mm

Packaging content

Specification	Value
Mouse included	No
AC adapter included	Yes
Bag included	No
Manual	Yes
Remote control included	No
Warranty card	Yes

Other features

Specification	Value
Infrared data port	No
3D	No
Assisted GPS (A-GPS)	No
Instant messaging (IM)	No
Intel Turbo Memory	0 GB
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
