Vertiv Avocent SV340-202 KVM switch Black

Vertiv Avocent SV340-202 KVM switch Black

Model SV340-202EAN 636430076379

52 specifications
  • Weight1.85 kg
  • ColourBlack
  • Number of computers controlled4
  • Ethernet LANNo
  • Maximum resolution2560 x 1600 pixels
  • Power sourceAC
See all specifications

Overview

Weight
1.85 kg
Colour
Black
Number of computers controlled
4
Ethernet LAN
No
Maximum resolution
2560 x 1600 pixels
Power source
AC
Brand
Vertiv
Category
KVM Switch
Model
SV340-202
Part number
SV340-202
EAN / UPC
636430076379
Also known as
Vertiv Avocent SV340-202 KVM switch Black

Specifications

52 specifications in 11 groups

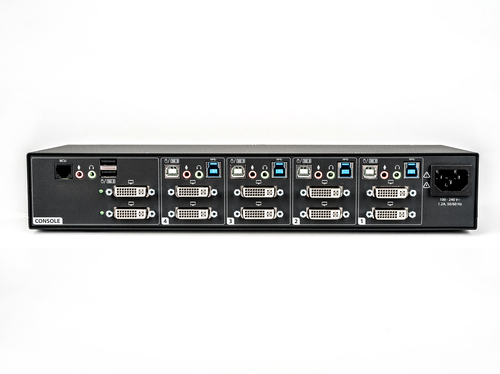

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
Display connectionYes
DVI-I ports quantity10
USB 2.0 Type-B ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity4
Console USB ports quantity2
Console ports3.5mm headphone, 3.5mm mic, DVI-I, USB A
USB 2.0 Type-A hub ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity3
USB connector typeUSB Type-A, USB Type-B
USB version2.0/3.2 Gen 1 (3.1 Gen 1)
Audio connectionsYes
Headphone outputs5
Number of microphone inputs5

Network

Ethernet LANNo

Performance

Maximum resolution2560 x 1600 pixels
Plug and PlayYes
Number of users1 user(s)

Design

Rack mountingNo
Product colourBlack
Housing materialPlastic, Steel
LED indicatorsYes
Display switch buttonYes
Push buttonYes
CertificationCE, RCM, FCC class B, VCCI, TUV US, TUV Canada

Display

Built-in displayNo

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1.2 A
Output current1.5 A
Compatible power plug typesEU
Power consumption (typical)35 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width342 mm
Depth125 mm
Height56 mm
Weight1.85 kg

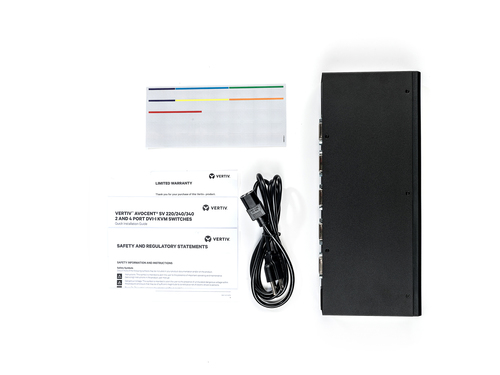

Packaging content

Drivers includedNo
ManualNo
Quick installation guideYes
Rack mount kitNo
Rubber feetYes
Software includedNo

Other features

Audio supportYes

Logistics data

Harmonized System (HS) code85176200
