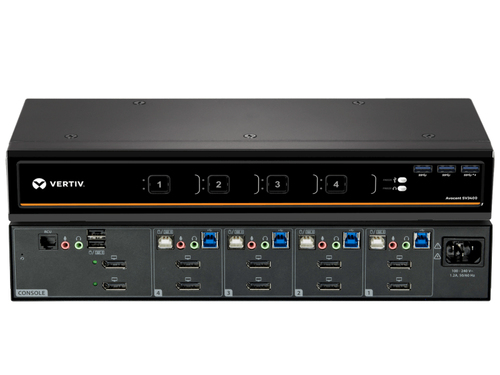

Vertiv Avocent SV340-001 KVM switch Black
Model SV340-001EAN 636430076331
29 specifications
- Weight1.85 kg
- ColourBlack
- Number of computers controlled4
- HD type4K Ultra HD
- Built-in displayNo
- Power consumption (typical)35 W
Overview
- Weight
- 1.85 kg
- Colour
- Black
- Number of computers controlled
- 4
- HD type
- 4K Ultra HD
- Built-in display
- No
- Power consumption (typical)
- 35 W
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- SV340-001
- Part number
- SV340-001
- EAN / UPC
- 636430076331
- Also known as
- Vertiv Avocent SV340-001 KVM switch Black
Specifications
29 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 8 |
| Console USB ports quantity | 3 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console DVI-I ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 5 |
| Number of microphone inputs | 5 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | RCM, EU, FCC Class B, VCCI, c-UL |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 35 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 342 mm |
| Depth | 127 mm |
| Height | 56 mm |
| Weight | 1.85 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
