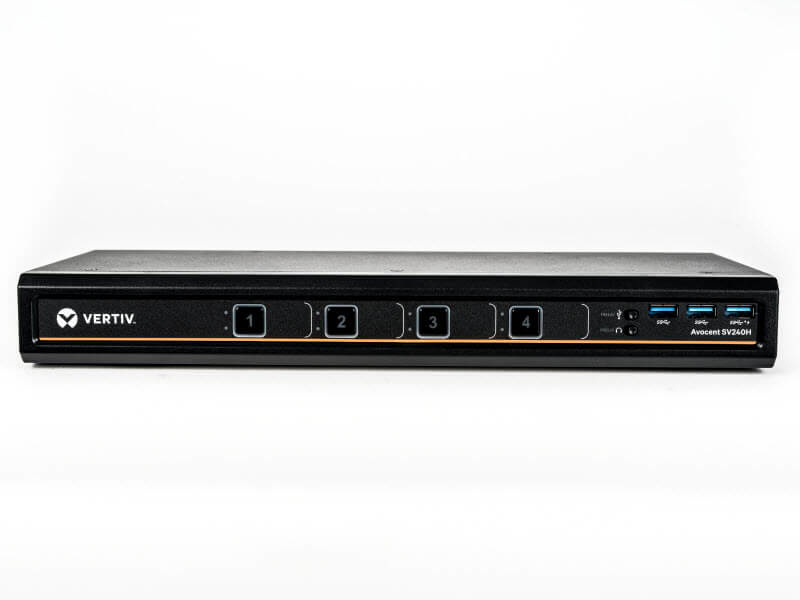

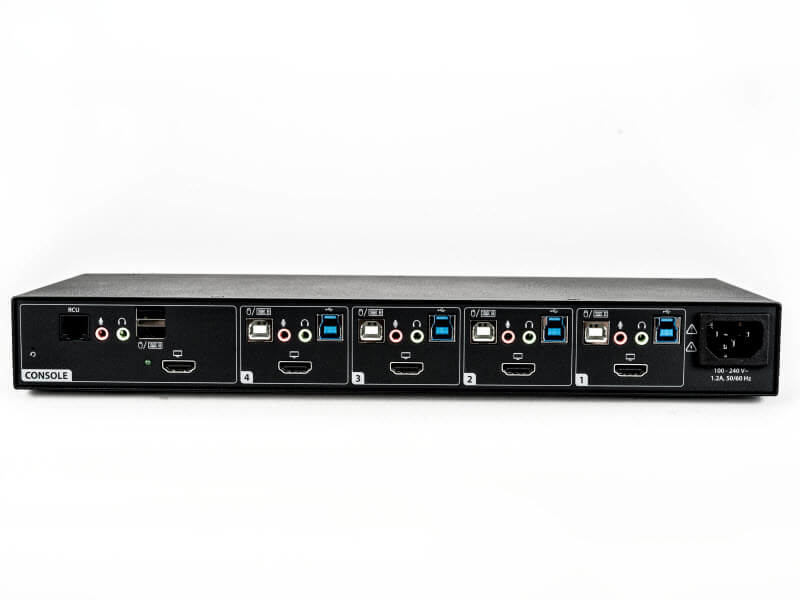

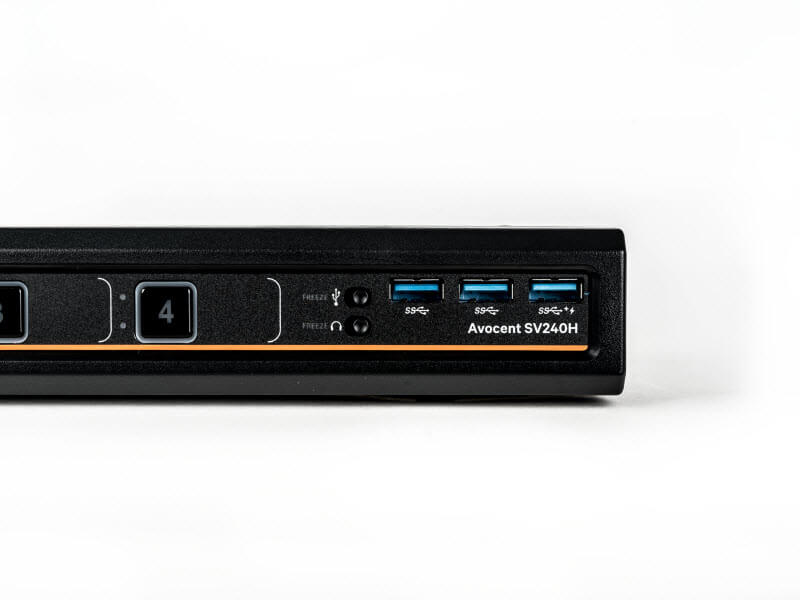

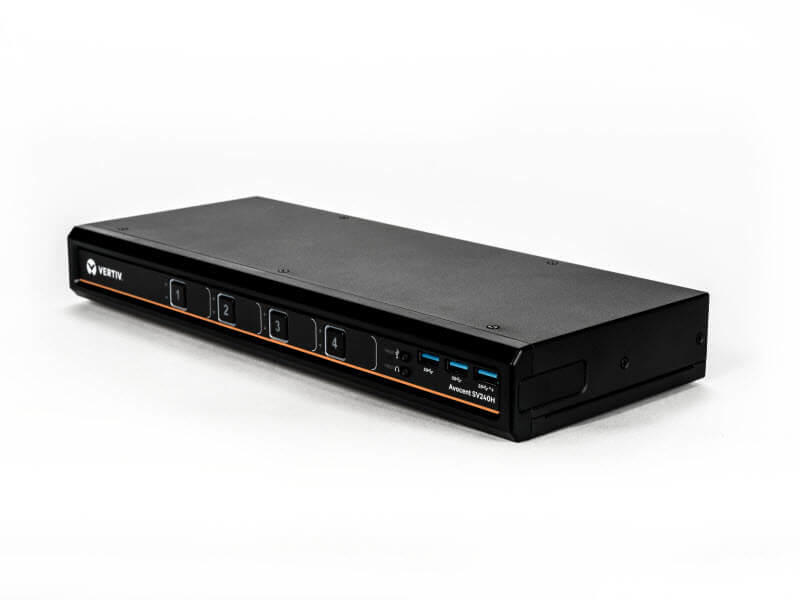

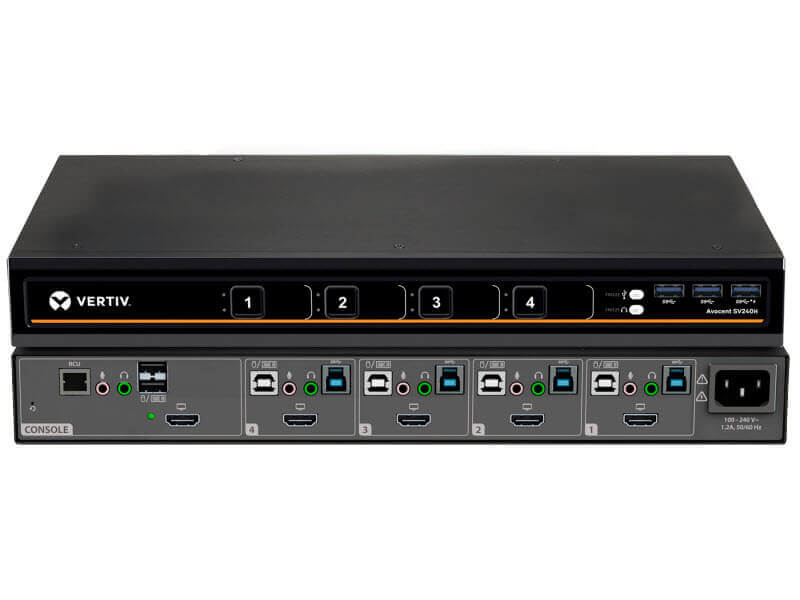

Vertiv Avocent SV240H-001 KVM switch Black
Model SV240H-001EAN 636430075808
33 specifications
- Weight1.5 kg
- ColourBlack
- Number of computers controlled4
- HD type4K Ultra HD
- Built-in displayNo
- Power sourceAC
Overview
- Weight
- 1.5 kg
- Colour
- Black
- Number of computers controlled
- 4
- HD type
- 4K Ultra HD
- Built-in display
- No
- Power source
- AC
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- SV240H-001
- Part number
- SV240H-001
- EAN / UPC
- 636430075808
- Also known as
- Vertiv Avocent SV240H-001 KVM switch Black
Specifications
33 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI version | 1.4 |
| Console USB ports quantity | 3 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console HDMI ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 5 |
| Number of microphone inputs | 5 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | FCC Class A, CE, TUV US, TUV Canada, RCM, VCCI |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100-240 V |
| Input current | 2.5 A |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 342 mm |
| Depth | 127 mm |
| Height | 42 mm |
| Weight | 1.5 kg |

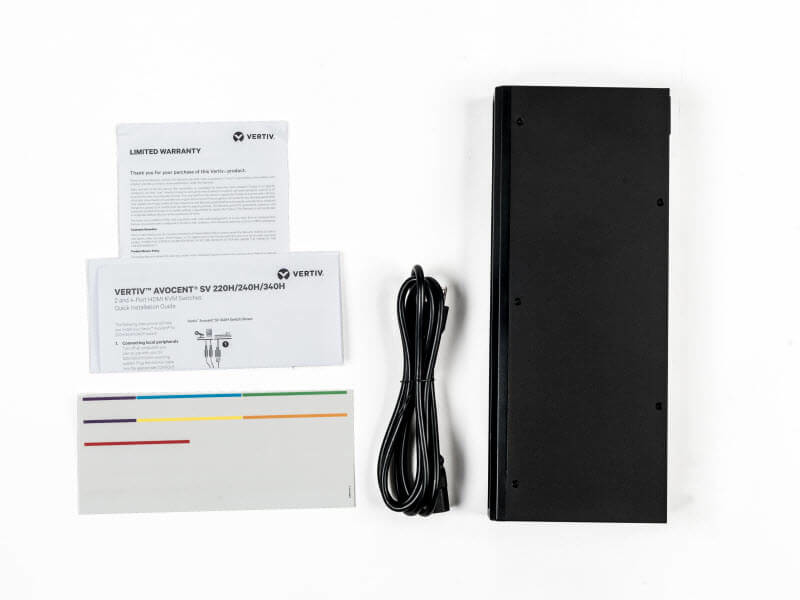

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
