Vertiv Avocent SV220D KVM Switch

Vertiv Avocent SV220D KVM Switch

Model SV220D-001EAN 636430075600

32 specifications
  • Weight500 g
  • ColourBlack
  • Number of computers controlled2
  • HD type4K Ultra HD
  • Built-in displayNo
  • Power sourceDC
See all specifications

Overview

Weight
500 g
Colour
Black
Number of computers controlled
2
HD type
4K Ultra HD
Built-in display
No
Power source
DC
Brand
Vertiv
Category
KVM Switch
Model
SV220D-001
Part number
SV220D-001
EAN / UPC
636430075600
Also known as
Vertiv Avocent SV220D KVM Switch

Specifications

32 specifications in 8 groups

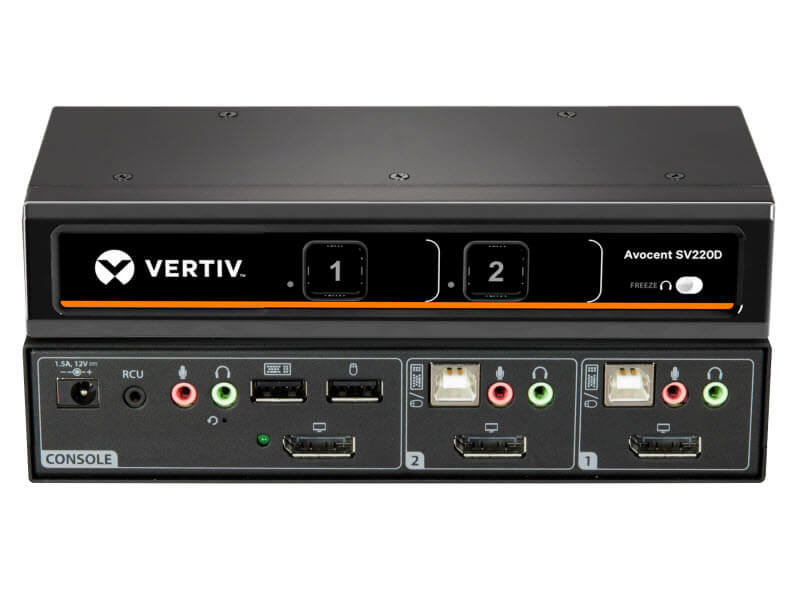

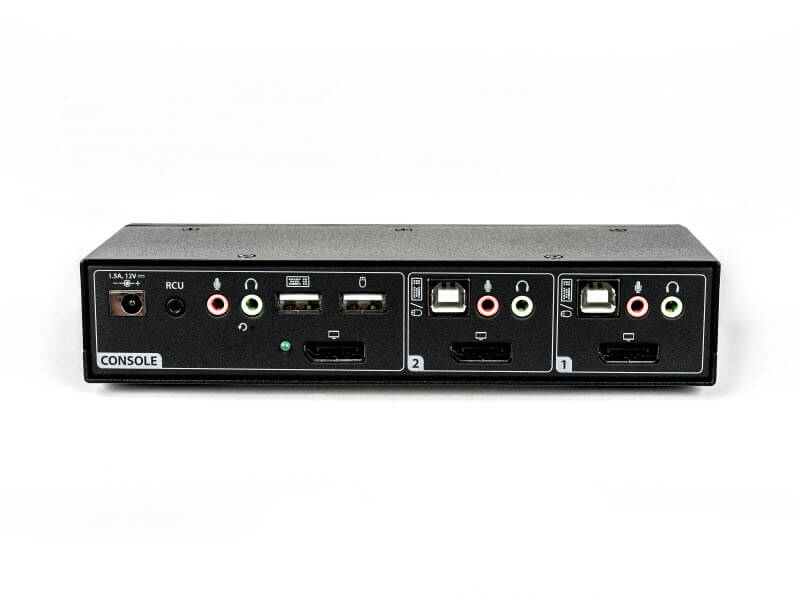

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity2
DisplayPort version1.2
Console USB ports quantity2
Console ports3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console DisplayPorts ports quantity1
Audio connectionsYes
Headphone outputs3
Number of microphone inputs3

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
Video bandwidth30 Hz

Design

Product colourBlack
CertificationCE, RCM, FCC class B, VCCI, TUV US, TUV Canada

Display

Built-in displayNo

Power

Power sourceDC
Input voltage12 V
Input current1.5 A
Power consumption (typical)35 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width177 mm
Depth61 mm
Height35 mm
Weight500 g

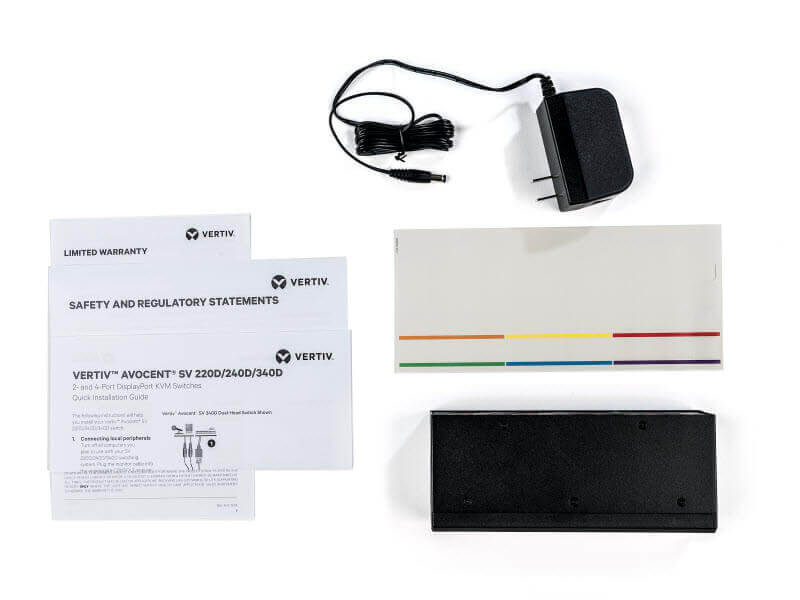

Packaging content

AC adapter includedYes
ManualYes
Quick installation guideYes
