Vertiv Avocent SV220-202 KVM switch Black

Vertiv Avocent SV220-202 KVM switch Black

Model SV220-202EAN 636430075945

50 specifications
  • Weight500 g
  • ColourBlack
  • Number of computers controlled2
  • Ethernet LANNo
  • Maximum resolution2560 x 1600 pixels
  • Power sourceAC
See all specifications

Overview

Weight
500 g
Colour
Black
Number of computers controlled
2
Ethernet LAN
No
Maximum resolution
2560 x 1600 pixels
Power source
AC
Brand
Vertiv
Category
KVM Switch
Model
SV220-202
Part number
SV220-202
EAN / UPC
636430075945
Also known as
Vertiv Avocent SV220-202 KVM switch Black

Specifications

50 specifications in 10 groups

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
HDMI ports quantity0
DVI-I ports quantity2
Console USB ports quantity2

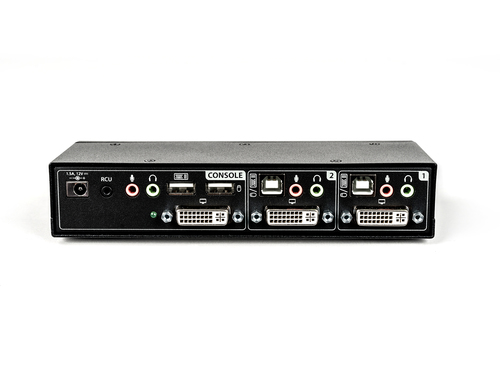

Console ports3.5mm headphone, 3.5mm mic, DVI-I, USB A, USB B
USB connector typeUSB Type-A, USB Type-B
USB version2.0
Audio connectionsYes
Headphone outputs2
Number of microphone inputs2
DC-in jackYes

Network

Ethernet LANNo

Performance

Maximum resolution2560 x 1600 pixels
Plug and PlayYes
Number of users1 user(s)

Design

Rack mountingNo
Product colourBlack
Housing materialPlastic, Steel
LED indicatorsYes
Display switch buttonYes
Push buttonYes
CertificationCE, RCM, FCC class B, VCCI, TUV US, TUV Canada

Display

Built-in displayNo

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output voltage12 V
Output current1.5 A
Compatible power plug typesEU
External power adapterYes
Power consumption (typical)35 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width177 mm
Depth61 mm
Height35 mm
Weight500 g

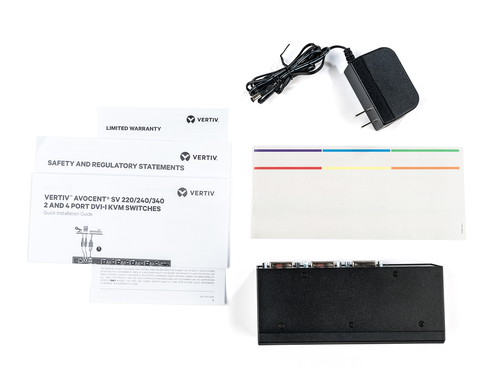

Packaging content

AC adapter includedYes
Drivers includedNo
ManualNo
Quick installation guideYes
Rack mount kitNo
Rubber feetYes
Software includedNo

Logistics data

Harmonized System (HS) code85176200
