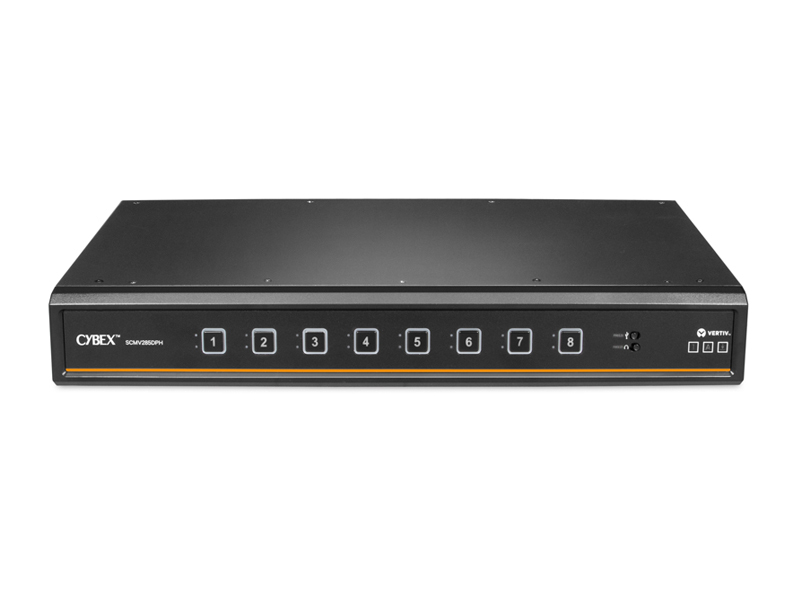

SCMV285DPH, Cybex Secure MultiViewer KVM Switch 8 port
Model SCMV285DPH-400EAN 636430089379
22 specifications
- Weight3.7 kg
- ColourBlack
- Keyboard port typeUSB
- HD type4K Ultra HD
- Power sourceAC
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 3.7 kg
- Colour
- Black
- Keyboard port type
- USB
- HD type
- 4K Ultra HD
- Power source
- AC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- SCMV285DPH-400
- Part number
- SCMV285DPH-400
- EAN / UPC
- 636430089379
- Also known as
- Vertiv SCMV285DPH, Cybex Secure MultiViewer KVM Switch 8 port
Specifications
22 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI/DisplayPort |
| USB 2.0 Type-B ports quantity | 2 |
| Console ports | DisplayPort, HDMI, USB A |
| Console HDMI ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 5 |
| Headphone outputs | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | FCC Class A, CE, TUV US, TUV Canada, RCM, VCCI |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 183 mm |
| Height | 66 mm |
| Weight | 3.7 kg |
