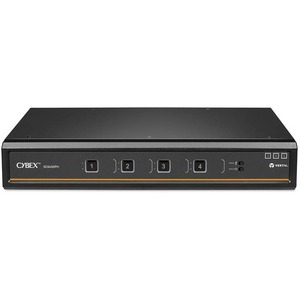

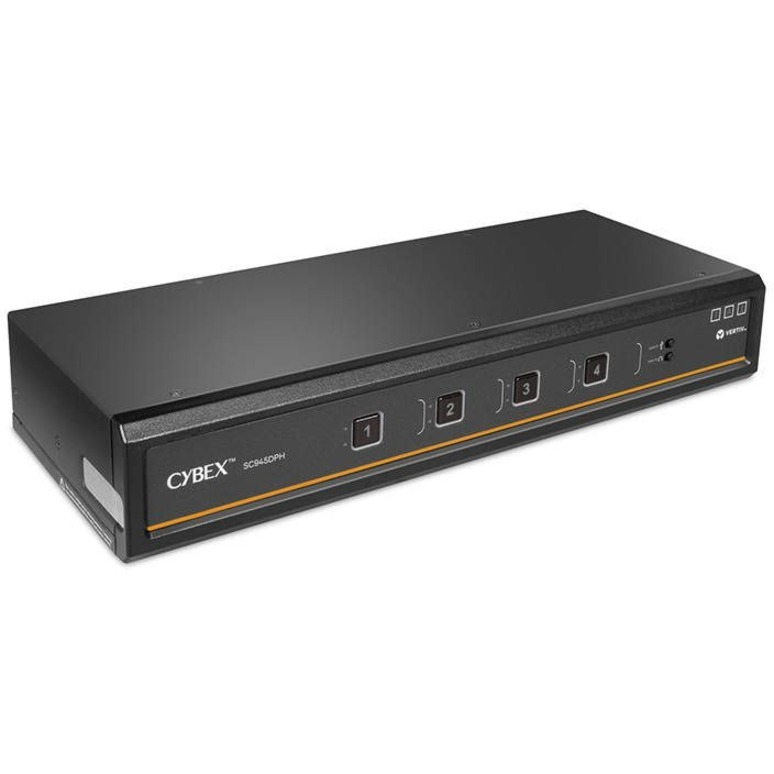

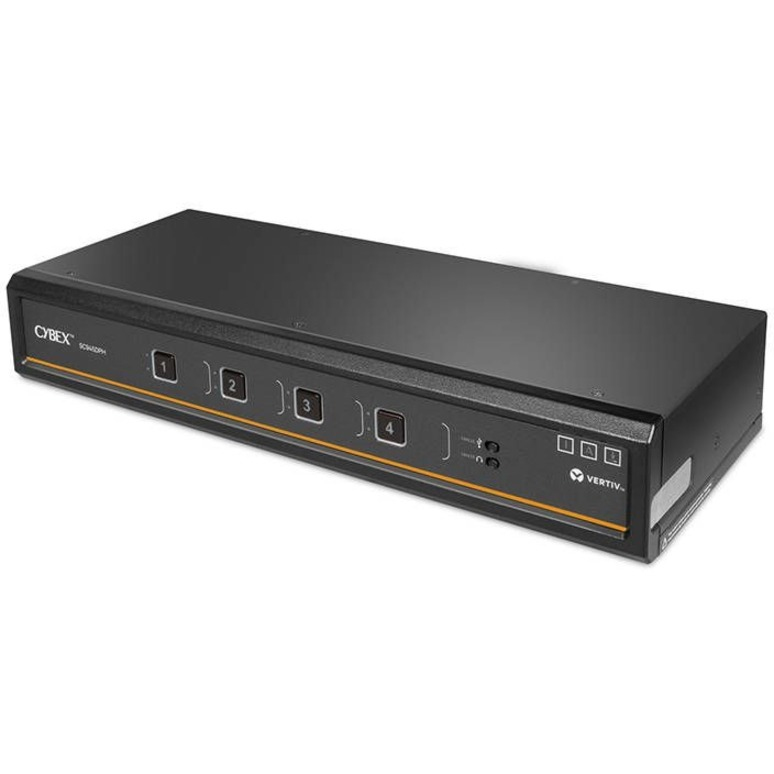

SC945DPH KVM switch Rack mounting Black
Model SC945DPHPart no. SC945DPH-400EAN 636430089645
22 specifications
- Weight1.9 kg
- ColourBlack
- Number of computers controlled4
- HD type4K Ultra HD
- Rack capacity1U
- Built-in displayNo
Overview
- Weight
- 1.9 kg
- Colour
- Black
- Number of computers controlled
- 4
- HD type
- 4K Ultra HD
- Rack capacity
- 1U
- Built-in display
- No
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- SC945DPH
- Part number
- SC945DPH-400
- EAN / UPC
- 636430089645
- Also known as
- Vertiv SC945DPH KVM switch Rack mounting Black
Specifications
22 specifications in 7 groups

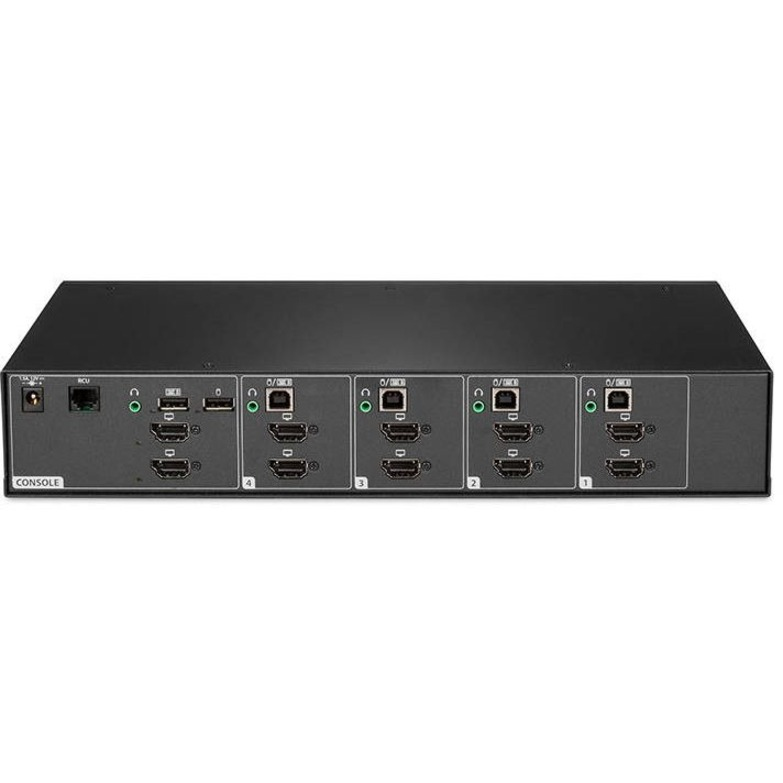

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI/DisplayPort |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Console ports | DisplayPort, PS/2, USB B |
| USB connector type | USB Type-A, USB Type-B |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 348 mm |
| Depth | 127 mm |
| Height | 56 mm |
| Weight | 1.9 kg |
