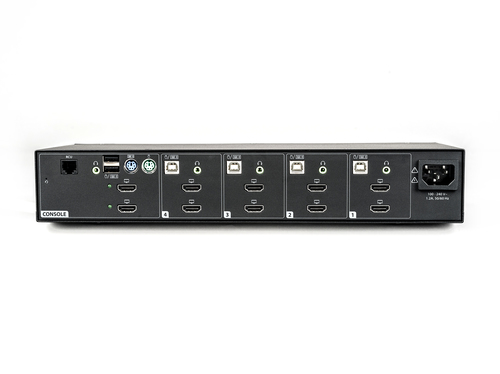

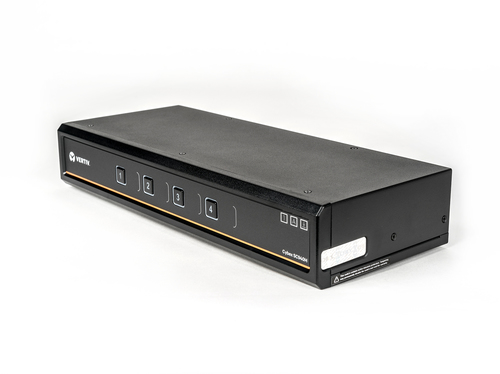

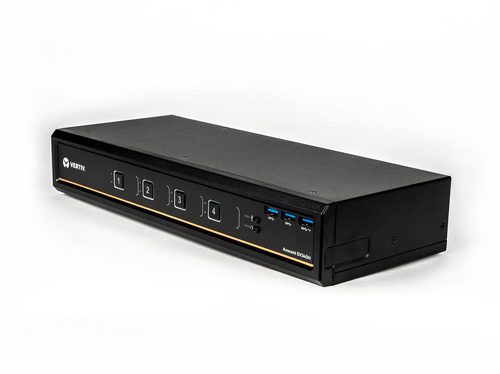

Vertiv Avocent SC940H KVM switch Black

Vertiv Avocent SC940H KVM switch Black

Model SC940H-201EAN 636430075235

53 specifications
  • Weight1.85 kg
  • ColourBlack
  • Number of computers controlled4
  • Ethernet LANNo
  • HD type4K Ultra HD
  • Rack mountingYes
See all specifications

Overview

Weight
1.85 kg
Colour
Black
Number of computers controlled
4
Ethernet LAN
No
HD type
4K Ultra HD
Rack mounting
Yes
Brand
Vertiv
Category
KVM Switch
Model
SC940H-201
Part number
SC940H-201
EAN / UPC
636430075235
Also known as
Vertiv Avocent SC940H KVM switch Black

Specifications

53 specifications in 10 groups

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Video port typeHDMI
HDMI ports quantity10
HDMI version1.4
Display connectionYes
USB 2.0 Type-B ports quantity4
Console USB ports quantity2
Console ports3.5mm headphone, 3.5mm mic, HDMI, PS/2, USB A
USB 2.0 ports quantity3
USB connector typeUSB Type-A, USB Type-B
USB version2.0/3.2 Gen 1 (3.1 Gen 1)
PS/2 ports quantity2
Audio connectionsYes
Headphone outputs5
Number of microphone inputs5

Network

Ethernet LANNo

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
Plug and PlayYes
Number of users1 user(s)
Firmware upgradeableNo

Design

Rack mountingYes
Product colourBlack
Housing materialPlastic, Steel
LED indicatorsYes
Display switch buttonYes
Push buttonYes
CertificationCE, RCM, FCC class B, VCCI, TUV US, TUV Canada

Display

Built-in displayNo

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1.2 A
Compatible power plug typesUK
Power consumption (typical)35 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width342 mm
Depth125 mm
Height56 mm
Weight1.85 kg

Packaging content

AC adapter includedNo
Drivers includedNo
ManualNo
Quick installation guideYes
Rack mount kitNo
Rubber feetYes
Software includedNo

Other features

Audio supportYes
