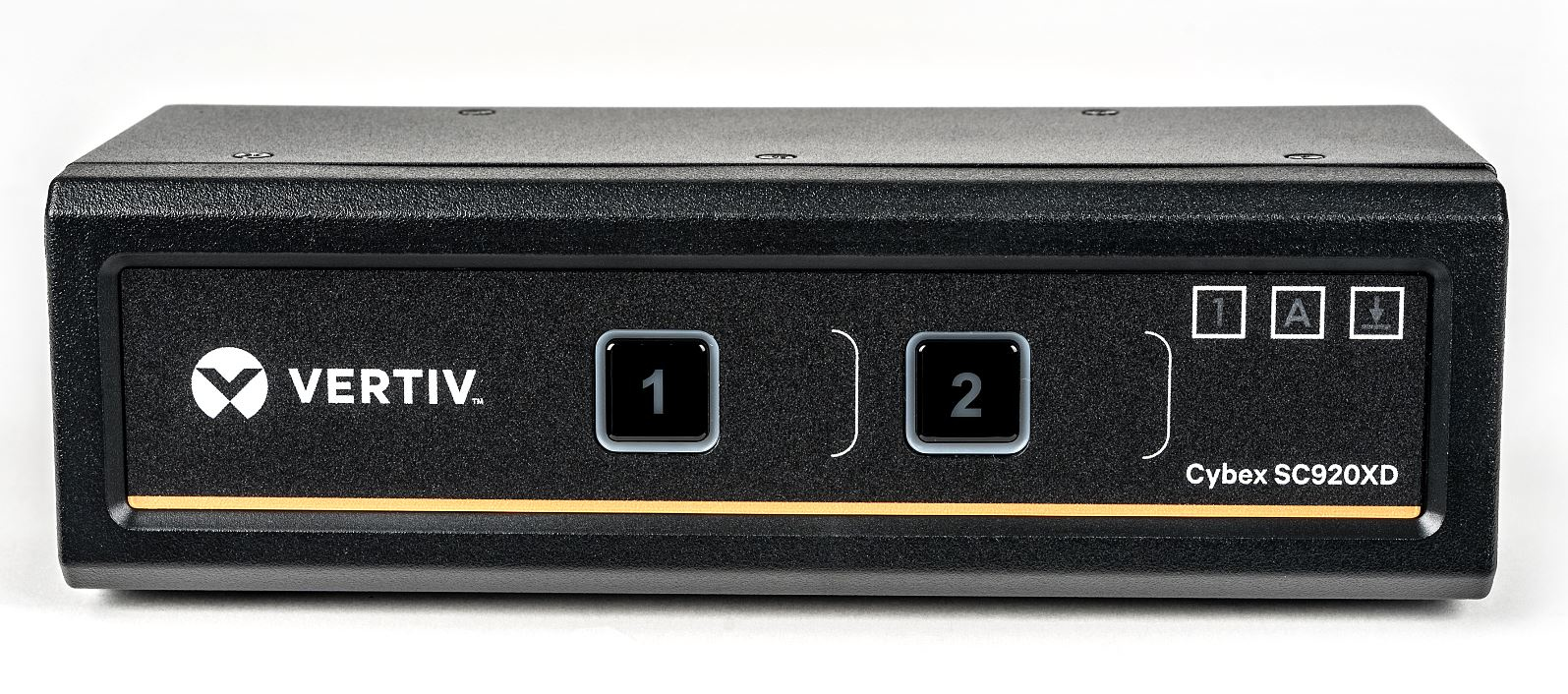

Vertiv Avocent SC920XD-202 KVM switch Black

Vertiv Avocent SC920XD-202 KVM switch Black

Model SC920XD-202EAN 636430082295

50 specifications
  • Weight500 g
  • ColourBlack
  • Number of computers controlled2
  • Ethernet LANNo
  • HD type4K Ultra HD
  • Rack mountingYes
See all specifications

Overview

Weight
500 g
Colour
Black
Number of computers controlled
2
Ethernet LAN
No
HD type
4K Ultra HD
Rack mounting
Yes
Brand
Vertiv
Category
KVM Switch
Model
SC920XD-202
Part number
SC920XD-202
EAN / UPC
636430082295
Also known as
Vertiv Avocent SC920XD-202 KVM switch Black

Specifications

50 specifications in 10 groups

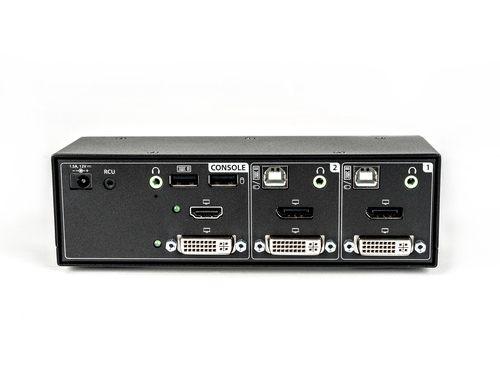

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
HDMI ports quantity1
DisplayPorts quantity2
DisplayPort version1.2
Console USB ports quantity2
USB 2.0 ports quantity4
USB connector typeUSB Type-A, USB Type-B
PS/2 ports quantity2
Audio connectionsYes
Headphone outputs3
DC-in jackYes

Network

Ethernet LANNo

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
Plug and PlayYes
Number of users1 user(s)
Firmware upgradeableNo

Design

Rack mountingYes
Product colourBlack
Housing materialPlastic, Steel
LED indicatorsYes
Display switch buttonYes
Push buttonYes
CertificationCE, RCM, FCC class B, VCCI, TUV US, TUV Canada

Display

Built-in displayNo

Power

Power sourceAC
Input voltage100 - 240, 12 V
AC input frequency50 - 60 Hz
Input current1.5 A
Output voltage12 V
Compatible power plug typesEU
Power consumption (typical)35 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width177 mm
Depth61 mm
Height42 mm
Weight500 g

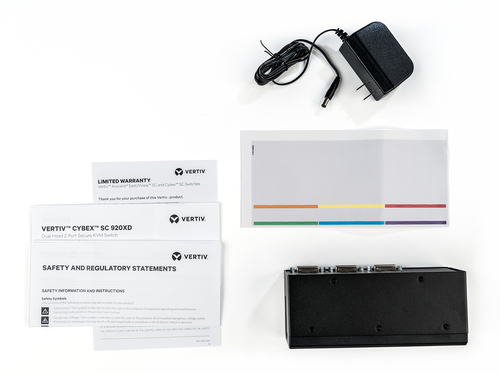

Packaging content

AC adapter includedYes
Drivers includedNo
ManualNo
Quick installation guideYes
Rack mount kitNo
Rubber feetYes
Software includedNo

Logistics data

Harmonized System (HS) code85176200
