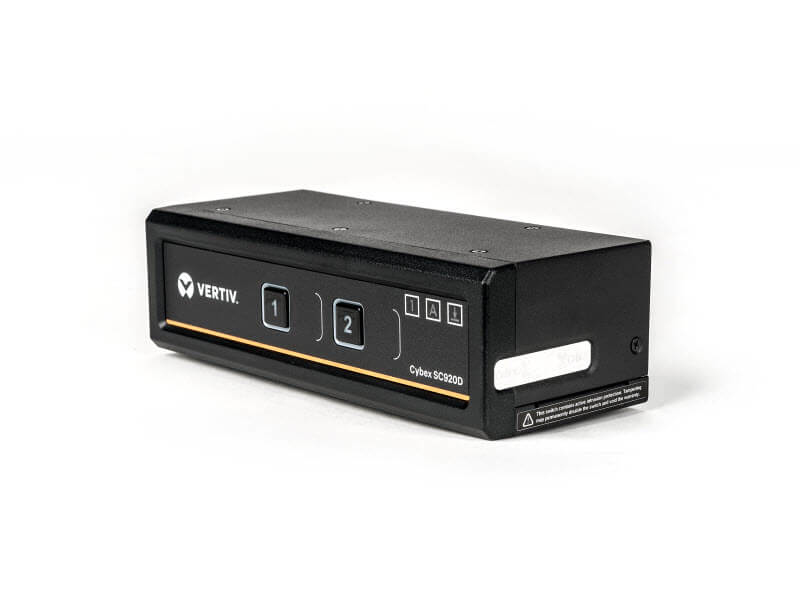

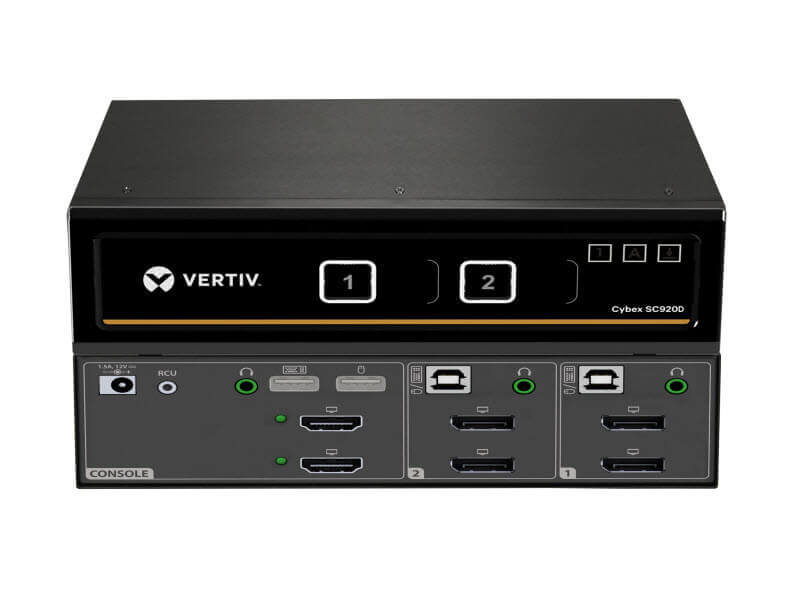

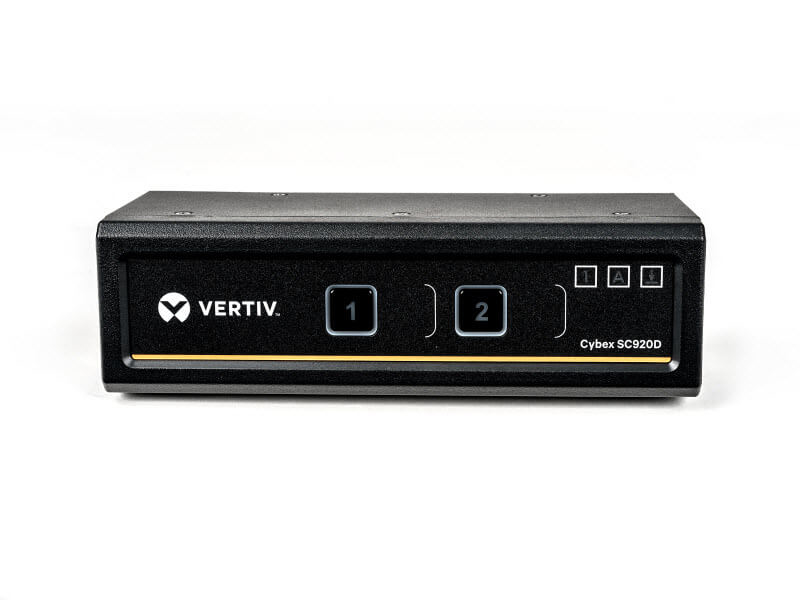

SC920D KVM switch Black
Model SC920DPart no. SC920D-001EAN 636430082158
29 specifications
- Weight700 g
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Rack mountingNo
- Power sourceAC
Overview
- Weight
- 700 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Power source
- AC
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- SC920D
- Part number
- SC920D-001
- EAN / UPC
- 636430082158
- Also known as
- Vertiv SC920D KVM switch Black
Specifications
29 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 2 |
| USB 2.0 Type-B ports quantity | 2 |
| Console USB ports quantity | 2 |

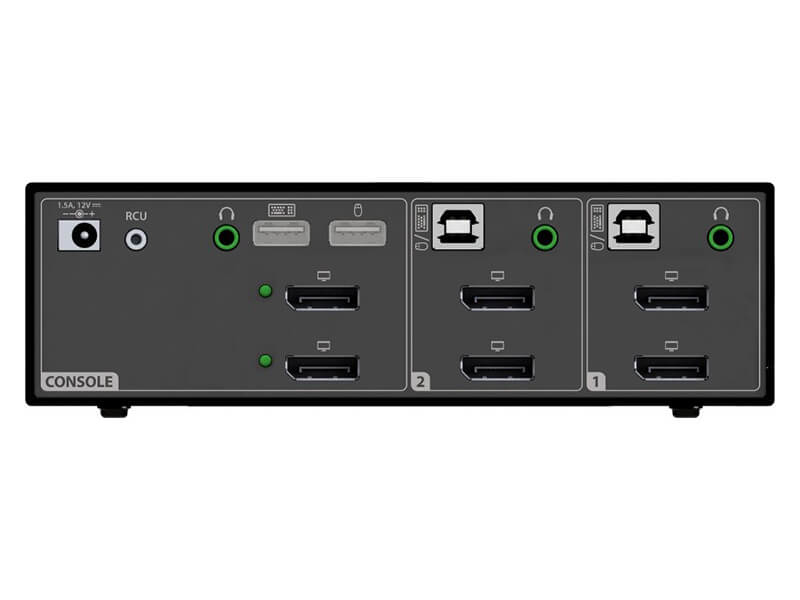

| Console ports | 3.5mm headphone, DisplayPort, USB A, USB B |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 2 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Output current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 61 mm |
| Height | 56 mm |
| Weight | 700 g |
