SC920-001 KVM switch Black
Model SC920-001EAN 636430082103
30 specifications
- Weight500 g
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Built-in displayNo
- Power sourceAC
Overview
- Weight
- 500 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Built-in display
- No
- Power source
- AC
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- SC920-001
- Part number
- SC920-001
- EAN / UPC
- 636430082103
- Also known as
- Vertiv SC920-001 KVM switch Black
Specifications
30 specifications in 8 groups

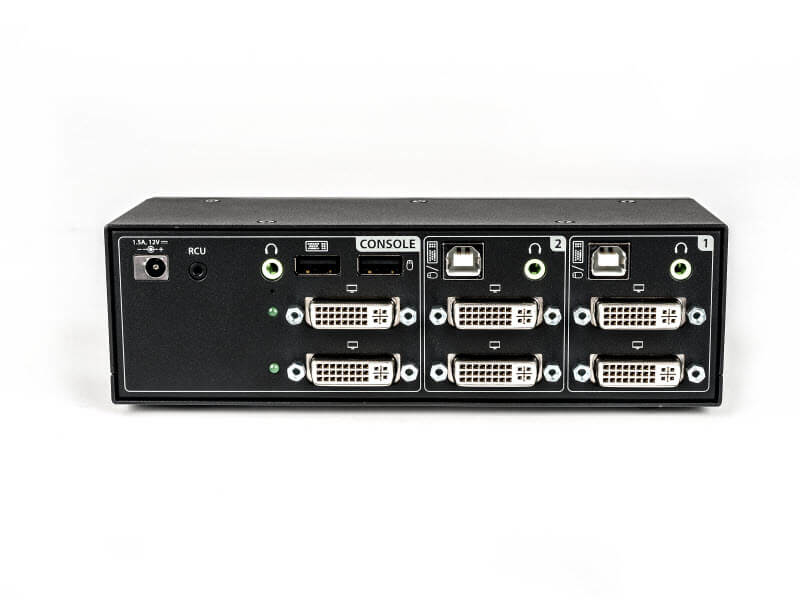

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 4 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, DVI-I, USB A |
| Console DVI-I ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | FCC class B, CE, TUV US, TUV Canada, RCM, VCCI |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100-240, 12 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.5 A |
| Power consumption (typical) | 35 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 61 mm |
| Height | 43 mm |
| Weight | 500 g |

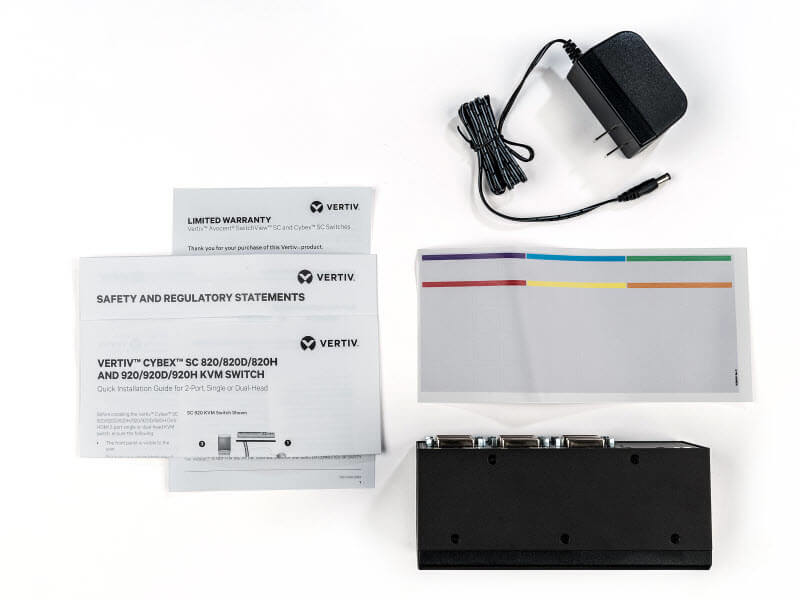

Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Rubber feet | Yes |
