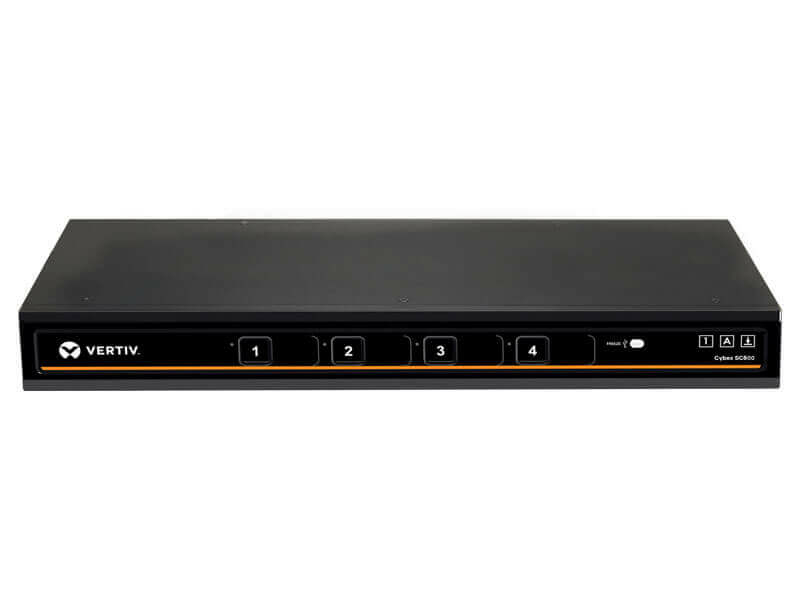

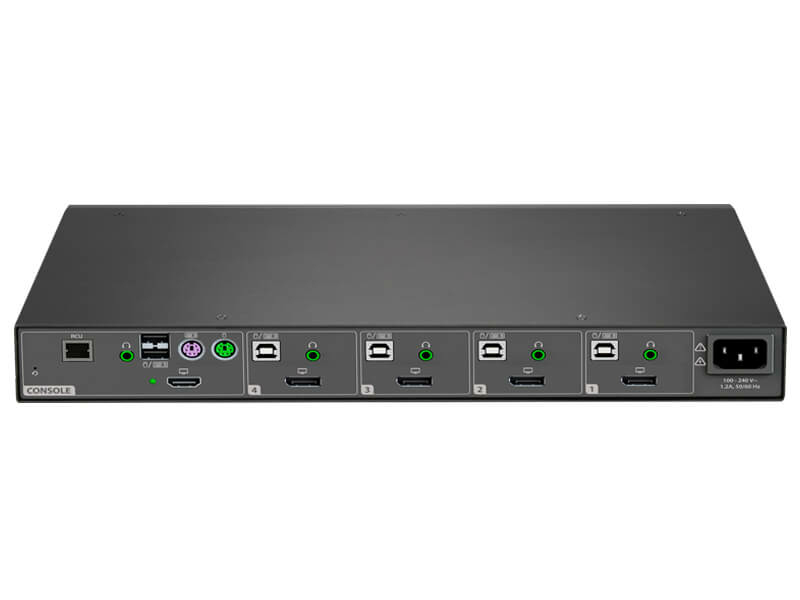

SC840DPH-400 KVM switch Black
Model SC840DPH-400EAN 636430089591
27 specifications
- Weight1.5 kg
- ColourBlack
- Keyboard port typeUSB
- HD type4K Ultra HD
- Rack mountingNo
- Power sourceAC
Overview
- Weight
- 1.5 kg
- Colour
- Black
- Keyboard port type
- USB
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Power source
- AC
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- SC840DPH-400
- Part number
- SC840DPH-400
- EAN / UPC
- 636430089591
- Also known as
- Vertiv SC840DPH-400 KVM switch Black
Specifications
27 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI/DisplayPort |
| DisplayPorts quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console DisplayPorts ports quantity | 1 |
| USB 2.0 Type-A hub ports quantity | 2 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Status |
| Certification | FCC class A, CE, TUV US, TUV Canada, RCM, VCCI |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| Input current | 2.5 A |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 348 mm |
| Depth | 127 mm |
| Height | 43 mm |
| Weight | 1.5 kg |
