Avocent SC820D-202 KVM switch Black
Model SC820D-202EAN 636430081991
51 specifications
- Weight700 g
- ColourBlack
- Number of computers controlled2
- Ethernet LANNo
- HD type4K Ultra HD
- Rack mountingYes
Overview
- Weight
- 700 g
- Colour
- Black
- Number of computers controlled
- 2
- Ethernet LAN
- No
- HD type
- 4K Ultra HD
- Rack mounting
- Yes
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- SC820D-202
- Part number
- SC820D-202
- EAN / UPC
- 636430081991, 5706998795731
- Also known as
- Vertiv Avocent SC820D-202 KVM switch Black
Specifications
51 specifications in 10 groups

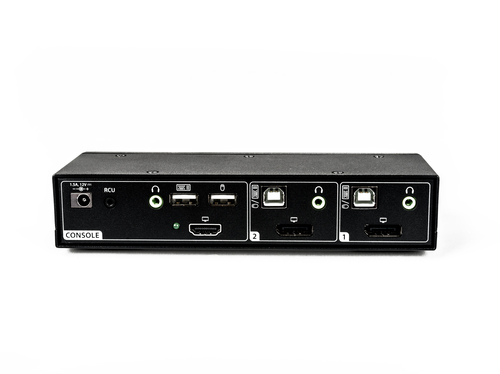

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI/DisplayPort |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| PS/2 ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Number of users | 1 user(s) |
| Firmware upgradeable | No |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Plastic, Steel |
| LED indicators | Yes |
| Display switch button | Yes |
| Push button | Yes |
| Certification | CE, RCM, FCC class B, VCCI, TUV US, TUV Canada |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240, 12 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.5 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Compatible power plug types | EU |
| Power consumption (typical) | 35 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 61 mm |
| Height | 43 mm |
| Weight | 700 g |

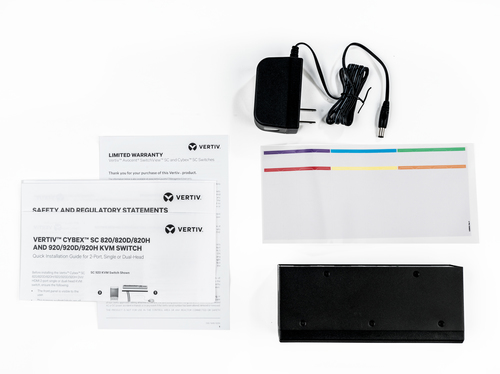

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Drivers included | No |
| Manual | No |
| Quick installation guide | Yes |
| Rack mount kit | No |
| Rubber feet | Yes |
| Software included | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
