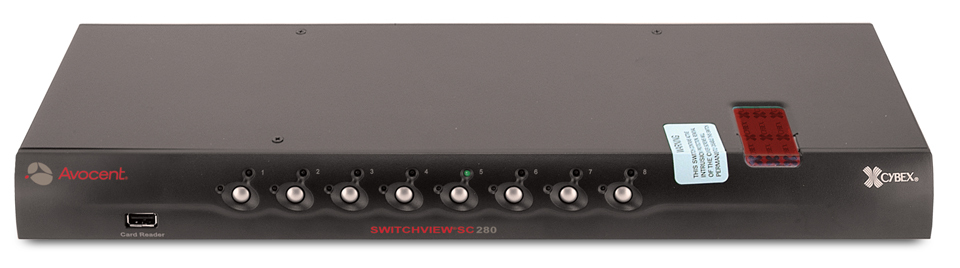

Avocent SC280 KVM switch
Model SC280Part no. SC280-202EAN 636430044033
12 specifications
- ConnectivityWired
- Weight1.7 kg
- Keyboard port typeUSB, PS/2
- Maximum resolution2048 x 1536 pixels
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 1.7 kg
- Keyboard port type
- USB, PS/2
- Maximum resolution
- 2048 x 1536 pixels
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- SC280
- Part numbers
- SC280-202, SC280-201, SC280-001
- EAN / UPC
- 636430044033, 636430044026, 636430043999, 6364300439996
- Also known as
- Vertiv Avocent SC280 KVM switch
Specifications
12 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
Design
| Specification | Value |
|---|---|
| Certification | CE, UL 60950-1, CSA C22.2 No 60950-1, EN60950 FCC Part 15 Class B, EN55022 Class B, EN55024, 61000-3-2, 61000-3-3, VCCI Class B, Ctick, CISPR22, ICES-003, NIAP Common Criteria EAL4+ |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.7 kg |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 430.2 x 137 x 43.6 mm |
| Ports quantity | 8 |
| Power requirements | 100 - 240V, 50/60Hz |
