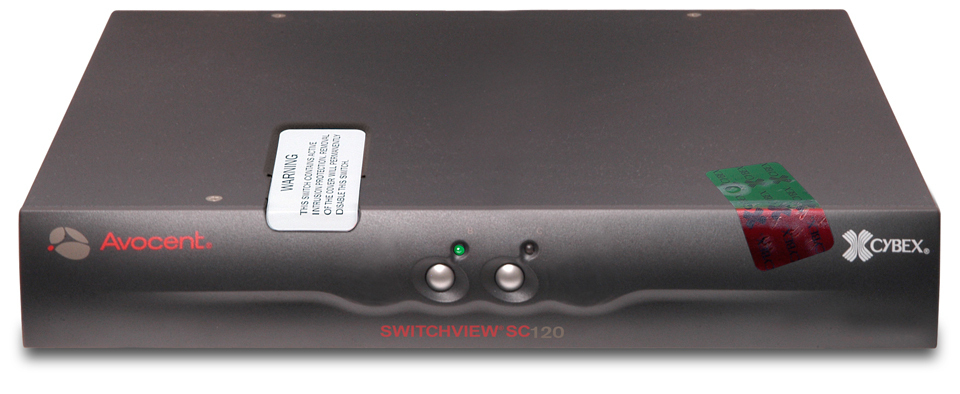

Avocent SC120 KVM switch
Model SC120Part no. SC120-001EAN 6364300437466
14 specifications
- ConnectivityWired
- Weight1.04 kg
- Number of computers controlled1
- Maximum resolution2048 x 1536 pixels
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 1.04 kg
- Number of computers controlled
- 1
- Maximum resolution
- 2048 x 1536 pixels
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- SC120
- Part numbers
- SC120-001, SC120-201, SC120-202
- EAN / UPC
- 6364300437466, 636430043777, 6364300437770, 6364300437848 +2 more
- Also known as
- Vertiv Avocent SC120 KVM switch
Specifications
14 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
Design
| Specification | Value |
|---|---|
| Certification | CE, UL 60950-1, CSA C22.2 No 60950-1, EN60950 FCC Part 15 Class B, EN55022 Class B, EN55024, 61000-3-2, 61000-3-3, VCCI Class B, Ctick, CISPR22, ICES-003, NIAP Common Criteria EAL4+ |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.04 kg |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 263.1 x 144.3 x 43.6 mm |
| Ports quantity | 2 |
| Power requirements | 100 - 240V, 50/60Hz |

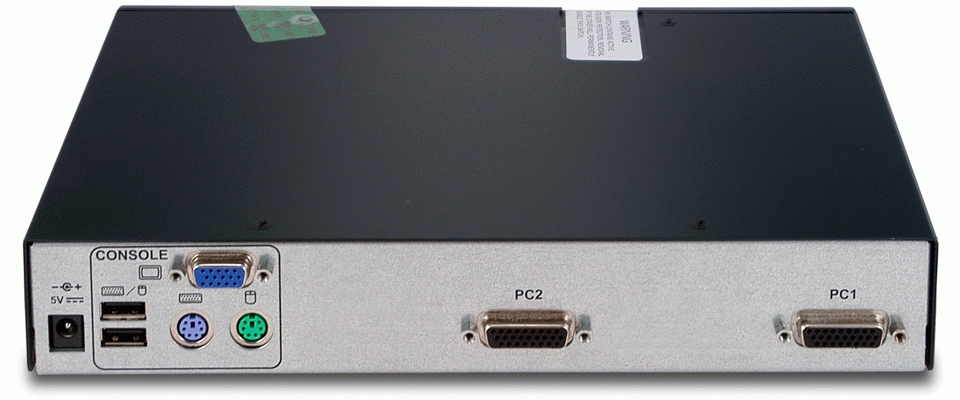

| I/O ports | 1 x 6 pin mini-DIN (PS/2 style) 1 x 6 pin mini-DIN (PS/2 style) 1 x 15 pin HD D-Sub (HD-15) USB |
