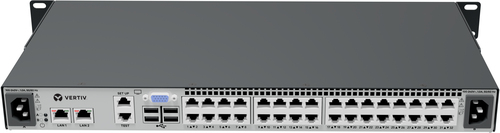

Avocent KVM-over-IP Switch 32-port, 4 digital KVM path, dual AC power supply, TAA
Model MPU2-4032DAC-400EAN 636430091150
28 specifications
- Weight3.18 kg
- ColourBlack
- Number of computers controlled32
- HD typeFull HD
- Rack capacity1U
- Built-in displayNo
Overview
- Weight
- 3.18 kg
- Colour
- Black
- Number of computers controlled
- 32
- HD type
- Full HD
- Rack capacity
- 1U
- Built-in display
- No
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- MPU2-4032DAC-400
- Part number
- MPU2-4032DAC-400
- EAN / UPC
- 636430091150
- Also known as
- Vertiv Avocent KVM-over-IP Switch 32-port, 4 digital KVM path, dual AC power supply, TAA
Specifications
28 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 32 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
| Console RJ-45 ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A |
| Serial ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | Full HD |
| Maximum resolution | 1920 x 1080 pixels |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Cable length | 2 m |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 40 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 431.8 mm |
| Depth | 234.2 mm |
| Height | 43.2 mm |
| Weight | 3.18 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 330 mm |
| Package depth | 530 mm |
| Package height | 206 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
