Avocent HMX6200T KVM switch Rack mounting Black
Model HMX6200T-202EAN 636430077307
50 specifications
- Weight1.1 kg
- ColourBlack
- Keyboard port typeUSB
- Ethernet LANYes
- HD type2K Ultra HD
- Rack capacity1U
Overview
- Weight
- 1.1 kg
- Colour
- Black
- Keyboard port type
- USB
- Ethernet LAN
- Yes
- HD type
- 2K Ultra HD
- Rack capacity
- 1U
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- HMX6200T-202
- Part number
- HMX6200T-202
- EAN / UPC
- 636430077307
- Also known as
- Vertiv Avocent HMX6200T KVM switch Rack mounting Black
Specifications
50 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| DVI-D ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-B |
| Serial port type | DE-9 (DB-9) |
| Serial ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | 2K Ultra HD |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Plug and Play | Yes |
| Number of users | 16 user(s) |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, UL |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.8 A |
| Output voltage | 5 V |
| Compatible power plug types | EU |
| External power adapter | Yes |
| Power consumption (typical) | 20 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 198 mm |
| Depth | 150 mm |
| Height | 44 mm |
| Weight | 1.1 kg |

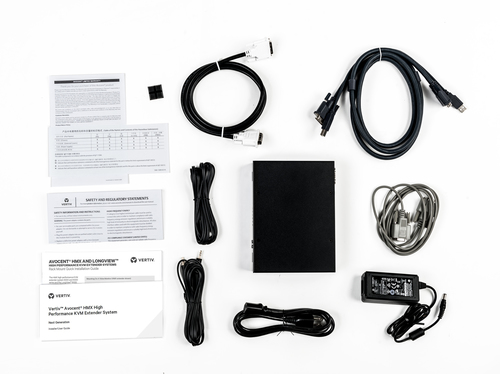

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Audio (3.5mm), DVI, Serial, USB |
| AC adapter included | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
