Vertiv Avocent HMX5100R KVM switch Rack mounting Blue

Vertiv Avocent HMX5100R KVM switch Rack mounting Blue

Model HMX5100R-202EAN 636430077505

51 specifications
  • Weight1.1 kg
  • ColourBlue
  • Number of computers controlled1
  • Ethernet LANYes
  • HD typeFull HD
  • Rack capacity1U
See all specifications

Overview

Weight
1.1 kg
Colour
Blue
Number of computers controlled
1
Ethernet LAN
Yes
HD type
Full HD
Rack capacity
1U
Brand
Vertiv
Category
KVM Switch
Model
HMX5100R-202
Part number
HMX5100R-202
EAN / UPC
636430077505, 7612205047839
Also known as
Vertiv Avocent HMX5100R KVM switch Rack mounting Blue

Specifications

51 specifications in 10 groups

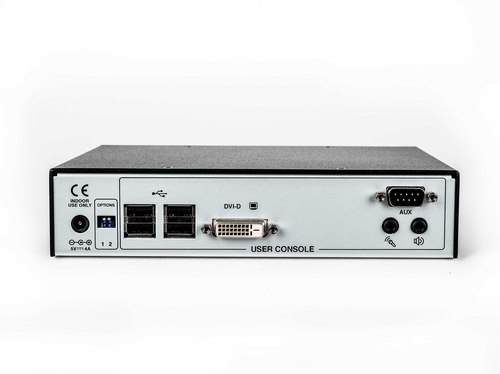

Ports & interfaces

Number of computers controlled1
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-D
Display connectionYes
DVI-D ports quantity1
USB hubYes
USB 2.0 Type-A hub ports quantity4
USB 2.0 ports quantity4
USB connector typeUSB Type-A
Serial port typeDE-9 (DB-9)
Serial ports quantity1
Audio connectionsYes
Headphone outputs1
Number of microphone inputs1
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Performance

HD typeFull HD
Maximum resolution1920 x 1200 pixels
Video bandwidth60 Hz
Plug and PlayYes
Number of users16 user(s)
Firmware upgradeableYes

Design

Rack capacity1U
Rack mountingYes
Product colourBlue
Housing materialMetal

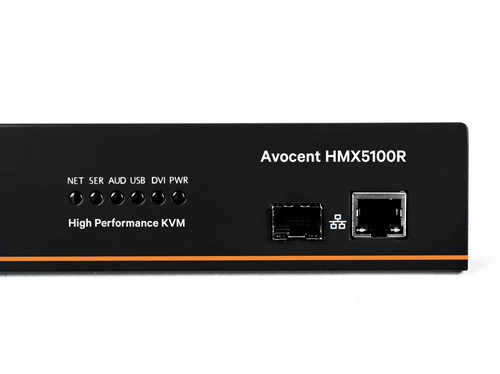

LED indicatorsYes
Hot keysYes
CertificationCE, FCC, UL

Display

Built-in displayNo
On Screen Display (OSD)Yes

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current0.8 A
Compatible power plug typesEU
External power adapterYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Width198 mm
Depth150 mm
Height44 mm
Weight1.1 kg

Packaging content

AC adapter includedYes
ManualYes
Quick installation guideYes

Logistics data

Harmonized System (HS) code85176200
