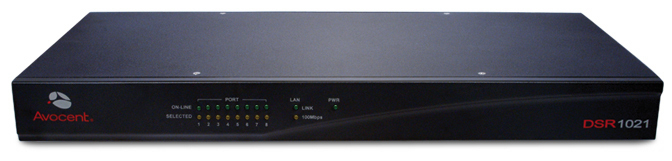

DSR1021 KVM switch Rack mounting
Model DSR1021Part no. DSR1021-G01EAN 636430035123
19 specifications
- ConnectivityWired
- Weight3.6 kg
- Number of computers controlled8
- Maximum resolution1600 x 1280 pixels
- Rack capacity1U
- Power consumption (typical)25 W
Overview
- Connectivity
- Wired
- Weight
- 3.6 kg
- Number of computers controlled
- 8
- Maximum resolution
- 1600 x 1280 pixels
- Rack capacity
- 1U
- Power consumption (typical)
- 25 W
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- DSR1021
- Part numbers
- DSR1021-G01, DSR1021-001, DSR1021
- EAN / UPC
- 636430035123, 636430020006
- Also known as
- Vertiv DSR1021 KVM switch Rack mounting
Specifications
19 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1600 x 1280 pixels |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 25 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.6 kg |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Compatible operating systems | Microsoft Windows 2000, NT |
| Compliance industry standards | EN55022 Class A,EN55024,EN6200-3-2,EN6100-3-3,FCC15 |
| Dimensions (WxDxH) | 431.8 x 279.4 x 44.5 mm |
| Management protocols | SNMP |
| Ports quantity | 8 |
| Power requirements | 100 - 240V |

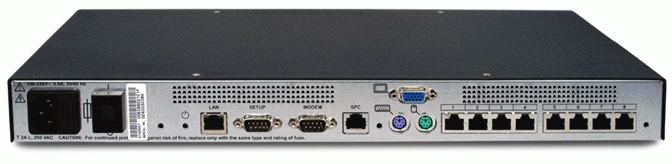

| I/O ports | 1 x keyboard PS/2 1 x mouse PS/2 1 x VGA - 15 pin HD D-Sub (HD-15) 1 x RJ-45 1 x serial - RS-232 |
