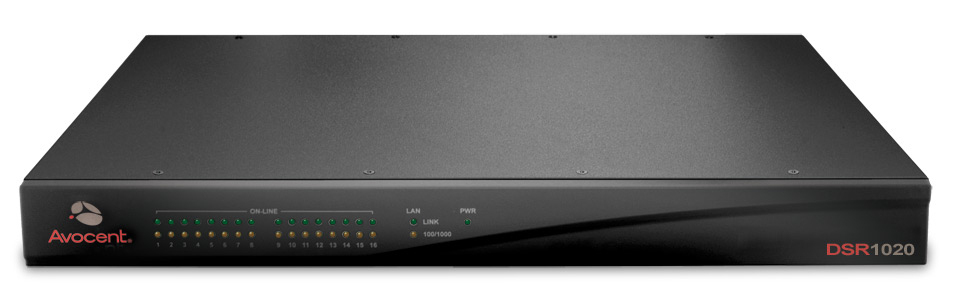

DSR1020 KVM switch Black
Model DSR1020Part no. DSR1020-G01EAN 636430021867
19 specifications
- ConnectivityWired
- Weight3.31 kg
- ColourBlack
- Number of computers controlled16
- Maximum resolution1600 x 1200 pixels
- Power consumption (typical)40 W
Overview
- Connectivity
- Wired
- Weight
- 3.31 kg
- Colour
- Black
- Number of computers controlled
- 16
- Maximum resolution
- 1600 x 1200 pixels
- Power consumption (typical)
- 40 W
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- DSR1020
- Part numbers
- DSR1020-G01, DSR1020-001, DSR1020-201
- EAN / UPC
- 636430021867, 636430035116, 636430021775
- Also known as
- Vertiv DSR1020 KVM switch Black
Specifications
19 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 16 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1600 x 1200 pixels |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 40 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.31 kg |
Other features
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet |
| Connectivity technology | Wired |
| Compatibility | PCs |
| Dimensions (WxDxH) | 431.8 x 279.8 x 43.7 mm |
| Ports quantity | 16 |
| Power requirements | 100 - 240 VAC |
| Safety | UL, FCC, cUL, ICES-003, CE, GS, VCCI, MIC, C-Tick, GOST |

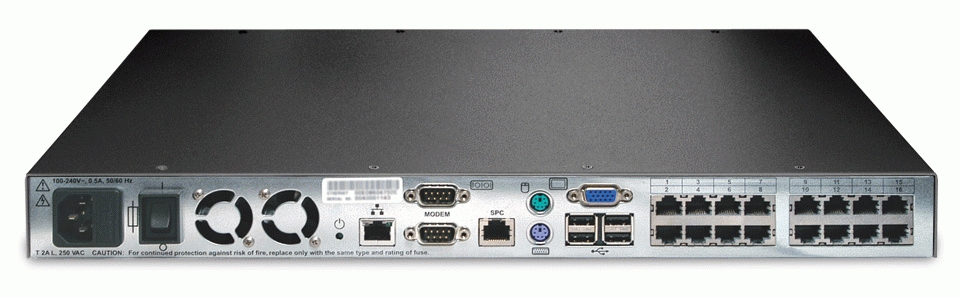

| I/O ports | 16 x KVM RJ45 1 x Ethernet 10/100/1000 RJ-45 1 x management RS-232 1 x serial RS-232 5 x USB 1 x management RJ-45 |
