Vertiv Cybex SC 840D

Vertiv Cybex SC 840D

Model Cybex SC 840DPart no. SC840D-001EAN 636430074900

40 specifications
  • Weight1.5 kg
  • ColourBlack
  • Number of computers controlled4
  • HD type4K Ultra HD
  • Rack capacity1U
  • Built-in displayNo
See all specifications

Overview

Weight
1.5 kg
Colour
Black
Number of computers controlled
4
HD type
4K Ultra HD
Rack capacity
1U
Built-in display
No
Brand
Vertiv
Category
KVM Switch
Model
Cybex SC 840D
Part number
SC840D-001
EAN / UPC
636430074900
Also known as
Vertiv SC840D Cybex SC800 Series Secure Desktop KVM Switch, 4 Port, DP & HDMI

Specifications

40 specifications in 7 groups

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
HDMI ports quantity1
HDMI version1.4
DisplayPorts quantity4
DisplayPort version1.2
USB 2.0 Type-B ports quantity4
Console USB ports quantity6

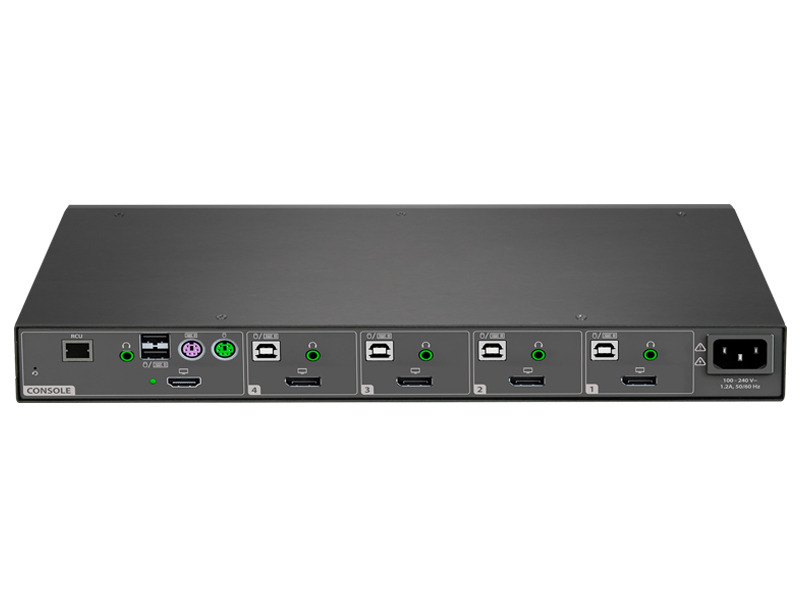

Console ports3.5mm headphone, DisplayPort, HDMI, PS/2, USB A, USB B
USB 2.0 Type-A hub ports quantity2
USB connector typeUSB Type-A, USB Type-B
PS/2 ports quantity2
Audio connectionsYes
Headphone outputs1

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
Video bandwidth30 Hz

Design

Rack capacity1U
Rack mountingYes
Product colourBlack
LED indicatorsYes
Hot keysYes
CertificationCE, RCM, FCC class B, VCCI, TUV US, TUV Canada

Display

Built-in displayNo

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1.2 A
External power adapterNo
Power consumption (typical)35 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width348 mm
Depth127 mm
Height43.2 mm
Weight1.5 kg
