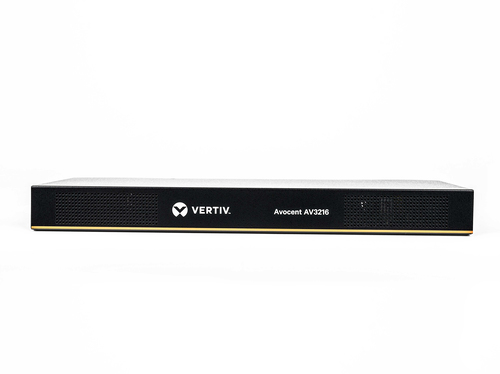

Vertiv Avocent AV 3216 KVM switch Rack mounting Black
Model AV3216-202EAN 636430080390
46 specifications
- Weight2 kg
- ColourBlack
- Number of computers controlled16
- Ethernet LANYes
- Maximum resolution1680 x 1050 pixels
- Rack capacity1U
Overview
- Weight
- 2 kg
- Colour
- Black
- Number of computers controlled
- 16
- Ethernet LAN
- Yes
- Maximum resolution
- 1680 x 1050 pixels
- Rack capacity
- 1U
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- AV3216-202
- Part number
- AV3216-202
- EAN / UPC
- 636430080390
- Also known as
- Vertiv Avocent AV 3216 KVM switch Rack mounting Black
Specifications
46 specifications in 11 groups

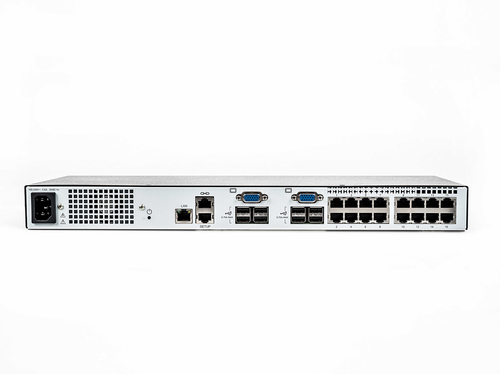

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 16 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Display connection | Yes |
| Console ports | RJ–45 |
| USB 2.0 ports quantity | 4 |
| USB version | 2.0 |
| Audio connections | No |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Security algorithms | 3DES, 128-bit AES, AES, DES |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1680 x 1050 pixels |
| Video bandwidth | 60 Hz |
| Number of users | 1 user(s) |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Cascadable | Yes |
| Hot keys | Yes |
| Cable lock slot | No |
| Certification | UL, FCC Cl. A, cUL, ICES Cl. A, CE, EAC, VCCI |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.6 A |
| Compatible power plug types | EU |
| Power consumption (typical) | 18 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 165 mm |
| Height | 43.7 mm |
| Weight | 2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |

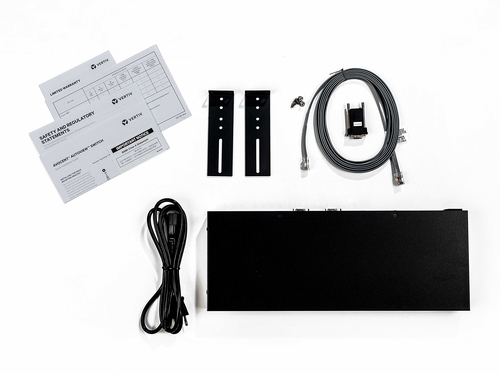

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
Compare Vertiv Avocent AV 3216 KVM switch Rack mounting Black

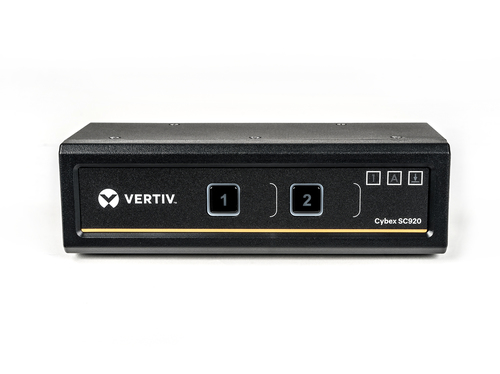

Compare any products- Vertiv Avocent AV 3216 KVM switch Rack mounting Black vsVertiv Avocent SC920-201 KVM switch BlackCompare specs

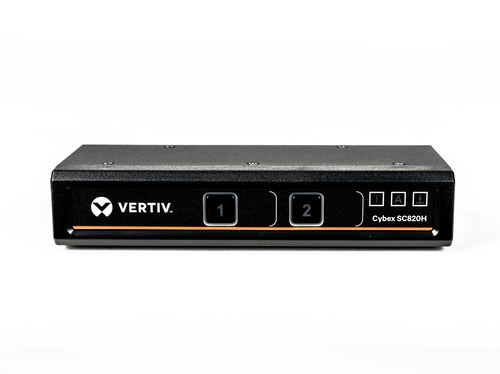

- Vertiv Avocent AV 3216 KVM switch Rack mounting Black vsVertiv Avocent SC820H-201 KVM switch BlackCompare specs

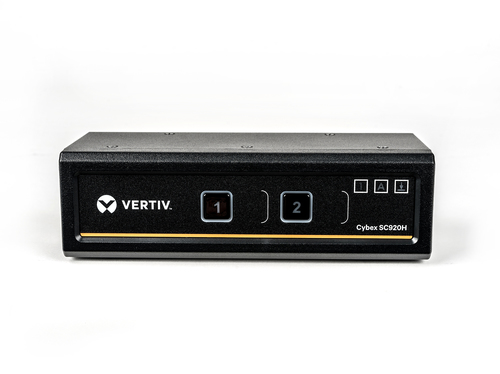

- Vertiv Avocent AV 3216 KVM switch Rack mounting Black vsVertiv Avocent SC920H-201 KVM switch BlackCompare specs

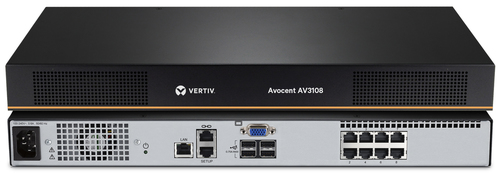

- Vertiv Avocent AV 3216 KVM switch Rack mounting Black vsVertiv Avocent AV 3108 KVM switch Rack mounting BlackCompare specs

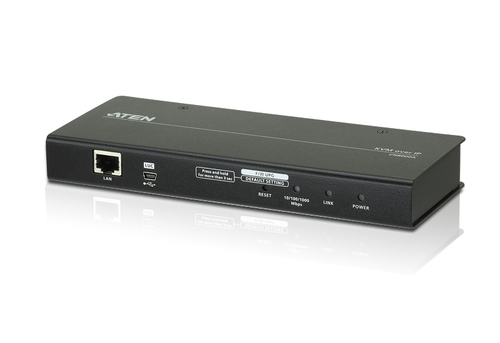

- Vertiv Avocent AV 3216 KVM switch Rack mounting Black vsATEN Over IP Control unit (KVM + Serial), with Virtual Media SupportCompare specs

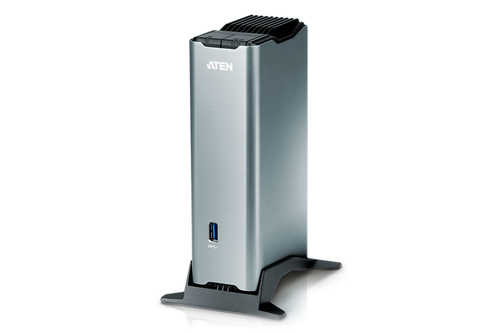

- Vertiv Avocent AV 3216 KVM switch Rack mounting Black vsATEN US7220 KVM switch GreyCompare specs

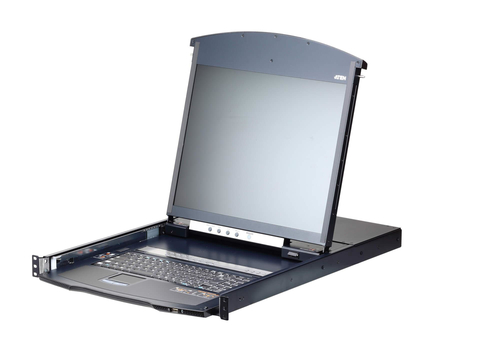

- Vertiv Avocent AV 3216 KVM switch Rack mounting Black vsATEN KL1116VN KVM switch Rack mounting BlackCompare specs

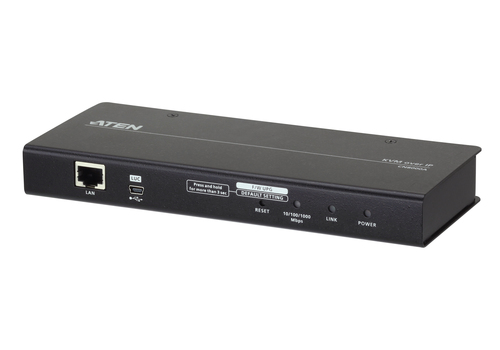

- Vertiv Avocent AV 3216 KVM switch Rack mounting Black vsATEN CN8000A KVM switch BlackCompare specs
