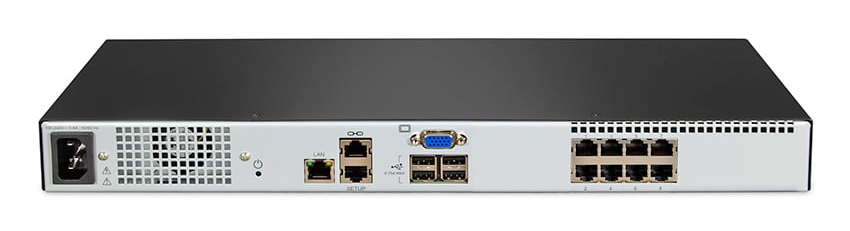

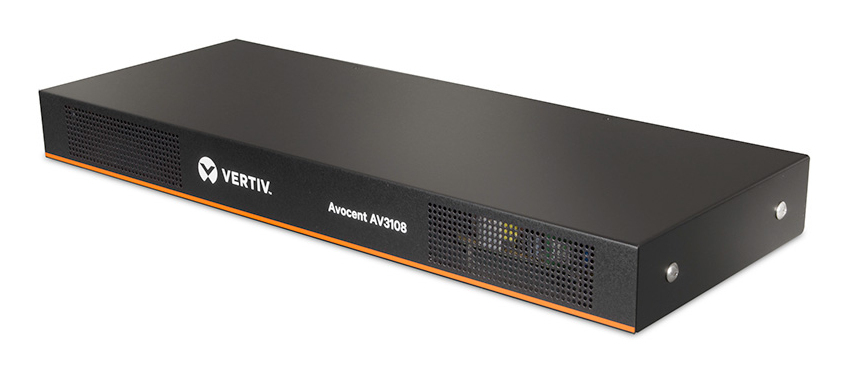

Avocent AV3108-400 KVM switch Rack mounting Black
Model AV3108-400EAN 636430089294
21 specifications
- Weight1.9 kg
- ColourBlack
- Number of computers controlled8
- Maximum resolution1920 x 1080 pixels
- Rack capacity1U
- Input voltage100 - 240 V
Overview
- Weight
- 1.9 kg
- Colour
- Black
- Number of computers controlled
- 8
- Maximum resolution
- 1920 x 1080 pixels
- Rack capacity
- 1U
- Input voltage
- 100 - 240 V
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- AV3108-400
- Part number
- AV3108-400
- EAN / UPC
- 636430089294
- Also known as
- Vertiv Avocent AV3108-400 KVM switch Rack mounting Black
Specifications
21 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D/HDMI/VGA |
| Console ports | RJ–45, VGA (D-Sub), USB A |
| USB 2.0 Type-A hub ports quantity | 4 |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Number of users | 1 user(s) |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5 A |
| Power consumption (typical) | 18 W |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 165 mm |
| Height | 43.7 mm |
| Weight | 1.9 kg |
