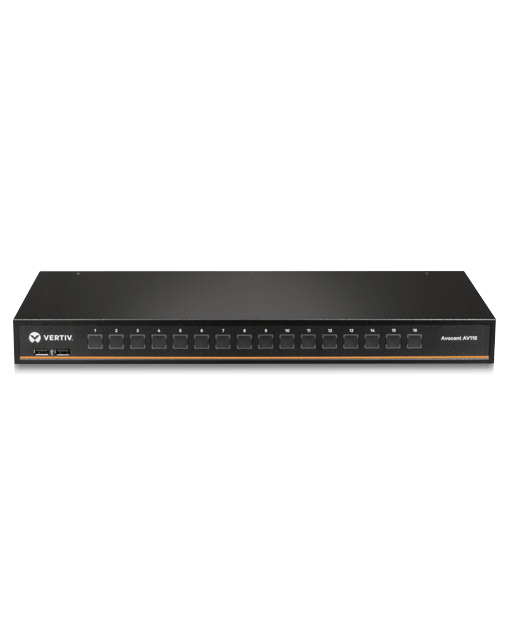

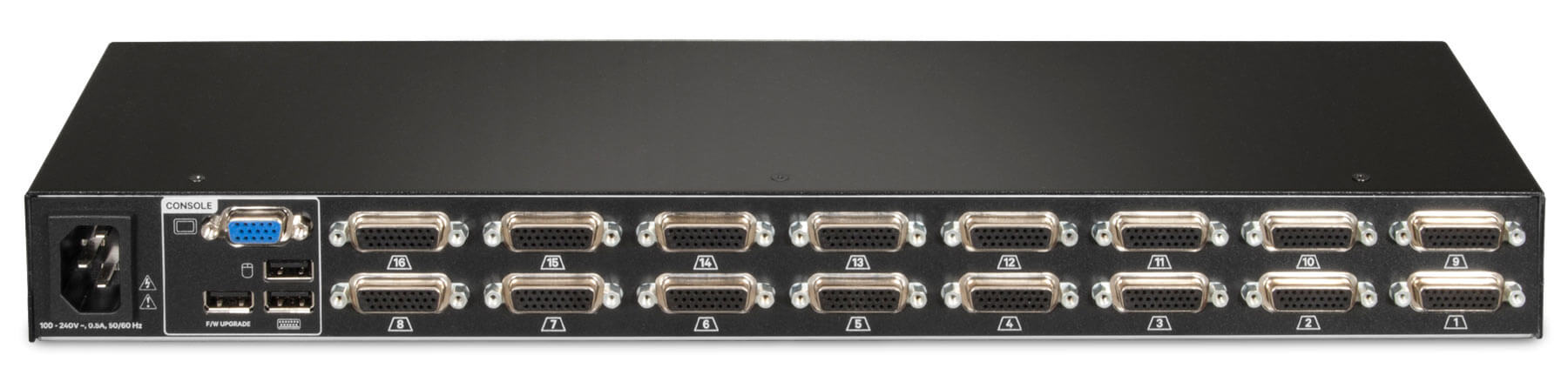

Vertiv Avocent 1x16 with USB, w/OSD, push (touch) button switching, keystroke switching, cascade support, internal power supply KVM switch

Vertiv Avocent 1x16 with USB, w/OSD, push (touch) button switching, keystroke switching, cascade support, internal power supply KVM switch

Model AV116-400EAN 636430084954

42 specifications
  • Weight1.63 kg
  • ColourBlack
  • Number of computers controlled16
  • Ethernet LANNo
  • Maximum resolution2048 x 1536 pixels
  • Rack capacity1U
See all specifications

Overview

Weight
1.63 kg
Colour
Black
Number of computers controlled
16
Ethernet LAN
No
Maximum resolution
2048 x 1536 pixels
Rack capacity
1U
Brand
Vertiv
Category
KVM Switch
Model
AV116-400
Part number
AV116-400
EAN / UPC
636430084954, 5706998294197, 7612205057661
Also known as
Vertiv Avocent 1x16 with USB, w/OSD, push (touch) button switching, keystroke switching, cascade support, internal power supply KVM switch

Specifications

42 specifications in 11 groups

Ports & interfaces

Number of computers controlled16
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
VGA (D-Sub) ports quantity1
Console USB ports quantity3
Console portsUSB A, VGA (D-Sub)
USB hubNo
USB connector typeUSB Type-A
Audio connectionsNo
DC-in jackNo

Network

Ethernet LANNo

Performance

Maximum resolution2048 x 1536 pixels
Number of users1 user(s)
Firmware upgradeableYes

Design

Rack capacity1U
Rack mountingYes
Product colourBlack
Housing materialMetal
CascadableYes
LED indicatorsYes
Display switch buttonYes
Push buttonYes
Hot keysYes
Cable lock slotNo
CertificationUL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, RCM, BSMI

Display

Built-in displayNo
On Screen Display (OSD)Yes

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)10 W

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)20 - 85%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Weight1.63 kg

Packaging data

Package typeBox

Packaging content

Cables includedAC, VGA
Quick installation guideYes
Rack mount kitYes

Logistics data

Harmonized System (HS) code85176200
