Vertiv Avocent 1x4 KVM switch with USB, push (touch) button switching, keystroke switching, cascade support, internal power supply, includes 4 CBL0170 cables

Vertiv Avocent 1x4 KVM switch with USB, push (touch) button switching, keystroke switching, cascade support, internal power supply, includes 4 CBL0170 cables

Model AV104BND4-400EAN 636430085838

52 specifications
  • Weight1.63 kg
  • ColourBlack
  • Number of computers controlled4
  • Ethernet LANNo
  • Maximum resolution2048 x 1536 pixels
  • Rack capacity1U
See all specifications

Overview

Weight
1.63 kg
Colour
Black
Number of computers controlled
4
Ethernet LAN
No
Maximum resolution
2048 x 1536 pixels
Rack capacity
1U
Brand
Vertiv
Category
KVM Switch
Model
AV104BND4-400
Part number
AV104BND4-400
EAN / UPC
636430085838, 7612205058651
Also known as
Vertiv Avocent 1x4 KVM switch with USB, push (touch) button switching, keystroke switching, cascade support, internal power supply, includes 4 CBL0170 cables

Specifications

52 specifications in 11 groups

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
Display connectionYes
VGA (D-Sub) ports quantity1
Console USB ports quantity3
Console portsUSB A, VGA (D-Sub)
USB hubNo
USB 2.0 ports quantity3
USB connector typeUSB Type-A
PS/2 ports quantity0
Serial ports quantity0
Audio connectionsNo
Console portVGA
DC-in jackNo

Network

Ethernet LANNo

Performance

Maximum resolution2048 x 1536 pixels
Number of users1 user(s)
Firmware upgradeableYes

Design

Rack capacity1U
Rack mountingYes
Product colourBlack
Housing materialMetal
Maximum cable length3.6 m
Integrated cablesYes
CascadableYes
LED indicatorsYes
Display switch buttonYes
Push buttonYes
Hot keysYes
Cable lock slotNo
CertificationUL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, RCM, BSMI

Display

Built-in displayNo
On Screen Display (OSD)No

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)10 W

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)20 - 85%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Width432 mm
Depth120.7 mm
Height43.7 mm
Weight1.63 kg

Packaging data

Package typeBox

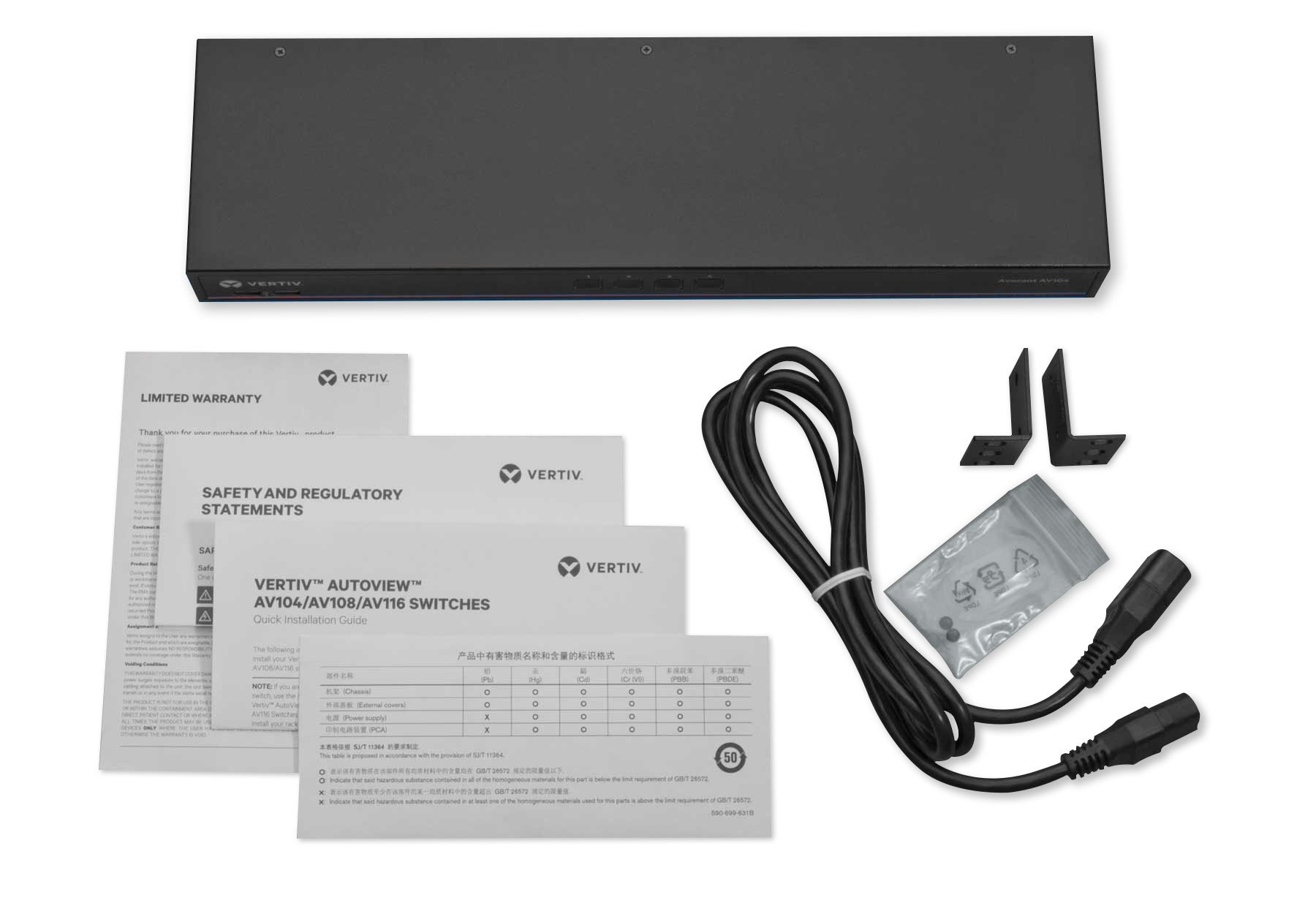

Packaging content

Cables includedAC, VGA
Quick installation guideYes
Rack mount kitYes

Logistics data

Harmonized System (HS) code85176200
