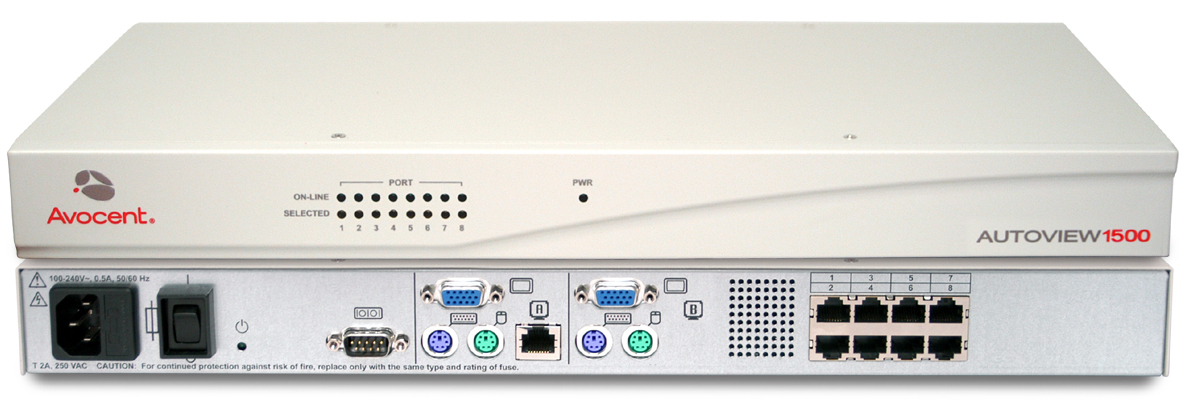

AutoView 1500 KVM Switch
Model AutoView 1500 KVM SwitchPart no. AV1500-202
14 specifications
- Weight3.6 kg
- ColourWhite
- Number of computers controlled8
- Maximum resolution1600 x 1280 pixels
- Operating temperature (T-T)10 - 50 °C
Overview
- Weight
- 3.6 kg
- Colour
- White
- Number of computers controlled
- 8
- Maximum resolution
- 1600 x 1280 pixels
- Operating temperature (T-T)
- 10 - 50 °C
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- AutoView 1500 KVM Switch
- Part numbers
- AV1500-202, AV1500-201
- Also known as
- Vertiv AutoView 1500 KVM switch White
Specifications
14 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1600 x 1280 pixels |
| Video bandwidth | 75 Hz |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.6 kg |
Other features
| Specification | Value |
|---|---|
| Compatibility | Microsoft IntelliMouse, Microsoft Explorer, IBM Scrollpoint, Logitech Mouseman, Logitech Trackman, Logitech Marble FX, Kensington |
| Compliance industry standards | UL FCC Class A, cUL, ICES Class A, CE, N, GS, IRAM, GOST, VCCI, Class A, MIC Class A, C-Tick |
| Dimensions (WxDxH) | 431.8 x 279.4 x 44.5 mm |
| Ports quantity | 8 |
| I/O ports | 4x PS/2 8x RJ45 2x VGA |
