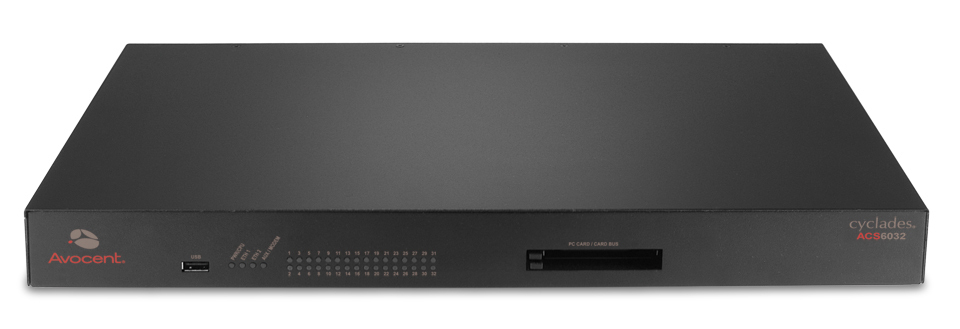

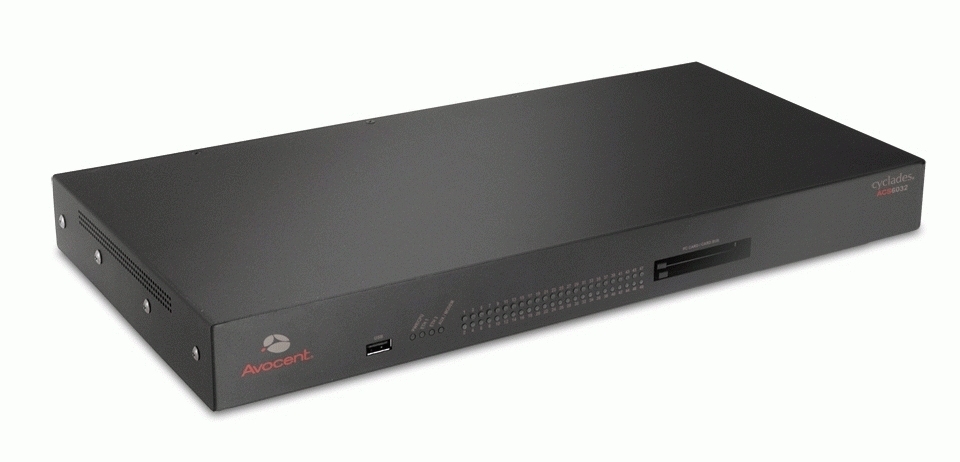

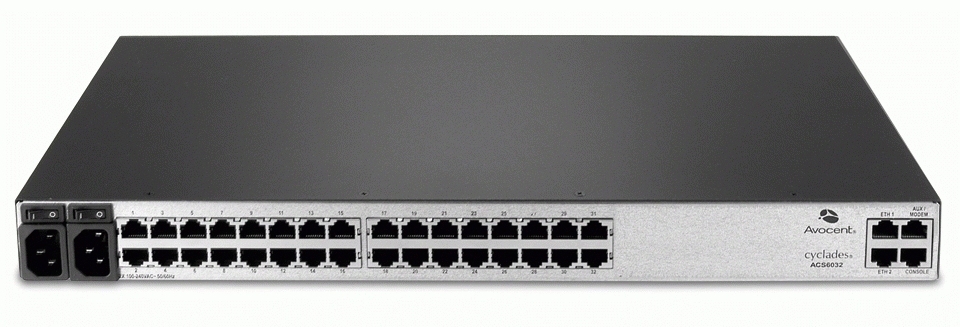

Vertiv ACS 6032
Model ACS 6032Part no. ACS6032MDAC-202EAN 636430049441
16 specifications
- ConnectivityWired
- ColourBlack
- Operating temperature (T-T)0 - 50 °C
Overview
- Connectivity
- Wired
- Colour
- Black
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- Vertiv
- Category
- KVM Switch
- Model
- ACS 6032
- Part numbers
- ACS6032MDAC-202, ACS6032DAC-201, ACS6032MDAC-201, ACS6032DAC-202, ACS6032SDC, ACS6032DDC +7 more
- EAN / UPC
- 636430049441, 132017885254, 636430046716, 6364300467166 +7 more
- Also known as
- Vertiv Avocent ACS 6032 KVM switch Black
Specifications
16 specifications in 3 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Certification | - FCC Class A - CE Class A - ICES-003 - VCCI - C-Tick - A-Tick |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Power supply type | dual |
| Compatible operating systems | Linux |
| Dimensions (WxDxH) | 210 x 112.5 x 60 mm |
| Management protocols | SNMP, Telnet, HTTP, HTTPS |
| Ports quantity | 32 |
| Power requirements | 100–240 VAC, 50/60 Hz |
| Safety | UL, cUL, EN-60950, CB |
| I/O ports | 32x RS-232 - RJ-45 1x USB 2.0 2x PC Card/CardBus |
| Weight (imperial) | 2.99 kg (6.6 lbs) |
