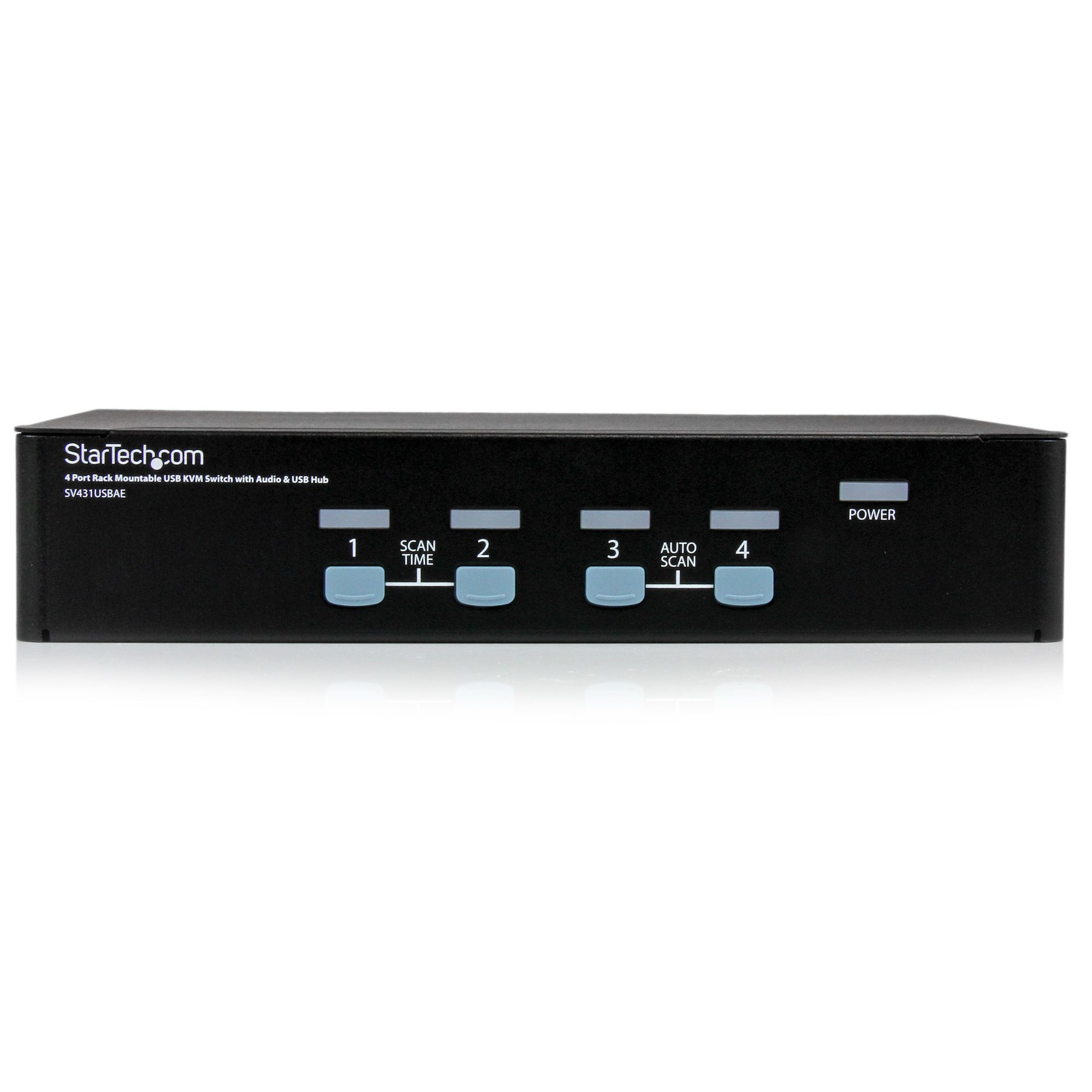

4 Port Rack Mountable USB KVM Switch with Audio & USB Hub
Model SV431USBAEPart no. SV431USBAEGBEAN 065030830768
43 specifications
- Weight1 kg
- ColourBlack
- Number of computers controlled4
- Maximum resolution1920 x 1440 pixels
- Rack capacity1U
- Built-in displayNo
Overview
- Weight
- 1 kg
- Colour
- Black
- Number of computers controlled
- 4
- Maximum resolution
- 1920 x 1440 pixels
- Rack capacity
- 1U
- Built-in display
- No
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- SV431USBAE
- Part number
- SV431USBAEGB
- EAN / UPC
- 065030830768, 5051964006718
- Also known as
- StarTech.com 4 Port Rack Mountable USB KVM Switch with Audio & USB Hub
Specifications
43 specifications in 11 groups

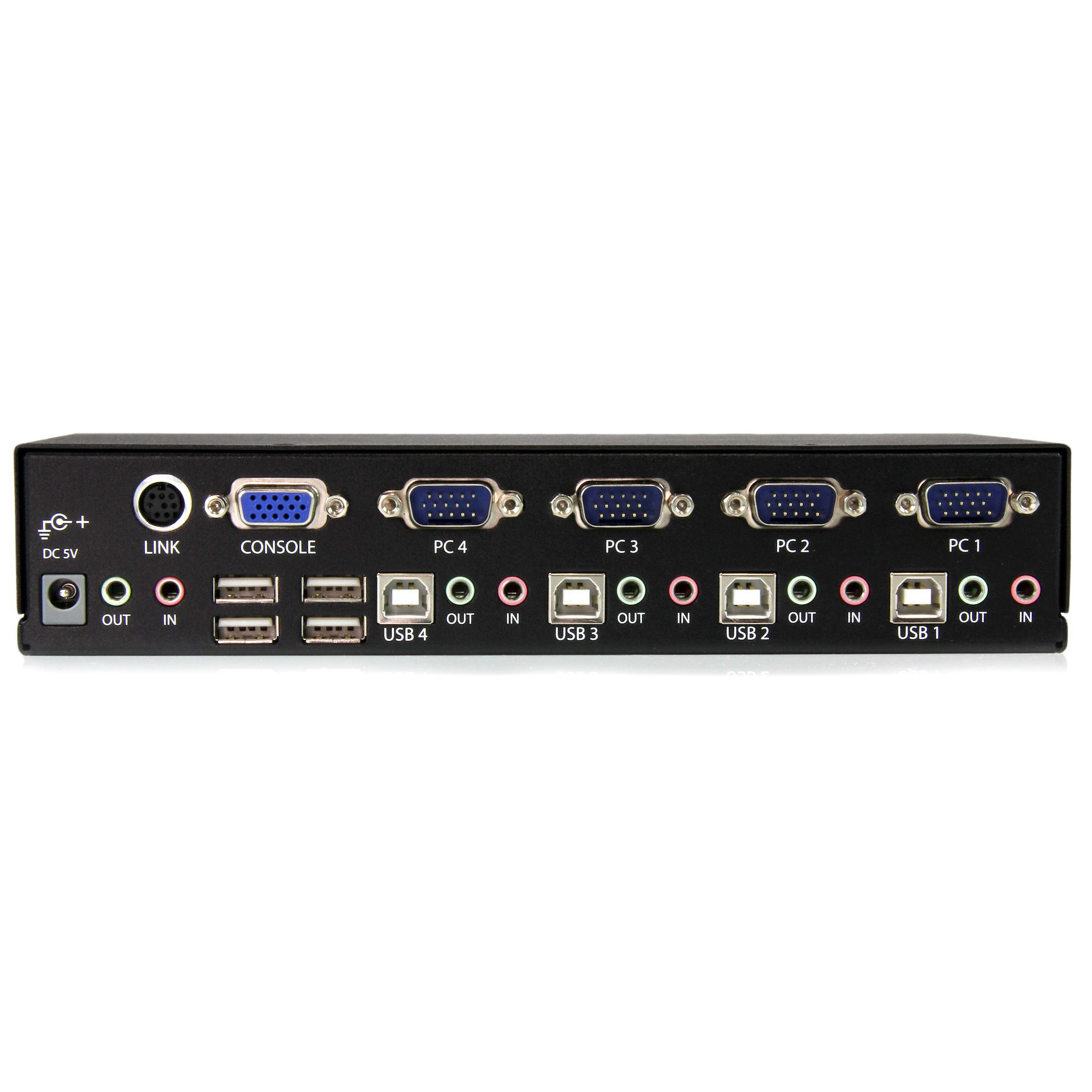

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Console ports | 3.5mm headphone, 3.5mm mic |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 4 |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1440 pixels |
| Daisy chain | No |
| Number of users | 1 user(s) |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Steel |
| Hot keys | No |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 0.4 A |
| Output voltage | 5 V |
| Output current | 2 A |
| External power adapter | Yes |
| Power consumption (typical) | 10 W |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 130 mm |
| Height | 44 mm |
| Weight | 1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 90 mm |
| Package depth | 410 mm |
| Package height | 215 mm |
| Package weight | 1.7 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Rubber feet | Yes |
Other features
| Specification | Value |
|---|---|
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 555 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 248 mm |
| Products per master (outer) case | 6 pc(s) |
