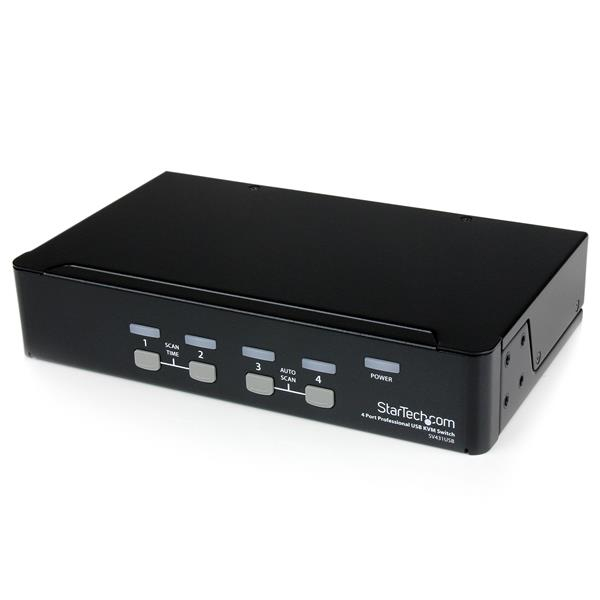

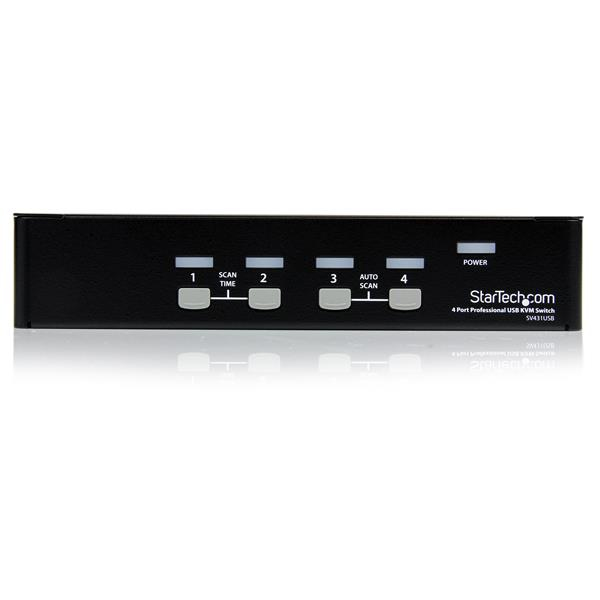

4 Port Professional VGA USB KVM Switch with Hub - TAA
Model SV431USBEAN 5051749380651
44 specifications
- Weight988 g
- ColourBlack
- Number of computers controlled4
- Maximum resolution1920 x 1440 pixels
- Rack capacity1U
- Built-in displayNo
Overview
- Weight
- 988 g
- Colour
- Black
- Number of computers controlled
- 4
- Maximum resolution
- 1920 x 1440 pixels
- Rack capacity
- 1U
- Built-in display
- No
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- SV431USB
- Part number
- SV431USB
- EAN / UPC
- 5051749380651, 065030787192, 065030811064, 087343923364 +11 more
- Also known as
- StarTech.com 4 Port Professional VGA USB KVM Switch with Hub - TAA
Specifications
44 specifications in 11 groups

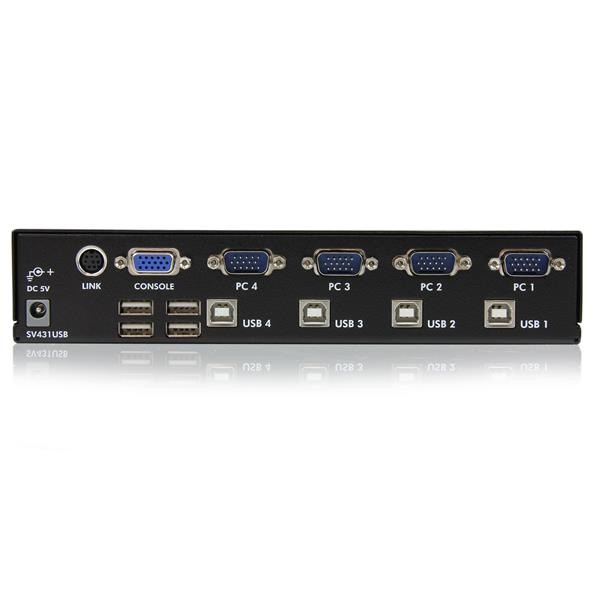

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Console USB ports quantity | 4 |
| Console ports | USB A, VGA (D-Sub) |
| Audio connections | No |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1440 pixels |
| Scan interval | 3,8,15,30 s |
| Daisy chain | No |
| Number of users | 1 user(s) |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Steel |
| Maximum cable length | 5 m |
| Hot keys | No |
| Mean time between failures (MTBF) | 82506 h |
| Certification | CE, FCC, REACH, TAA, cUR |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 110-240 V |
| Input current | 0.4 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power plug type | Type N |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 988 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 195 mm |
| Package depth | 296 mm |
| Package height | 74 mm |
| Package weight | 1.3 kg |

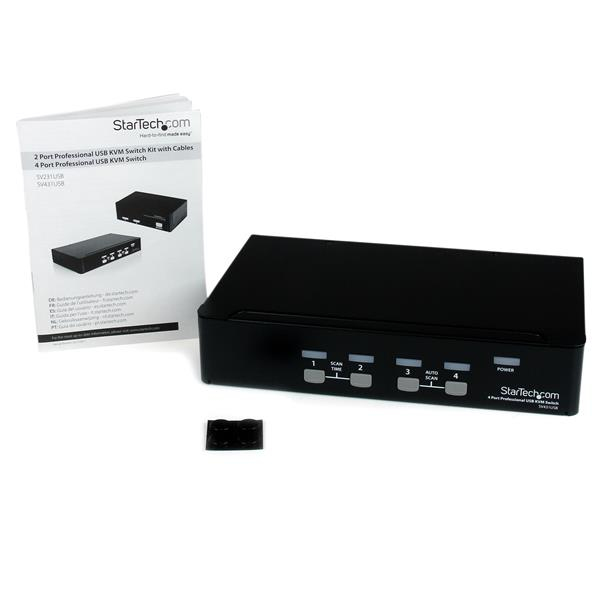

Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Rubber feet | Yes |
Other features
| Specification | Value |
|---|---|
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 455 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 330 mm |
| Products per master (outer) case | 12 pc(s) |
