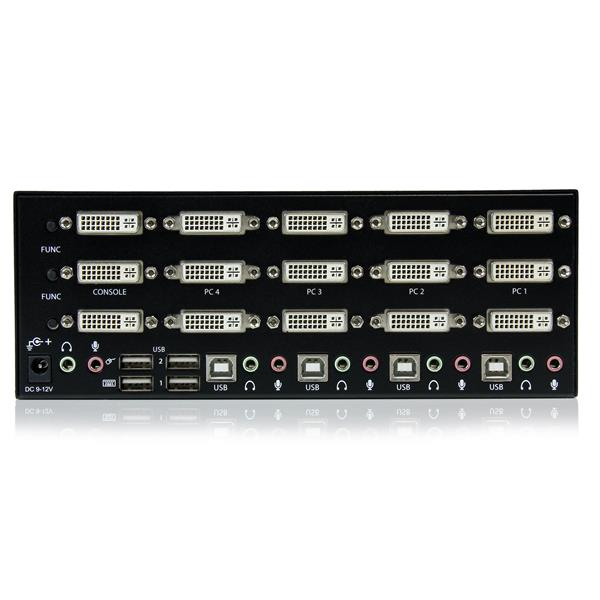

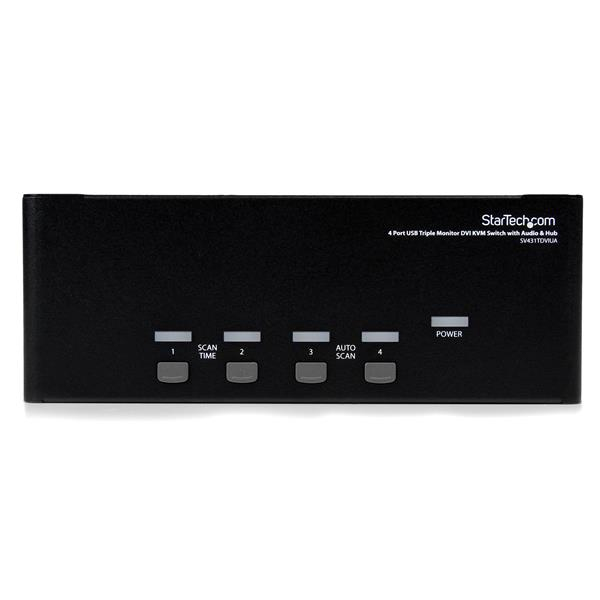

StarTech.com 4 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub

StarTech.com 4 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub

Model SV431TDVIUAEAN 5054484468561

48 specifications

Weight1.5 kg
ColourBlack
Number of computers controlled4
Maximum digital resolution1920 x 1200 pixels
Rack mountingYes
Built-in displayNo

See all specifications

Overview

Weight: 1.5 kg
Colour: Black
Number of computers controlled: 4
Maximum digital resolution: 1920 x 1200 pixels
Rack mounting: Yes
Built-in display: No

Brand: StarTech.com
Category: KVM Switch
Model: SV431TDVIUA
Part number: SV431TDVIUA
EAN / UPC: 5054484468561, 065030847476, 132017860039, 132018029541 +7 more
Also known as: StarTech.com 4 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub

Specifications

48 specifications in 12 groups

Ports & interfaces

Specification	Value
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
Console USB ports quantity	4
Console ports	3.5mm headphone, 3.5mm mic, USB A
Audio connections	Yes
Headphone outputs	4
Number of microphone inputs	4
DC-in jack	Yes

Performance

Specification	Value
Maximum digital resolution	1920 x 1200 pixels
Maximum resolution	1920 x 1200 pixels
Scan interval	3,8,15,30 s
HDCP	Yes
Daisy chain	No
Number of users	1 user(s)

Design

Specification	Value
Rack mounting	Yes
Product colour	Black
Housing material	Steel
LED indicators	Yes
Hot keys	Yes
Certification	CE, FCC, UL

Display

Specification	Value
Built-in display	No

Power

Specification	Value
Input voltage	110-240 V
Input current	0.8 A
Output voltage	12 V
Output current	1.5 A
Compatible power plug types	EU, UK, US
External power adapter	Yes
Power plug type	Type M

Sustainability

Specification	Value
Compliance certificates	RoHS

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions

Specification	Value
Width	219 mm
Depth	137 mm
Height	81 mm
Weight	1.5 kg

Packaging data

Specification	Value
Package width	272 mm
Package depth	297 mm
Package height	108 mm
Package weight	2.2 kg

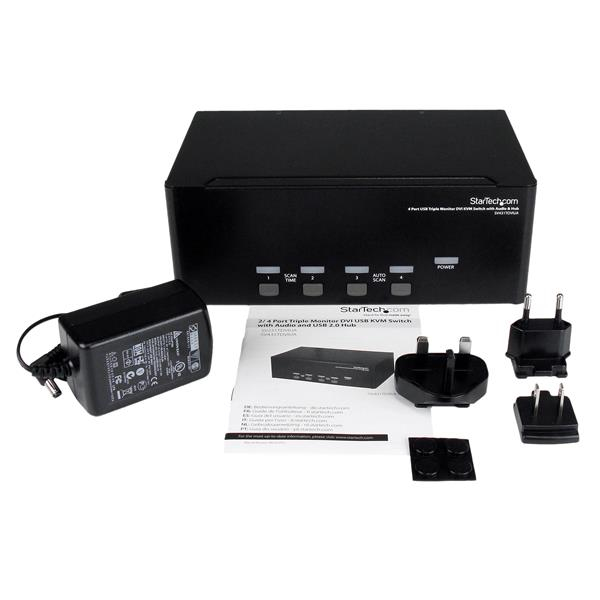

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Rubber feet	Yes

Other features

Specification	Value
Audio support	Yes
IP control	No

Logistics data

Specification	Value
Harmonized System (HS) code	85176200
