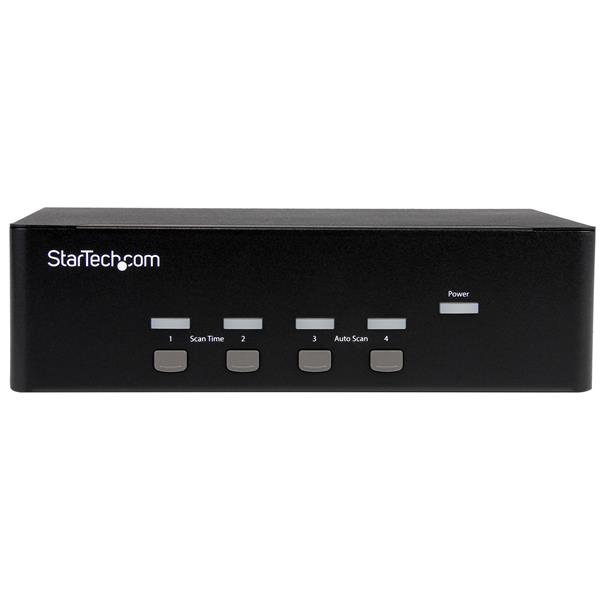

4-port KVM Switch with Dual VGA - USB 2.0
Model SV431DVGAU2AEAN 065030860642
43 specifications
- Weight1.24 kg
- ColourBlack
- Number of computers controlled4
- Maximum analog resolution1920 x 1200 pixels
- Built-in displayNo
- Input voltage110-240 V
Overview
- Weight
- 1.24 kg
- Colour
- Black
- Number of computers controlled
- 4
- Maximum analog resolution
- 1920 x 1200 pixels
- Built-in display
- No
- Input voltage
- 110-240 V
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- SV431DVGAU2A
- Part number
- SV431DVGAU2A
- EAN / UPC
- 065030860642, 4058829179977, 5054629822531, 7426700222253
- Also known as
- StarTech.com 4-port KVM Switch with Dual VGA - USB 2.0
Specifications
43 specifications in 12 groups

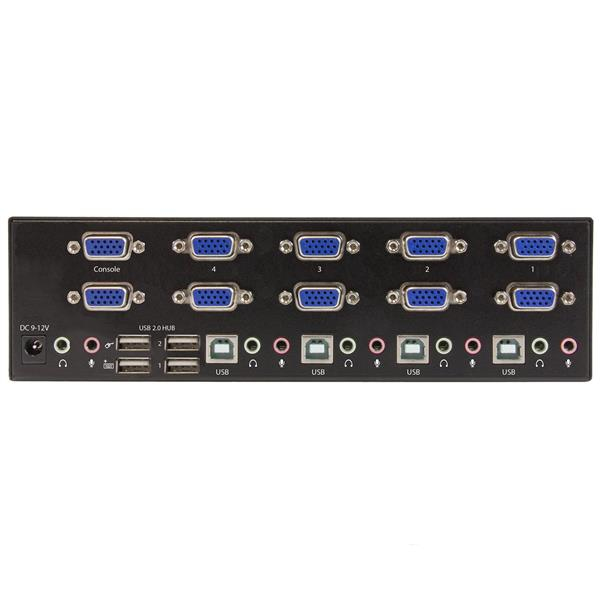

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, USB A, VGA (D-Sub) |
| Audio connections | Yes |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum analog resolution | 1920 x 1200 pixels |
| Maximum resolution | 1920 x 1200 pixels |
| Daisy chain | No |
| Number of users | 1 user(s) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Certification | CE, FCC |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 110-240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Compatible power plug types | AU, EU, UK, US |
| External power adapter | Yes |
| Power plug type | Type M |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 135 mm |
| Depth | 130 mm |
| Height | 60 mm |
| Weight | 1.24 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 255 mm |
| Package depth | 330 mm |
| Package height | 28 mm |
| Package weight | 1.78 kg |

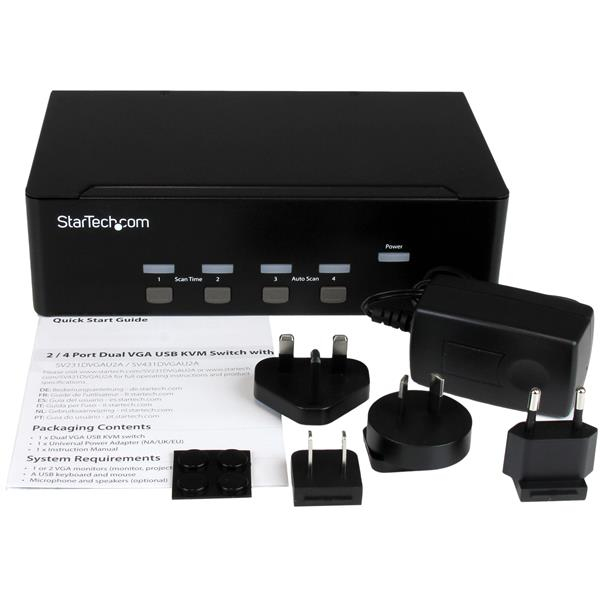

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Audio support | Yes |
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
