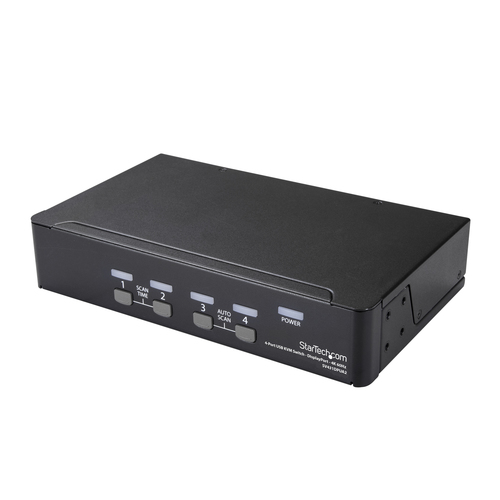

4 Port DisplayPort KVM Switch - 4K
60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio - Dell, HP, Appl
Model SV431DPUA2EAN 065030826372
59 specifications
- Weight1 kg
- ColourBlack
- Number of computers controlled4
- Ethernet LANNo
- HD type4K Ultra HD
- Rack capacity1U
Overview
- Weight
- 1 kg
- Colour
- Black
- Number of computers controlled
- 4
- Ethernet LAN
- No
- HD type
- 4K Ultra HD
- Rack capacity
- 1U
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- SV431DPUA2
- Part number
- SV431DPUA2
- EAN / UPC
- 065030826372, 650308263722
- Also known as
- StarTech.com 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio - Dell, HP, Appl
Specifications
59 specifications in 13 groups

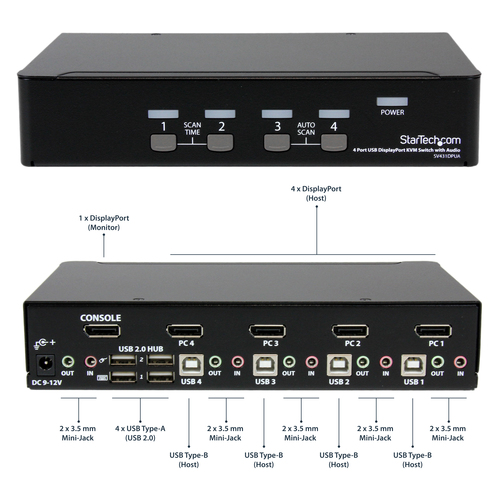

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 5 |
| USB 2.0 Type-B ports quantity | 4 |
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Audio connections | Yes |
| Headphone outputs | 5 |
| Number of microphone inputs | 5 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 0.48 Gbit/s |
| Scan interval | 3,8,15,30 s |
| Plug and Play | Yes |
| Daisy chain | No |
| Number of users | 1 user(s) |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 138327 h |
| Certification | CE, FCC, TAA, REACH |
Display
| Specification | Value |
|---|---|
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Compatible power plug types | AU, EU, JP, UK, US |
| External power adapter | Yes |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 40% |

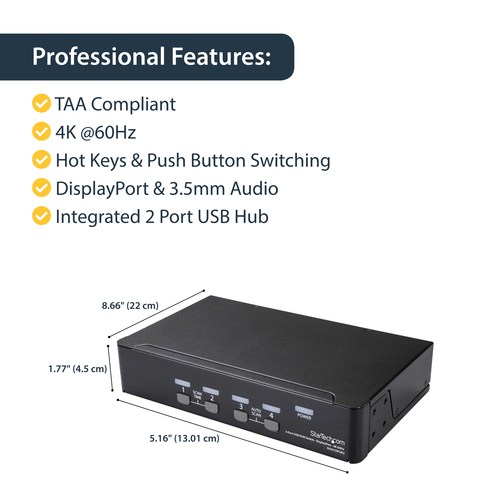

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 131 mm |
| Depth | 220 mm |
| Height | 45 mm |
| Weight | 1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 412 mm |
| Package depth | 216 mm |
| Package height | 89 mm |
| Package weight | 1.6 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Rubber feet | Yes |
Other features
| Specification | Value |
|---|---|
| Audio support | Yes |
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 551 mm |
| Master (outer) case length | 436 mm |
| Master (outer) case height | 257 mm |
| Products per master (outer) case | 6 pc(s) |
