4-Port DisplayPort KVM Switch - USB 3.0 - 4K
30Hz - TAA
Model SV431DPU3A2EAN 065030863728
53 specifications
- Weight1.06 kg
- ColourBlack
- Number of computers controlled4
- Ethernet LANNo
- HD type4K Ultra HD
- Rack mountingYes
Overview
- Weight
- 1.06 kg
- Colour
- Black
- Number of computers controlled
- 4
- Ethernet LAN
- No
- HD type
- 4K Ultra HD
- Rack mounting
- Yes
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- SV431DPU3A2
- Part number
- SV431DPU3A2
- EAN / UPC
- 065030863728, 650308637288, 5057103103607
- Also known as
- StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz - TAA
Specifications
53 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 3 |
| USB connector type | USB Type-A |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Audio connections | Yes |
| Headphone outputs | 4 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| Audio channels | 2.0 |
| Maximum operating distance | 10 m |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Link, Power |
| Hot keys | Yes |
| Certification | CE, FCC, UL, PSE |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 100-240 V |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Compatible power plug types | AU, EU, UK, US |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 220 mm |
| Height | 43 mm |
| Weight | 1.06 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 250 mm |
| Package depth | 297 mm |
| Package height | 88 mm |
| Package weight | 1.61 kg |

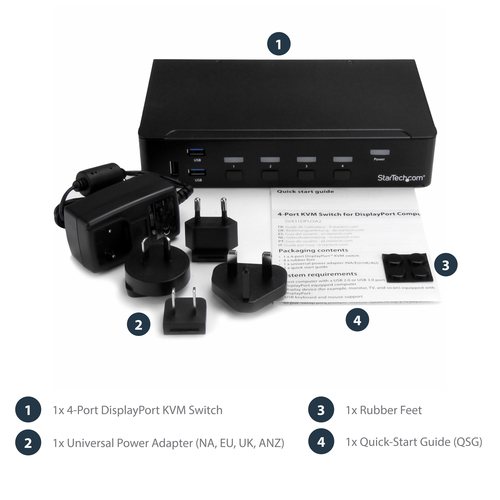

Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Rubber feet | Yes |
Other features
| Specification | Value |
|---|---|
| Audio support | Yes |
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 521 mm |
| Master (outer) case length | 322 mm |
| Master (outer) case height | 296 mm |
| Products per master (outer) case | 6 pc(s) |
