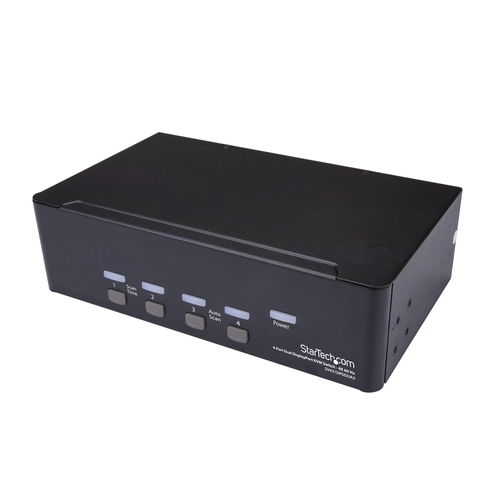

4-Port Dual DisplayPort KVM Switch - 4K
60Hz - TAA
Model SV431DPDDUA2EAN 065030867863
55 specifications
- Weight1.2 kg
- ColourBlack
- Number of computers controlled4
- HD type4K Ultra HD
- Rack capacity2U
- Built-in displayNo
Overview
- Weight
- 1.2 kg
- Colour
- Black
- Number of computers controlled
- 4
- HD type
- 4K Ultra HD
- Rack capacity
- 2U
- Built-in display
- No
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- SV431DPDDUA2
- Part number
- SV431DPDDUA2
- EAN / UPC
- 065030867863, 650308678632
- Also known as
- StarTech.com 4-Port Dual DisplayPort KVM Switch - 4K 60Hz - TAA
Specifications
55 specifications in 12 groups

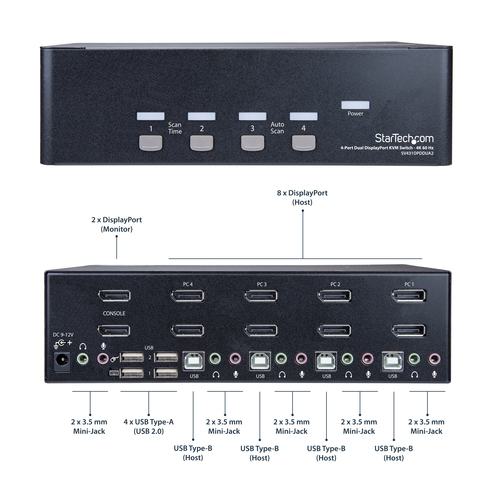

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 10 |
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB hub | Yes |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 0.5 Gbit/s |
| Scan interval | 3,8,15,30 s |
| Daisy chain | No |
Design
| Specification | Value |
|---|---|
| Rack capacity | 2U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Power |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 142000 h |
| Certification | CE, FCC, TAA, REACH |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Compatible power plug types | AU, EU, JP, UK, US |
| External power adapter | Yes |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|

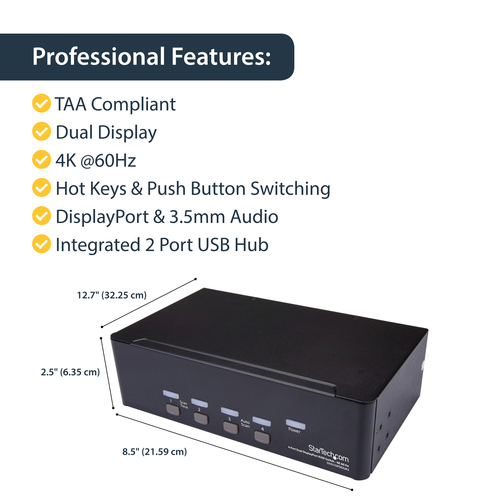

| Width | 216 mm |
| Depth | 127 mm |
| Height | 63 mm |
| Weight | 1.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 244 mm |
| Package depth | 296 mm |
| Package height | 86 mm |
| Package weight | 1.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Rubber feet | Yes |
Other features
| Specification | Value |
|---|---|
| Audio support | Yes |
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 514 mm |
| Master (outer) case length | 321 mm |
| Master (outer) case height | 299 mm |
| Products per master (outer) case | 6 pc(s) |
